PLC Control Fully Automatic Crimped Wire Mesh Weaving Machine For Welded Mesh Fence Panel

China PLC Control Fully Automatic Crimped Wire Mesh Weaving Machine For Welded Mesh Fence Panel supplier
PLC Control Fully Automatic Crimped Wire Mesh Weaving Machine For Welded Mesh Fence Panel supplier PLC Control Fully Automatic Crimped Wire Mesh Weaving Machine For Welded Mesh Fence Panel supplier PLC Control Fully Automatic Crimped Wire Mesh Weaving Machine For Welded Mesh Fence Panel supplier PLC Control Fully Automatic Crimped Wire Mesh Weaving Machine For Welded Mesh Fence Panel supplier PLC Control Fully Automatic Crimped Wire Mesh Weaving Machine For Welded Mesh Fence Panel supplier

Large Image :  PLC Control Fully Automatic Crimped Wire Mesh Weaving Machine For Welded Mesh Fence Panel

Product Details:

Place of Origin: Heibei, China
Brand Name: Qijie
Certification: ISO
Model Number: QJ-03

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD 12000 -- 25000
Delivery Time: 20-25 days
Payment Terms: TT
Supply Ability: 8 set/month
Contact Now
Detailed Product Description
Hole Shape: Square, Rectangle Width: 1-6m
Hole Size: 5cm Material: Black Or Galvanized Wire
Operation: Fully Automatic Control System: PLC Touch Screen
Voltage: 220V/380V/415V/440V Welding Head Material: High Chromium Copper

Fence Mesh Panel Welding Machine

PLC Control Fully Automatic Crimped Wire Mesh Weaving Machine For Welded Mesh Fence Panel

1.Feeding material:

The warp wire and weft wire are straightened and cutted from coil wire material ,realized by auto straightening and cutting machine.

The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system
2.Welding mesh panel system:

The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Panasonic ( Japan ) PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet
3.Drawing mesh panel system:

Panasonic ( Japan ) servo motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.



Name Parament Unit
Wire diameter 3-6 mm
Width of mesh 2500 mm
Weft Wire Distance 50-200 mm
Warp Wire Distance 50-200 mm
welded points 48 points
Welding frequency 40-60 times/min
Weight 4.5 ton
Rated capacity 6*125 kva
Rated voltage 380/420 V
Need Worker 2-3 person
Warp Wire Straightened Cut Wire
Weft wire Straightened Cut Wire
Type of production panel





Applications

Application materials : welding machine is good at welding various metal wire : stainless steel wire , low carbon steel wire , round steel bar, ribbed steel bar

Application mesh panel : welded mesh panel widely used as reinforce mesh panel for building, construction ;railway wire mesh fence, security fence and others.



Welded fence mesh panel welding machine

Fence mesh panel welding machine, also called security fence machine, anti-climb fence welding

machine, used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.

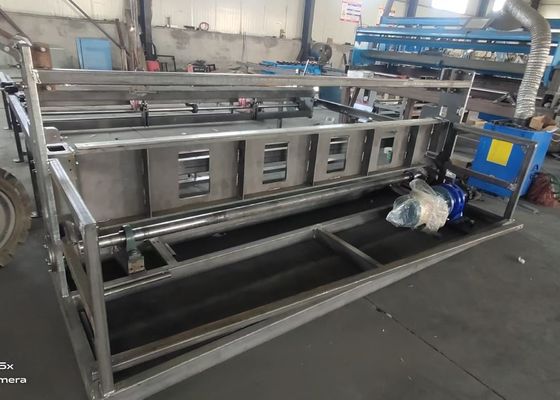

Machine Image

Panasonic, Schneider, ABB, SMC, Igus electric components.
Touch screen interface.
PLC control of cross wire space and welding current.
Pre-straightened & pre-cut wires.
Panasonic servo technology for mesh pulling.
Pure welding electrodes, upper Φ20*120mm, lower 20*20*20mm.
Water-cooling system.

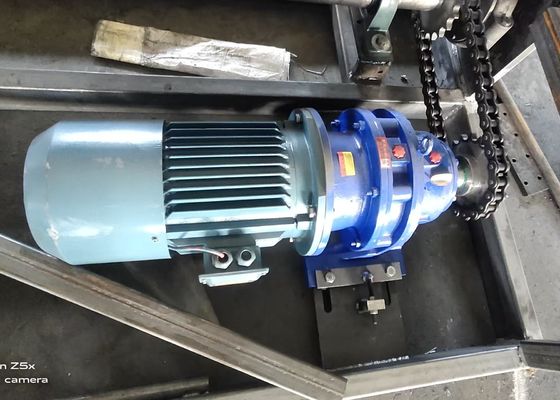

Brake motor & reducer connect the principal axis directly.
High precision mesh


Fence Mesh Welding Machine Function features and advantages:
1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit. The input panel has two types touch screen and button, more intelligent and rational, once pressing, and separate welding.
2. The welding power is electric power. The cross wire is fed from hopper driven by stepper motor, and the line wire is fed by brake motor driven car and the mesh is pulled by the stepper motor driven car.
3. The cross and the line wires are both pre-straightened and pre-cut by the special straightening and cutting machine.
4. The biggest advantage of the machine is that there is different cross spacing in the same mesh.
5.The welding electrodes and transformer are equipped with the water cooling system,thus prolong the machine life and working time.
