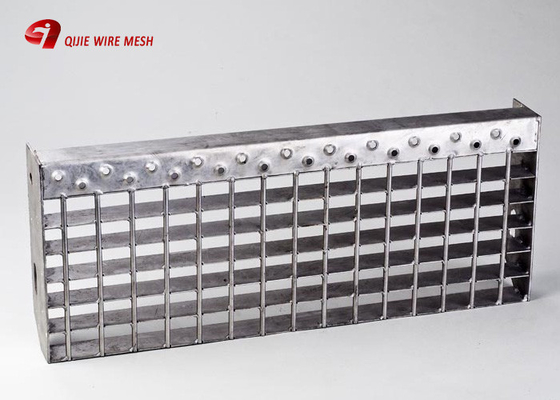

Galvanized Welded Steel Bar Grating Stair Steps Meet DIN 24531 Standard

China Galvanized Welded Steel Bar Grating Stair Steps Meet DIN 24531 Standard supplier
Galvanized Welded Steel Bar Grating Stair Steps Meet DIN 24531 Standard supplier Galvanized Welded Steel Bar Grating Stair Steps Meet DIN 24531 Standard supplier Galvanized Welded Steel Bar Grating Stair Steps Meet DIN 24531 Standard supplier Galvanized Welded Steel Bar Grating Stair Steps Meet DIN 24531 Standard supplier Galvanized Welded Steel Bar Grating Stair Steps Meet DIN 24531 Standard supplier

Large Image :  Galvanized Welded Steel Bar Grating Stair Steps Meet DIN 24531 Standard

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-711

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: Steel palletized
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 5000 pcs one month
Contact Now
Detailed Product Description
Material: Mild Steel Sheet Pitch: 40 X 100 Mm
Type: 25 X 3.0 Mm Surface Finish: Galvanized
Surface: Serrated Size: 1.8 X 6.0 M
Product Name: Grating Stairs
High Light:

galvanised grating

,

galvanised steel grating

Galvanized Welded Steel Bar Grating Stair steps meet DIN 24531 Standard


Product descriptions

  • Stair step is made up steel grating according to DIN 24537and treading section, which is reinforced by special profile with anti-slip arrangement.
  • Stair steps meet the requirements of DIN 24531 Standard
  • Stair steps are fixed into staircase structure on step sides made from flats by 2 x 2 screws M12 (please see the picture)

1. material: low carbon steel,mid steel or stainless steel;
2. Surface treatment: nature, painting or hot dip galvanized;
3. Specification of steel grating: plain type (may be omitted in the symbol of steel grating), serrated type and I-shape type;
4. Tolerance of hot dip galvanized steel grating: the allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm; the non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar; cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm;
5. steel grating application: used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department stores, hospitals,amusement parks,etc..


drawing of grating stairs

Material

  • Mild steel q. DD11
  • *Stainless steel q. AISI 304
l s h x t n (kg)
600 240 30 x 2 120 4,9
270 30 x 2 150 5,4
305 30 x 2 185 5,9
800 240 30 x 2 120 6,1
270 30 x 2 150 6,7
305 30 x 2 185 7,3
1000 240 30 x 2 120 7,3
270 30 x 2 150 8,0
305 30 x 2 185 8,7
1200 240 30 x 3 120 10,9
270 30 x 3 150 11,6
305 30 x 3 185 12,6
1200 240 40 x 2 120 9,9
270 40 x 2 150 10,9
305 40 x 2 185 11,9

Step dimensions can be manufactured due to Customer requirements. Step grating may be made with different agreed mesh size and type of upper side (smooth or with anti-slip arrangement). Stair steps also can be manufactured with another size of bearing rod.

Any arrangements like cut outs in treading section are not recommended . Spacings between holes for fixing screws may be arranged according to Customer requirement. Stair steps can be supplied in wide variety of lengths.





Feature:

Appearance: simple lines. Silver exterior, modern trends.
Best drainage: leakage area of 83.3%, more than double the cast iron.
Hot-dip galvanizing: rust-proof and strong, maintenance and replacement.
Security design: box with hinged lid and connection, security, safe, easy to open.
Saving investment: large span. When overloaded, the lowest ratio of iron and saves replacement costs stolen, then crushed.
High strength: strength and toughness is much higher than cast iron, can be used for terminals, airports and other large span and heavy load environment.
Specifications and more: meet different environment and loading requirement. Span, the desired size and shape.


Welded Steel Bar Grating-STG0001


Welded Steel Bar Grating-STG0002

Welded Steel Bar Grating-STG0002



Welded Steel Bar Grating-STG0003

Welded Steel Bar Grating-STG0003



Welded Steel Bar Grating-STG0004

Welded Steel Bar Grating-STG0004



Welded Steel Bar Grating-STG0005

Welded Steel Bar Grating-STG0005



Welded Steel Bar Grating-STG0006

Welded Steel Bar Grating-STG0005
