|Hole Shape:||Square, Rectangle||Width:||1-3m|
|Hole Size:||2.5cm-150cm||Material:||Black Or Galvanized Wire|
|Operation:||Fully Automatic||Control System:||PLC Touch Screen|
|Voltage:||220V/380V/415V/440V||Welding Head Material:||High Chromium Copper|

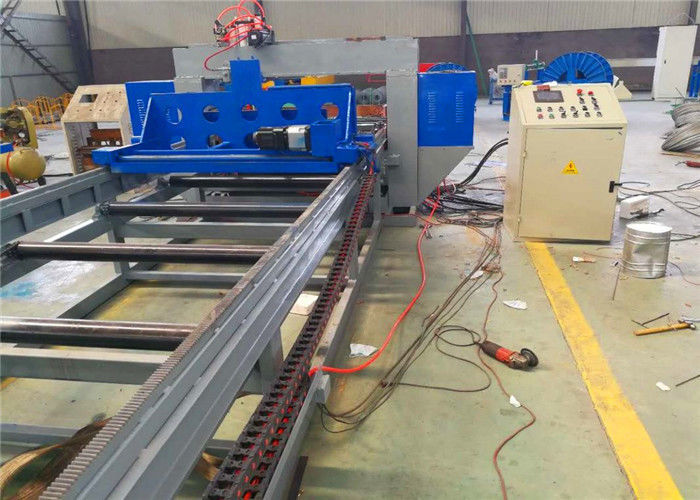

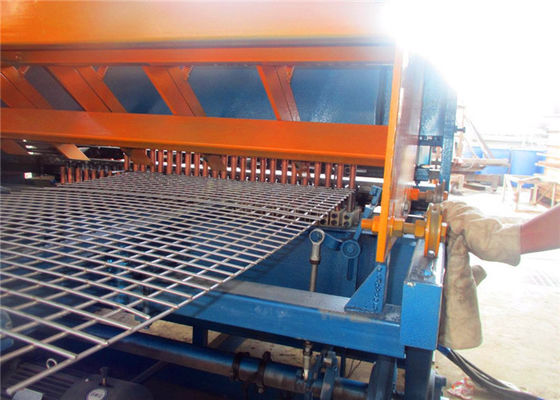

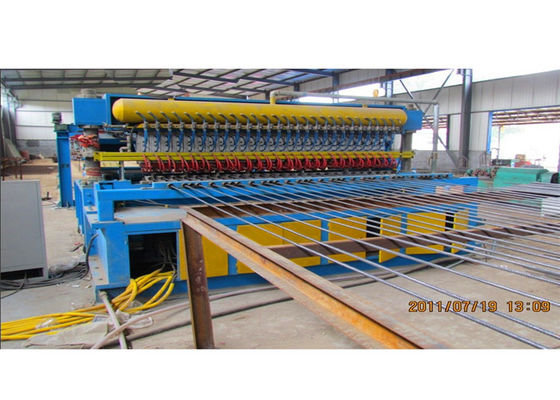

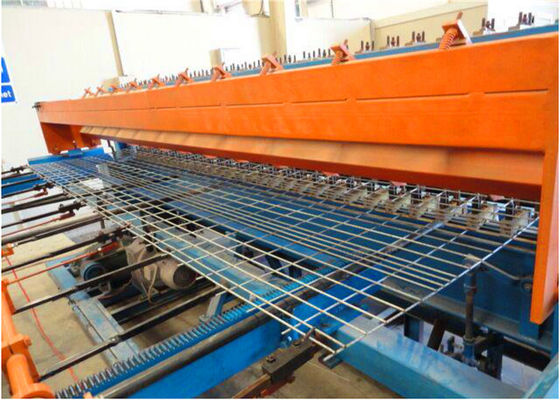

fence mesh welding machine,
wire mesh welding machine
Automatic wire feeding, the use of weft yarn surface positioning device so that network does not need cutting-edge wire loss, sub-sub-welding, to reduce the power loading as well as energy efficient.
Used for the fences, pouring floors, breeding for construction mesh
Welding wire diameter Φ 4-Φ 12(mm)
Welding mesh size 50× 50-200× 200(mm)
Welding width 600-2500(mm)
Speed of welding 60 times/min
Nominal voltage 380V 3 phase electric 50Hz
Nominal power 4KW
Exterior size 2500× 2700× 1500
|Width of mesh||1200-2500mm|
|Weft wire distance||25-200mm|
|Warp wire distance||50-200mm|
|Welding frequency||40-60 times/min|
|Need worker||1-2 person|
|Warp wire||Line disc|
|Weft wire||straightened cut wire|
|Welding points||12-32 points|
Application materials : welding machine is good at welding various metal wire : stainless steel wire , low carbon steel wire , round steel bar, ribbed steel bar
Application mesh panel : welded mesh panel widely used as reinforce mesh panel for building, construction ;railway wire mesh fence, security fence and others.
1,Straightening Automatically and Cutting Machine : two/set
2,Wire Tray :two piceses
Fence Mesh Welding Machine Function features and advantages:
1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit. The input panel has two types touch screen and button, more intelligent and rational, once pressing, and separate welding.
2. The welding power is electric power. The cross wire is fed from hopper driven by stepper motor, and the line wire is fed by brake motor driven car and the mesh is pulled by the stepper motor driven car.
3. The cross and the line wires are both pre-straightened and pre-cut by the special straightening and cutting machine.
4. The biggest advantage of the machine is that there is different cross spacing in the same mesh.
5.The welding electrodes and transformer are equipped with the water cooling system,thus prolong the machine life and working time.
