4 mesh To 500 mesh PLAIN WEAVE wire mesh for filter or sieve or Pharmaceuticals

China 4 mesh To 500 mesh PLAIN WEAVE  wire mesh for filter or sieve or Pharmaceuticals supplier
4 mesh To 500 mesh PLAIN WEAVE  wire mesh for filter or sieve or Pharmaceuticals supplier 4 mesh To 500 mesh PLAIN WEAVE  wire mesh for filter or sieve or Pharmaceuticals supplier 4 mesh To 500 mesh PLAIN WEAVE  wire mesh for filter or sieve or Pharmaceuticals supplier

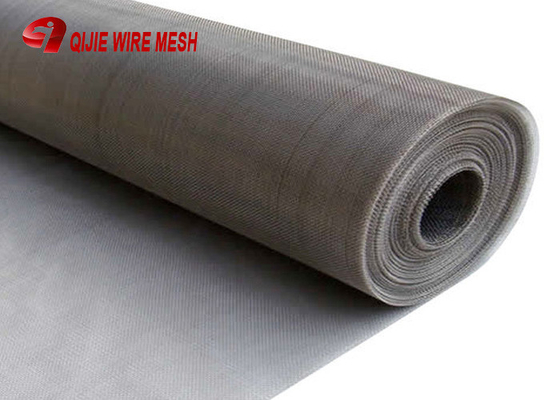

Large Image :  4 mesh To 500 mesh PLAIN WEAVE wire mesh for filter or sieve or Pharmaceuticals

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: PLAIN WEAVE wire mesh

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: pallets or wood case
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 1000 meter per week
Contact Now
Detailed Product Description
Wire Diameter: 2mm Mesh Openning: 1/2" X 1/2"
Size: 1.20m Width X 100m Length Name: PLAIN WEAVE Wire Mesh
Wire Materials:: Stainless Steel Wire General Use:: Screening
Products Name: PLAIN WEAVE Wire Mesh Technique: Woven
Application: Woven Wire Mesh,Filters,Screen,Decorative Wire Mesh,Protecting Mesh Type: Weave Wire Mesh,Wire Cloth,Crimped Wire Mesh,Rope Mesh,Welded Mesh
Material: Stainless Steel Wire,316,304,copper,plain Steel Galvanized Weave Style: Plain Weave,twill Weave,Plain/Twill Weave,plain/twill/dutch Weave,Dutch Weave
Length: 1-30m Usage: Liquid Filter,chmical Industry,oil,filtration,filtering And Sieveing

4 mesh To 500 mesh PLAIN WEAVE wire mesh for filter or sieve or Pharmaceuticals





Plain weave stainless steel wire mesh is made of a weft wire and a warp wire with same diameter woven together. It has excellent resistance to acid, alkali, high temperature and abrasion.

Stainless steel wire cloth can be used for filter, sieve, insect screen and serve in electroplating, mining,oil, plastic, fiber, food, medicine industries.



Square weave is also called plain weave and it is the most commonly used weave.

Each weft wire passes alternatively over and under each warp wire and vice versa. Warp and weft wire diameters are usually the same.

Required parameters to correctly identify a wire mesh are: raw material, width and length of wire mesh, identification n° and wire diameter.
The identification n° of a wire mesh can be signified in these ways:
french n° = number of meshes in a French Inch (mm 27,78)
mesh n° = number of meshes in an English Inch (mm 25,40)
nit = number of meshes in 50 mm

4 mesh To 500 mesh PLAIN WEAVE  wire mesh for filter or sieve or Pharmaceuticals

1.Name: Stainless Steel Wire Mesh, Stainless Steel Mesh Screen, Stainless Steel Filter Wire Mesh, Metal Wire Mesh, Stainless Steel Square Wire Mesh

2.Material: SS wire 201,304,304L,316,316L,431,321etc.

3.Plain weave can be woven up to 400 mesh.

Twill weave can be woven from 30 to 635mesh.

Common Width:0.914m,1.0m,1.22m,1.5m, Special requirement can be customized.



4.Characteristics of Stainless Steel Wire Mesh

Acid-resisting, alkali-resisting and anti-corrosion.

High strength, good tension toughness and abrasion performance, durable in use.

Resistance to high temperature oxidation

Highly polished, no need to do any surface treatment, with convenient and simple maintenance.

5.Wire Mesh Sizes

Specifications of plain weave stainless steel wire mesh:

  • Materials: 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.
  • Hole patterns: square, rectangle.
  • Surface treatment: pickling and passivation, polishing.
  • Packing:
    • Rolls wrapped with craft paper and then put into carton or on pallet;
    • Sheets in wooden boxes or on pallets.
MESH WIRE DIAMETER APERTURE/OPENING %OPEN AREA
INCH MM INCH MM
1x1 .080 2.03 .920 23.37 84.6
2X2 .063 1.60 .437 11.10 76.4
3X3 .054 1.37 .279 7.09 70.1
4X4 .063 1.60 .187 4.75 56.0
4X4 .047 1.19 .203 5.16 65.9
5X5 .041 1.04 .159 4.04 63.2
6X6 .035 .89 .132 3.35 62.7
8X8 .028 .71 .097 2.46 60.2
10X10 .025 .64 .075 1.91 56.3
10X10 .020 .51 .080 2.03 64.0
12X12 .023 .584 .060 1.52 51.8
12X12 .020 .508 .063 1.60 57.2
14X14 .023 .584 .048 1.22 45.2
14X14 .020 .508 .051 1.30 51.0
16X16 .018 .457 .0445 1.13 50.7
18X18 .017 .432 .0386 .98 48.3
20X20 .020 .508 .0300 .76 36.0
20X20 .016 .406 .0340 .86 46.2
24X24 .014 .356 .0277 .70 44.2
30X30 .013 .330 .0203 .52 37.1
30X30 .012 .305 .0213 .54 40.8
30X30 .009 .229 .0243 .62 53.1
35X35 .011 .279 .0176 .45 37.9
40X40 .010 .254 .0150 .38 36.0
50X50 .009 .229 .0110 .28 30.3
50X50 .008 .203 .0120 .31 36.0
60X60 .0075 .191 .0092 .23 30.5
60X60 .007 .178 .0097 .25 33.9
70X70 .0065 .165 .0078 .20 29.8
80X80 .0065 .165 .0060 .15 23.0
80X80 .0055 .140 .0070 .18 31.4
90X90 .005 .127 .0061 .16 30.1
100X100 .0045 .114 .0055 .14 30.3
100X100 .004 .102 .0060 .15 36.0
100X100 .0035 .089 .0065 .17 42.3
110X110 .0040 .1016 .0051 .1295 30.7
120X120 .0037 .0940 .0064 .1168 30.7
150X150 .0026 .0660 .0041 .1041 37.4
160X160 .0025 .0635 .0038 .0965 36.4
180X180 .0023 .0584 .0033 .0838 34.7
200X200 .0021 .0533 .0029 .0737 33.6
250X250 .0016 .0406 .0024 .0610 36.0
270X270 .0016 .0406 .0021 .0533 32.2
300X300 .0051 .0381 .0018 .0457 29.7
325X325 .0014 .0356 .0017 .0432 30.0
400X400 .0010 .0254 .0015 .370 36.0
500X500 .0010 .0254 .0010 .0254 25.0
635X635 .0008 .0203 .0008 .0203 25.0



Features


High tension: Much higher tension than common polyester mesh and smooth tension;
Super precision: Uniform wire diameter and aperture with extremely low difference;
High flexibility: The wire mesh will not lose elasticity at extreme tension;
High corrosion resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.

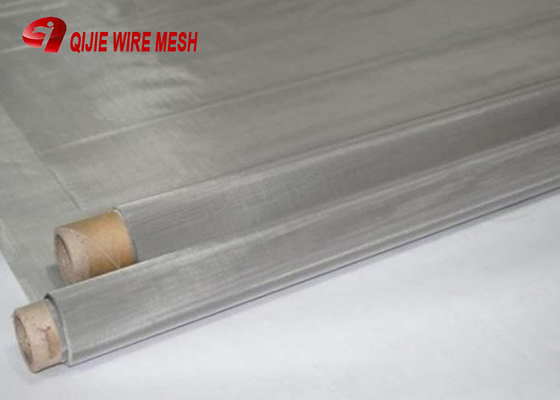

plain weave wire mesh

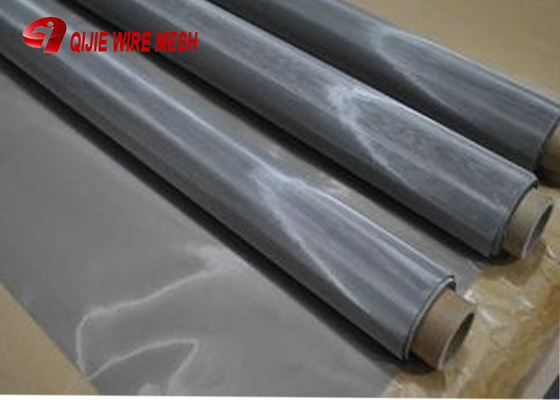

plain weave wire mesh-002
