Brick Construction Masonry Wall Reinforced Mesh 9 Gauge Hot Dipped Galvanized

China Brick Construction Masonry Wall Reinforced Mesh 9 Gauge Hot Dipped Galvanized supplier
Brick Construction Masonry Wall Reinforced Mesh 9 Gauge Hot Dipped Galvanized supplier Brick Construction Masonry Wall Reinforced Mesh 9 Gauge Hot Dipped Galvanized supplier Brick Construction Masonry Wall Reinforced Mesh 9 Gauge Hot Dipped Galvanized supplier

Large Image :  Brick Construction Masonry Wall Reinforced Mesh 9 Gauge Hot Dipped Galvanized

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 9gauge

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: bundle
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 10000 pieces per week
Contact Now
Detailed Product Description
Wire Diameter: 9gauge Surface Treatment: Galvanized
Length: 10' Width: 2'' 4'' 6'' 8'' 10'' 12'' 14''
Material: Stainless Steel Wire,Galvanized Steel Wire,Black Wire Mesh Application: Screen,Woven Wire Mesh
Weave Style: RDW Technique: Perforated
Type: Weave Wire Mesh,Expanded Mesh Color: Sliver

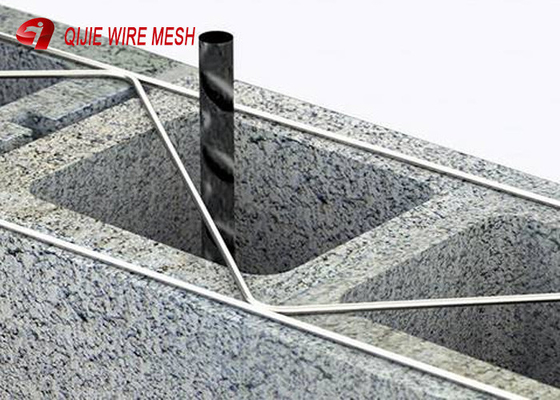

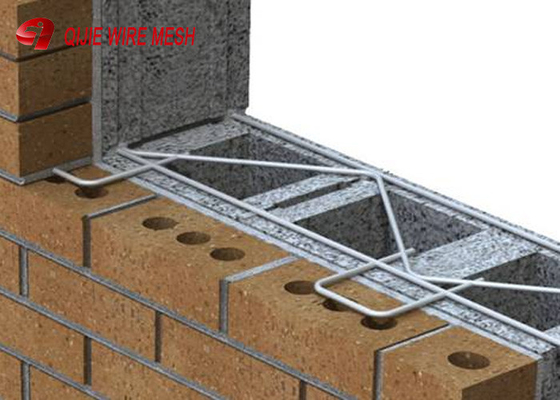

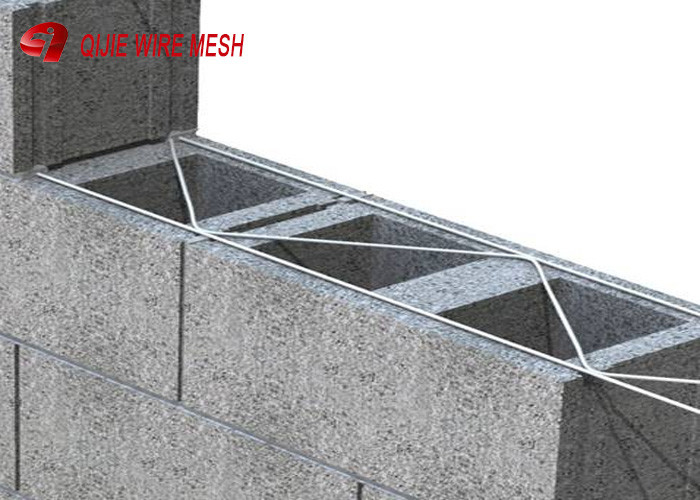

9 Gauge Hot dipped Galvanized Brick Construction Masonry Wall Reinforced Mesh

Masonry wall reinforced mesh, also called masonry mesh, is used for concrete constructions to strengthen the structure. It is widely used in concrete wall reinforcing to prevent or reduce the cracking of the wall. And our products can increase the strength of your wall without increasing the thickness. Our masonry wall reinforced mesh with high tensile strength and good tenacity can be bent without damaged. T shaped masonry wall reinforced mesh is suitable for corner construction. In addition, our masonry mesh products with galvanized surface treatment are not easy to be corroded and rusted in the concrete constructions. It has long service life.

We provide ladder mesh, truss mesh and T shape masonry mesh mainly. We also have expanded metal mesh as masonry wall reinforced mesh.


Product Specification



Table 1: Masonry Wall Reinforced Mesh Specifications
Item Standard Length Width Finishes
WRMS-1 10' (3.05 m) 2" (50 mm) Uncoated
Electro Galvanized
Hot Dipped Galvanized
After Fabrication
Stainless Steel
WRMS-2 4" (100 mm)
WRMS-3 6" (150 mm)
WRMS-4 8" (200 mm)
WRMS-5 10" (250 mm)



drawing of ladder mesh



All ladder mesh products conform to:

ASTM A641 - (Electro  galvanized )
ASTM A153 Class B2 - (Hot dipped after fabrication)
ASTM A 82 - (Cold drawn steel wire)
Tensile Strength:80,000 PSI;Yield Point:70,000 PSI minimum; Reduction of Area:30 %.
ASTM A951-96 - (Masonry wall reinforcing)
ASTM 580 Type 304 - (Stainless steel)

Ladder mesh reinforcement also called Brick Wall Reinforcement Mesh is welded wire sheet for reinforced masonry construction. It is used in building surface, wall, ground, bridge, bank and airport. And its feature is that welding spots of warp wire and weft wire are on the same surface.

Wire Diameter: 2.5-6.0 mm
Width: 5cm-27cm
Length: 3mm.
Spacing: 40cm

Surface Treatment of Ladder Mesh: Can be divided into five types:
Welded after hot dipped galvanized;
Welded after electro galvanized;
Welded before electro galvanized;
Welded before hot dipped galvanized;
 Welded by stainless steel wire.



General Technical Information:
Weight: 2kg-10kg.
Usage: Masonry wall construction.
Materials Available: hot dipped galvanized steel, electro galvanized steel or stainless steel. Wire diameter: from 2.5mm to 6mm.
Truss Mesh Structure Width: 5cm, 10cm, 15cm, 20cm.
Structure Length: 3mm.
Wire Spacing: 40cm.



PACKING INFORMATION:

  • Packed 500' per bundle (50 pcs - 10' long)
  • Corners and Tees packed 25 pcs per bundle



Benefits:

  • Greatly reduces cracking that can arise from thermal stresses. This enhances resistance to water penetration, as cracks are controlled
  • Increases lateral flexural strength
  • Bonds exterior and interior masonry wythes together in composite or cavity walls. Also bonds masonry at intersecting walls and corners
  • Increases elasticity and performance of masonry walls under various stresses

Features:

  • Butt-welding of cross rods to longitudinal rods (not more than 16”o.c.). This construction enhances bonding capabilities, eliminates projection of cross rods beyond the specified width of reinforcement, and prevents excessive build up of wire in limited mortar joints
  • Continuous deformation along each longitudinal rod for superior bonding performance
  • Fabricated in conformance with ASCE/ACI 530 building code requirements for masonry structures and ASTM A 951

Application:

Various types masonry wall reinforced mesh can be used in the wall, corner of wall, and any parts to make it become more stable.



loading of ladder mesh



Block Ladder Mesh-BLM001

Block Ladder Mesh-BLM001

Block Ladder Mesh-BLM002

Block Ladder Mesh-BLM002

Block Ladder Mesh-BLM003

Block Ladder Mesh-BLM003

Block Ladder Mesh-BLM004

Block Ladder Mesh-BLM004



Brick Wall Reinforcement Mesh

Brick Wall Reinforcement Mesh-BWRM001

Brick Wall Reinforcement Mesh

Brick Wall Reinforcement Mesh-BWRM002

Brick Wall Reinforcement Mesh

Brick Wall Reinforcement Mesh-BWRM003

Brick Wall Reinforcement Mesh

Brick Wall Reinforcement Mesh-BWRM004
