316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color

China 316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color supplier
316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color supplier 316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color supplier 316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color supplier 316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color supplier 316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color supplier

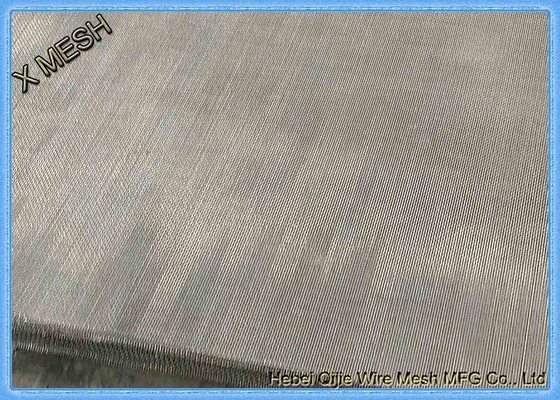

Large Image :  316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color

Product Details:

Place of Origin: Hebei, China
Brand Name: Qijie
Certification: ISO, SGS
Model Number: ss-010

Payment & Shipping Terms:

Minimum Order Quantity: 10 rolls
Price: USD 50-400/roll
Packaging Details: Water-proof paper, Plastic bag, wooden cases
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 500 rolls/month
Contact Now
Detailed Product Description
Technique: Woven Application: Woven Wire Mesh,Filters
Type: Weave Wire Mesh,Wire Cloth,Crimped Wire Mesh Material: Stainless Steel Wire,316,304
Weave Style: Plain Weave,twill Weave,Dutch Weave Product Name: 5 Micron 316L 2500 Mesh Stainless Steel Woven Wire Mesh,304 316L Plain SS Stainless Steel Woven Wire Mesh Disc.
Color: Silver Wire Diameter: 0.010 To 1.20mm
Hole Shape: Square Hole Length: 30m Per Roll Or As Required
Usage: Liquid Filter,chmical Industry,oil,filtration,filtering And Sieveing Width: 0.5m-3m Or Customized
Feature: Corrosion Resistance,Anti-corrosion,alkali-resisting Etc Mesh Count: 2-650mesh
Mesh: 1-2300 Name: 304 316 20Mesh Plain Woven Stainless Steel Wire Mesh,Stainless Steel Square Wire Mesh Woven Aluminum Wire Mesh
Sample: Avaliable



316 304 SS Stainless Steel Wire Mesh/Stainless Steel Mesh/Woven Filter Mesh


Stainless steel :Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.



Materials Stainlesssteel ,copper ,brass ,phosphor-bronze ,and special alloys ,nickel wire mesh ,titanium wire mesh ,monel wire mesh ,molybdenum wire mesh ,tungsten wire mesh ,zirconium wire mesh ,tantalum wire mesh ,haynes wire mesh ,hastelloy wire mesh ,inconel wire mesh ,incoloy wire mesh ,nichrome wire mesh ,kanthal wire mesh
Mesh Openings 0.003 to 10mm (other specifications on request)
Wire Diameters 0.010 to 1.20mm (other specifications on request)
Widths Up to 4000mm(Also can cut to 0.05—0.99m)
Weaving Types Plain weave , twilled weave , plain dutch weave , twilled dutch weave , reverse plain dutch weave as well as reverse twilled dutch weave





Specifications
Type Mesh/Inch Wire diameter
(inch)
OPen Area Weight (LB)
/100 Square Foot
Plain,Twill Wire Mesh 1 × 1-635 × 635 0.0008"-0.08" 25 to 84.6 2.53 to 41.1
Type Mesh/Inch Wire diameter
(inch)
Absolute Filtration
Finess μm
Nominal Filtration
Finess μm
Plain Dutch Weave
Wire Mesh
8 × 85 - 80 × 400 0.014'' × 0.0126''- 0.0049'' × 0.0028'' 318-340 to 43-48 250-255 to 35-40
Twill Dutch Weave
Wire Mesh
20 × 250 - 500 × 3200 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' 110-120 to 8-9 98-105 to 2-3

Uses: Mainly used for Separation and Flitration, extensively used in petroleum, chemical industry, enviroment protection,mine, airspace, paper-making, electronic, metallurgy etc.



We can produce all kinds of stainless steel wire mesh, including stainless steel square wire mesh and stainless steel twilled woven mesh. Stainless steel wire mesh with its anti-wearing, heat resistance, acid resistance and anti-corrosion properties, is used popularly for mining, chemical industry, food industry, the pharmaceutical industry and many other fields.




316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color
316 304 SS Stainless Woven Wire Mesh , Woven Filter Mesh In Silver Color
