York 431 421 709 Mesh Demister Pad For Distillation Column , Drying Tower

China York 431 421 709 Mesh Demister Pad For Distillation Column , Drying Tower supplier
York 431 421 709 Mesh Demister Pad For Distillation Column , Drying Tower supplier York 431 421 709 Mesh Demister Pad For Distillation Column , Drying Tower supplier York 431 421 709 Mesh Demister Pad For Distillation Column , Drying Tower supplier York 431 421 709 Mesh Demister Pad For Distillation Column , Drying Tower supplier

Large Image :  York 431 421 709 Mesh Demister Pad For Distillation Column , Drying Tower

Product Details:

Place of Origin: hebei,China
Brand Name: qijie
Certification: Iso
Model Number: demister pad

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Pallets or wood case
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Material: SS304,SS316,SS304L,SS316L,Monel400,and Plastic Suchas PP,PVDF,PTFEetc. Applicable: Air&oil Filter
Usage: Liquid Filter Type: Filter Elements, SP, HP, DP, HR
Hole Shape: Round Filter Rating: 99%
Thickness: 100-150mm

York 431,421,709 mesh demister pad for distillation column,drying tower



wire mesh demister used for gas separation tower entrained droplets, to ensure that the mass transfer efficiency, reduce the loss of valuable materials and improving the tower after the operation of the compressor, more commonly in the top screen defoaming device Settings. Can effectively remove 3 - 5um droplets, tray if setting between demister, not only can ensure the mass transfer efficiency of tray, also can reduce the plate spacing. So the screen defoaming machine is mainly used for gas liquid separation. Also for the air filter used for gas separation. In addition, the screen also can be used as instrument of buffer in instrument industry, in order to prevent the radio interference of electromagnetic shielding, etc.



Type of wire mesh demister



Type Specification
Standard type 40-100 60-150 105-300 140-400 160-400 200-570
High-efficiency type 60-100 80-100 80-150 90-150 150-300 200-400 300-600
High-penetration type 20-100 30-150 70-400 100-600 170-560
Damping type

33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120





The efficiency of the pad is a function of pad thickness, wire diameter, closeness of weave, etc. The thickness of the pad is not very critical since droplet coalescence is completed in the first one or two inches and the extra thickness is mainly for catching the re-entrained material. Thickness usually provided is between 100 mm and 300 mm.

A vane type demister consists of a number of parallel corrugated plates. When gas passes between the plates it has to change direction a number of times. The heavier particles are thrown out and get collected in the pockets. Coalescence of small particles into bigger particles is provided by agitation and surface contact. The surface of the element is usually wet and particles striking it are absorbed into the liquid film. The efficiency of the vane type demister is a function of pressure drop since closer plates introduce more pressure drop.











Style and Feature
Style
Density kg/m3
FreeVolume %
SurfaceArea m2/m3
T.C.I
Equivalent To:
York
Knitmesh
Vico-Tex
Koch
Metex
H
80
99.0
158
D80
931
4536
160
511
Hi-Thruput
L
120
98.5
210
D120
422




N
144
98.2
280
D144
431
9030
280
911
Nu-Stanadrd
SN
128
98.4
460
D128
326

415
706

SL
193
97.5
375
D193
421
9033
380
1211
Xtra-Dense
SM
300
96.2
575
D300





SH
390
95.0
750
D390





T
220
97.2
905
D220





R
432
94.5
1780
D432
333

800

Multi-Strand
W
220
97.2
428
D220




Wound
GS
160
96.7
5000
D160
371







Note:wemainlymakemisteliminatorinmaterials:SS304,SS316,SS304L,SS316L,Monel400,and plastic suchas PP,PVDF,PTFEetc.

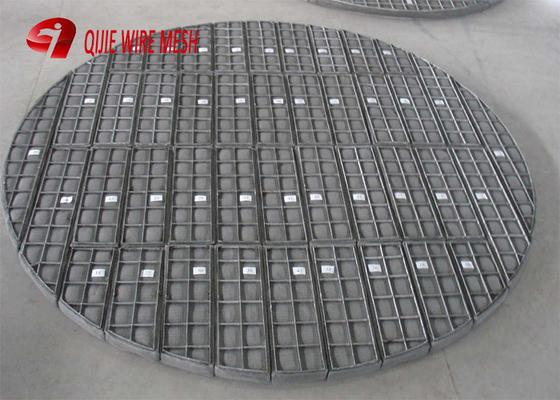

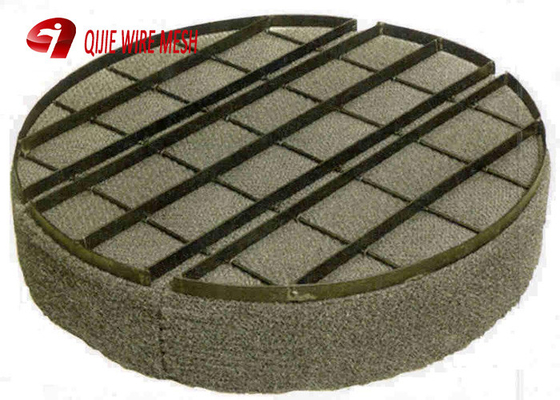

demister pad demister pad

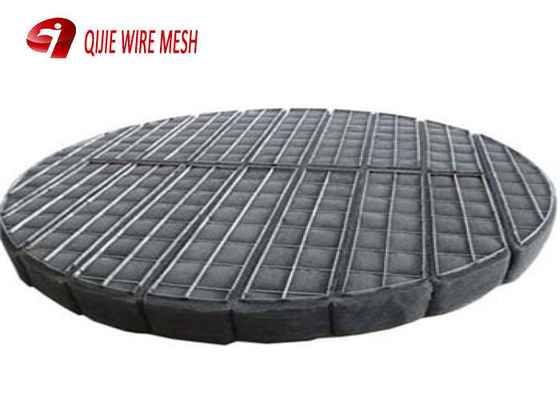

demister pad demister pad
