Ultra Fine Galvanized Window Screen Dark Powder Coated Black Powder Coated

Ultra Fine Galvanized Window Screen Dark Powder Coated Black Powder Coated
Ultra Fine Galvanized Window Screen Dark Powder Coated Black Powder Coated Ultra Fine Galvanized Window Screen Dark Powder Coated Black Powder Coated Ultra Fine Galvanized Window Screen Dark Powder Coated Black Powder Coated

Large Image :  Ultra Fine Galvanized Window Screen Dark Powder Coated Black Powder Coated

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-966
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: Packs of 5 pcs in cardboard with paper interleaving, then in timber crates of 50 pcs
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 10000 pcs one month
Detailed Product Description
Material: T316 Wire Diameter: 0.8mm
Mesh: 11 X 11 Surface Finish: Powder Coated
Color: Black, Grey, Nature Size: 0.75 X 2.0 M, 0.9 X 2.0 M, 0.9 X 2.4 M, 1.2 X 2.0 M, 1.2 X 2.4 M
High Light:

insect screen fabric

,

fly screen netting mesh



Ultra Fine dark powder coated black powder coated galvanized window screen for aluminum window screening​



Product Description

Stainless steel window screen also known as stainless steel insect screen, is made of durable and high-quality 304, 304 L, 306, 306 L stainless steel wire. It is extremely a popular item for its versatility and practicability, and many customers put it into many different places for using.
Stainless steel window screen with a long service life is physically strong and stable. Because of the characteristic of resisting the corrosion, rust, heat, alkaline, it can be used in the harsh environments for windows, doors and porches to prevent the insects.



Material type: Stainless steel 304,304l,316,316l,
Weave type: plain weave style
Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10 mesh * 0.9mm wire, 12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh * 0.7mm wire
Standard size: 750mm×2000mm 900mm×2000mm 1200mm×2000mm 750mm×2400mm 900mm×2400mm 1200mm×2400mm,1300mmx2600mm, 1500mmx2400mm.
Color: black,white, gray, dark gray,



Material Stainless steel wire 304, 304L, 316, 316L
Weaving Plain weave and twilled weave
Wire diameter 0.10 mm - 0.26 mm
Hole size 14 × 14, 16 × 16, 18 × 14, 18 × 18, 20 × 20
Width 2', 3', 4', 5', 6', 7'
Length 30', 50', 100' and so on
Color Black, gray, steel gray, color can be customized
NOTE Other sizes are available as special orders



MODEL WIRE DIAMETER MESH COUNTS DISTANCE OF HOLE USAGE
304L Ordinary mesh 0.12mm 24x22 mesh 1.1mm Thinner for anti-mosquito, anti-insect
304L Thickened mesh 0.15mm 22x20 mesh 1.1mm Large dosage, anti-mouse, anti-mosquito, anti-insect, recommended
304L special dense mesh 0.15mm 26x24 mesh 0.9mm Anti-rat, anti-all kinds of small mosquitoes
304L Extra thick mesh 0.19mm 22x20 mesh 1.1mm Anti-rat, anti-all kinds of small mosquitoes
316L thickened mesh 0.16mm 22x20 mesh 1.1mm Anti-rat, anti-mosquito, anti-small animal, strong anti-corrosion
304L Extremely thick mesh 0.23mm 22x20 mesh 1.1mm Anti-mosquito, anti-big mouse, anti-small animal



stainless steel window screen


Light duty specification list



Product name Specification Introduction
Mesh/Inch Wire diameter

Roll size

(m)


Stainless Steel insect screen 16 × 16 0.35mm

0.6 x 30.5

0.9 x 30.5

1.2 x 30.5

Material: ss304, ss316
18 × 18 0.23mm
18 × 14 0.28mm
20 × 20 0.18mm
24 x 24 0.22mm



For high traffic areas, such as doors or windows, you can select our heavy duty stainless steel insect mesh. The mesh can be installed to protect windows or doors; it can also play a part to keep insects out, but also provide extra security without comprising ventilation.



Heavy duty specification list



Product name Specification Introduction
Mesh/Inch Wire diameter

Panel size

(mm)



Stainless steel fly

screen mesh

10 × 10 0.9mm

1500 x 2500

1300 x 2600

1200 x 2000

1200 x 2400

1000 x 2400

Material: T 304, T 316
11 × 11 0.8mm
12 × 12 0.7mm



Benefits and Features:

  • Excellent resistance to corrosion and impact.
  • Quality meets the demands of GB/T 1220–2007 Stainless Steel Rod standard grade.
  • Good privacy protection and aesthetic effect.
  • Easy to install with flat and straight surface.
  • Good air circulation & high quality daylighting.

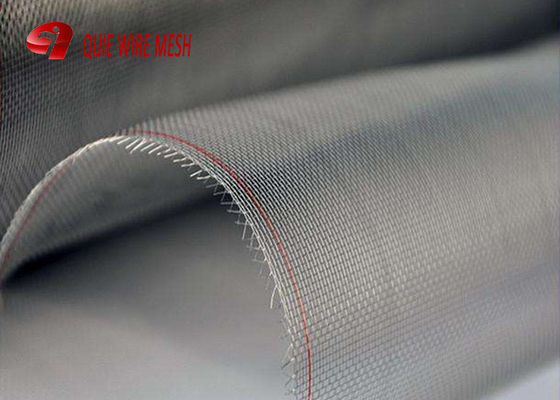

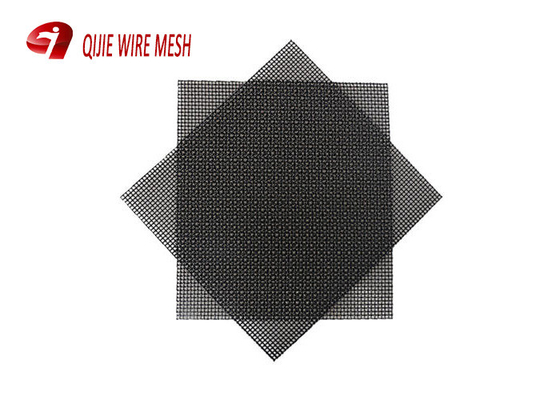

Ultra Fine Galvanized Window Screen Dark Powder Coated Black Powder Coated 1 Ultra Fine Galvanized Window Screen Dark Powder Coated Black Powder Coated 2



Comparision between 304 secruity mesh and 316L security mesh:

Because 304 grade security mesh screen with 0.9 mm wire is thicker than 0.8 mm 316 mesh. So, 304 stainless steel security screen is stronger and wear resistance than 316, maintaining the corrosion resistant qualities, but 304 grade stainless steel is less brittle than 316.



304 Security Screening is ideal for secure window/door screen and safe swimming pool fence.

High strength 304 stainless security screen with elegant appearance is mainly used as security windows and door for guarding your house and office, having the anti-theft, anti-insect and ventilation performance.

The 304 security screen is also suitable for an attractive and durable swimming pool fencing alternative to glass that eliminates glare and is easier to clean. This stainless steel mesh pool fencing not only look great, but have enough quality and safety for your family and children.

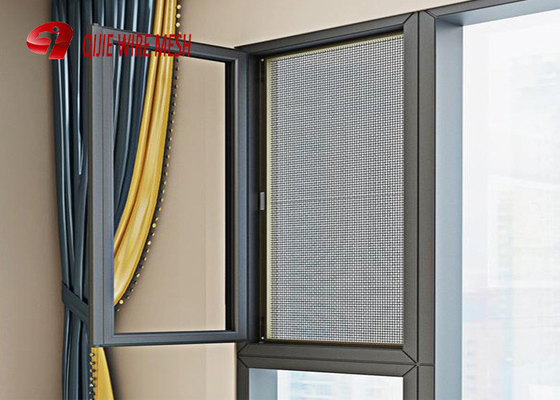

use of stainless steel insect screen

security screen
