304 12 Mesh * 0.7mm Security Window Screen Mesh / Stainless Steel Insect Screen

China 304 12 Mesh * 0.7mm Security Window Screen Mesh / Stainless Steel Insect Screen supplier
304 12 Mesh * 0.7mm Security Window Screen Mesh / Stainless Steel Insect Screen supplier 304 12 Mesh * 0.7mm Security Window Screen Mesh / Stainless Steel Insect Screen supplier 304 12 Mesh * 0.7mm Security Window Screen Mesh / Stainless Steel Insect Screen supplier 304 12 Mesh * 0.7mm Security Window Screen Mesh / Stainless Steel Insect Screen supplier

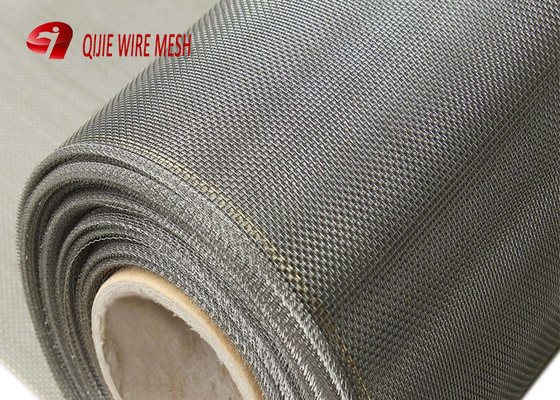

Large Image :  304 12 Mesh * 0.7mm Security Window Screen Mesh / Stainless Steel Insect Screen

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-966

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: Packs of 5 pcs in cardboard with paper interleaving, then in timber crates of 50 pcs
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 10000 pcs one month
Contact Now
Detailed Product Description
Material: T316 Wire Diameter: 0.8mm
Mesh: 11 X 11 Surface Finish: Powder Coated
Color: Black, Grey, Nature Size: 0.75 X 2.0 M, 0.9 X 2.0 M, 0.9 X 2.4 M, 1.2 X 2.0 M, 1.2 X 2.4 M

304 12mesh*0.7mm Stainless steel security window screen mesh/stainless steel insect screen​



Product Description

We produce wire cloth in all kinds of forms. The weaving is determined according to our customers'specific requirements, such as the material, the wire diameter, the size of the mesh, width and length. Our stainless steel wire mesh have excellent resistance against acid , alkali, heat and corrosion.We produce stainless steel wire mesh from first class stainless steel wire material in SUS/AISI 201 304 316 316L etc.



Material: 302,304,304L,316,316L stainless steel wire

Wire diameter: 0.5mm---1.2mm

Mesh/inch: 10x10mesh, 11x11mesh, 12x12mesh, 14x14mesh
Width: 0.5m--1.5m

Weaving: plain weaving

Length:2.4m, 2.6m, 31.5m or as you need



Product Stainless Steel Security Window Screen
Material SS302, 304, 304L, 316, 316L, etc
Weaving Pattern Plain Weaving; Twill Weaving; Dutch Weaving; etc
Wire Dia. 0.18mm-1.2mm
Mesh Number 11mesh-30mesh
Width 0.6m-1.5m
Edge Processing Closed Selvage; Flash; Perm Border
Color White; Black; Green; Gray; etc
Characteristic acid proof, alkali proof, high temperature resistant, wear-resisting
Application 1. stall in window or door as window screen or mosquito
2. used in greenhouse as anti-insect or anti trip net
3. used in fishing breed or poultry rasing as pool or garden guard
4. uesd in agricutlure product for food drying


Light duty specification list



Product name Specification Introduction
Mesh/Inch Wire diameter

Roll size

(m)


Stainless Steel insect screen 16 × 16 0.35mm

0.6 x 30.5

0.9 x 30.5

1.2 x 30.5

Material: ss304, ss316
18 × 18 0.23mm
18 × 14 0.28mm
20 × 20 0.18mm
24 x 24 0.22mm



For high traffic areas, such as doors or windows, you can select our heavy duty stainless steel insect mesh. The mesh can be installed to protect windows or doors; it can also play a part to keep insects out, but also provide extra security without comprising ventilation.



Heavy duty specification list



Product name Specification Introduction
Mesh/Inch Wire diameter

Panel size

(mm)



Stainless steel fly

screen mesh

10 × 10 0.9mm

1500 x 2500

1300 x 2600

1200 x 2000

1200 x 2400

1000 x 2400

Material: T 304, T 316
11 × 11 0.8mm
12 × 12 0.7mm



Benefits and Features:

  • High Strength Wire
  • Exact Aperture Size
  • Bullet Proof
  • Ant theft
  • clear to see from inside and invisible from outside
  • Flat Surface
  • Fire Proof
  • Maximum anti corrosion
  • Easy to clean from inside
  • Easy to install
  • Prevent from rats,flies
  • Can not be cut with scissors
stainless steel insect screen stainless steel window screen



Comparision between 304 secruity mesh and 316L security mesh:

Because 304 grade security mesh screen with 0.9 mm wire is thicker than 0.8 mm 316 mesh. So, 304 stainless steel security screen is stronger and wear resistance than 316, maintaining the corrosion resistant qualities, but 304 grade stainless steel is less brittle than 316.



304 Security Screening is ideal for secure window/door screen and safe swimming pool fence.

High strength 304 stainless security screen with elegant appearance is mainly used as security windows and door for guarding your house and office, having the anti-theft, anti-insect and ventilation performance.

The 304 security screen is also suitable for an attractive and durable swimming pool fencing alternative to glass that eliminates glare and is easier to clean. This stainless steel mesh pool fencing not only look great, but have enough quality and safety for your family and children.



use of stainless steel insect screen

security screen



Application:

Widely used in civil construction and industrial manufacturing, especially in the coastal and other corrosive work environment is more popular. For example, the usage of high-grade office buildings, residential buildings, and the properties of the door, orchard preferred protection products.



Properties:

Stainless steel window screen with its good performance of

1). Effective to defend insects and flies

2). Easy clean, no smell,

3). Previous to light, ventilation, high tensile, sun-shade, u-v proof

4). Acid and alkali resistance, high temperature resistance, good corrosion resistance

5). meshi uniform, fire retardant, long service time.

We supply stainless steel insect screen wire netting with wire gauge from SWG34 to SWG38 at a variety of roll sizesgalvanized iron insect screen or PVC coated insect screen and it is mainly for export.



Packing & Loading:

Burglarproof Security screens / Bulletproof stainless steel window screen

Package: Free fumigation wood case packing, 50 pieces per case or 100 pieces per case.

Nearest Shipping port: Tianjin Xingang China



stainless steel insect screen

Application

10 Mesh Stainless Steel Bullet Proof Window Screen is widely used for Windows and Doors in Government Departments,Housing Estate,Business District etc.

stainless steel insect screen
