Modular Tensioned Polyurethane Screen Panels Steel Frame Hooked Transverse And Longitudinal

China Modular Tensioned Polyurethane Screen Panels Steel Frame Hooked Transverse And Longitudinal supplier
Modular Tensioned Polyurethane Screen Panels Steel Frame Hooked Transverse And Longitudinal supplier Modular Tensioned Polyurethane Screen Panels Steel Frame Hooked Transverse And Longitudinal supplier Modular Tensioned Polyurethane Screen Panels Steel Frame Hooked Transverse And Longitudinal supplier Modular Tensioned Polyurethane Screen Panels Steel Frame Hooked Transverse And Longitudinal supplier

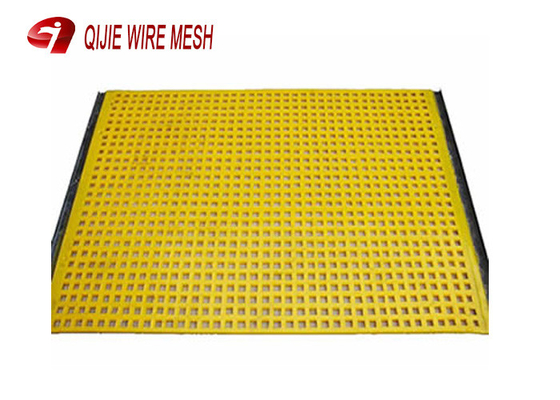

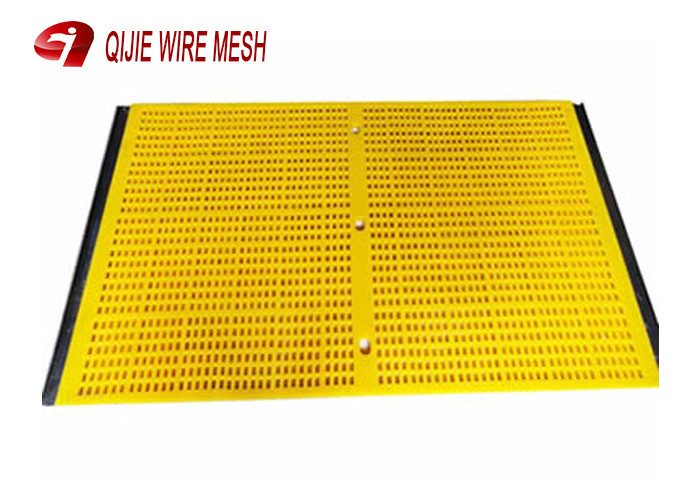

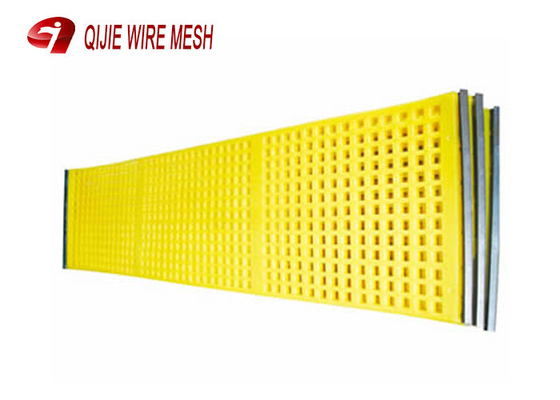

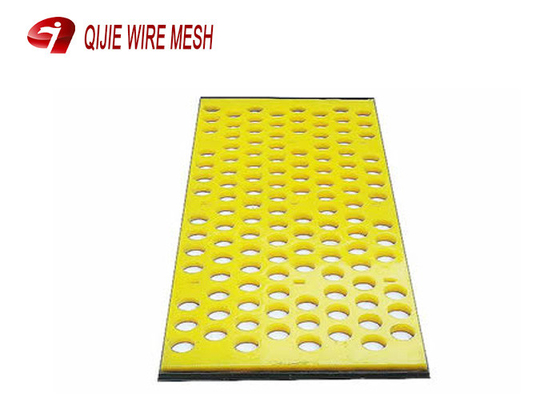

Large Image :  Modular Tensioned Polyurethane Screen Panels Steel Frame Hooked Transverse And Longitudinal

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-358

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: With steel pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 2500 rolls per month
Contact Now
Detailed Product Description
Material: High Quality Polyurethane Size: 300 X 300 Mm, 300 X 600 Mm
Hole Shape: Square, Rectanglar Hardnss: Shore A, 85°
Elongation: 640% Tensile Strength: 54 N / Mm2



steel frame Hooked Transverse and Longitudinal modular Tensioned polyurethane screen​





Product descriptions

Similar as the modular polyurethane screen, tensioned polyurethane screen is made of polyurethane materials and embedded with steel frame. Tensioned polyurethane screen has a special designed fastening hooks which can clamp screens into the separator. The hooks can be transverse tensioning and longitudinal tensioning.

Tensioned polyurethane screen is lightweight and easy to install in screening situations where material specifications are frequently changed.

Tensioned polyurethane screen is ideal for all screening applications where screening efficiency and noise reduction is crucial. The various opening sizes ensure the high separating and screening efficiency and the smooth surface and polyurethane materials make the screen has much lower noise than the woven vibrating screen mesh or perforated vibrating screen mesh.



Specifications

  • Material: polyurethane material and steel frame.
  • Thickness: 25mm - 60mm.
  • Hole type: square, rectangular, round and other types are available.
  • Hole size: 2.5mm - 130mm.
  • Panel width: max. 1.5m.
  • Panel length: max. 3m.
  • Hook type: metal or polyurethane.
  • Hook direction: transverse or longitudinal.
  • Color: red, yellow, blue and any other colors you want.
Polyurethane fine screen mesh specification table
Item Slot width (mm) Slot length (mm) Open area (%)
APF-01 0.10 2.59 28.8
APF-02 0.12 2.59 20.20
APF-03 0.15 2.75 28.90
APF-04 0.18 2.12 29.64
APF-05 0.20 2.59 25.80
APF-06 0.23 2.59 27.80
APF-07 0.25 2.59 30.20
APF-08 0.40 2.59 31.90
APF-09 0.50 4.30 33.50
APF-10 0.60 4.30 36.40
APF-11 0.70 5.20 39.33
APF-12 0.80 5.20 40.60
APF-13 1.00 5.75 43.35
APF-14 1.50 8.20 37.91



polyurethane screen mesh



Applications of polyurethane screen mesh:

  • Used in mines and quarries.
  • Used to sieving oil, coal, ore, gravel and sand, etc.
  • Widely applied in mining industry, chemical industry, power industry and construction industry.



Modular Tensioned Polyurethane Screen Panels Steel Frame Hooked Transverse And Longitudinal



Features

  • Embedded steel frame for high tensile strength.
  • Metallic hooks for easy replacement.
  • Wear resistance.
  • Age resistance and long service life.
  • High efficiency.
  • Various openings for accurate separating.
  • Lightweight and easy to install and replace.
  • Low noise.

Applications

  • Tensioned polyurethane screen is fitted to all vibrating screens.
  • Tensioned polyurethane screen can separate and screen almost all of materials from coarse stones to fine materials.
  • Tensioned polyurethane screen is ideal for both dry and wet materials.

Advantages of polyurethane screen mesh:

  • Good elasticity; high tensile strength.
  • Light weight; low operating noise.
  • Strong structure; good impact resistance.
  • Strong corrosion resistance; excellent wear resistance.
  • Good bearing strength; high screening efficiency.
  • Stable performance; long-term stability.
  • Maintenance free; economical.

polyurethane screen mesh
