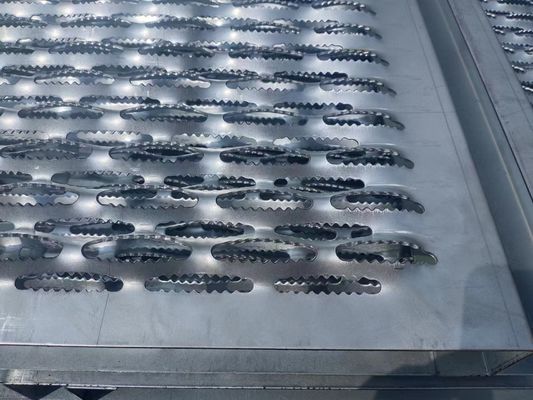

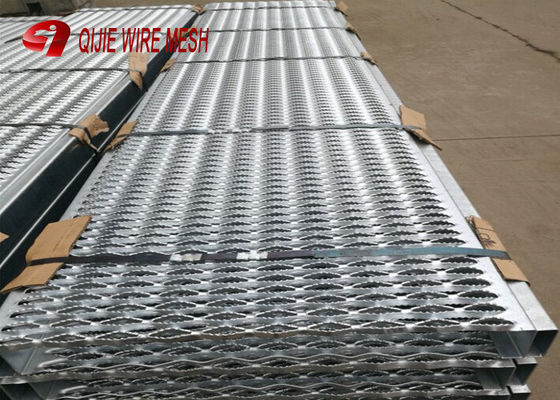

2mm Round Hole Grip Strut Galvanized Steel Grating For Stair Platform EN Standard

2mm Round Hole Grip Strut Galvanized Steel Grating For Stair Platform EN Standard
2mm Round Hole Grip Strut Galvanized Steel Grating For Stair Platform EN Standard

Large Image :  2mm Round Hole Grip Strut Galvanized Steel Grating For Stair Platform EN Standard

Product Details:
Place of Origin: hebei,China
Brand Name: QIJIE
Certification: iso
Model Number: grip strut grating
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Pallets
Delivery Time: 15-18days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000pcs per month
Detailed Product Description
Material: Aluminum,Galvanized Steel Wire Products Name: Grip Strut Grating
Type: Perforated Mesh,Etching Or Stamping Technique: Perforated
Weave Style: Perforated,Punched,Punching Hole Shape: Round,diamond,etc,plum Blossom,octagonal
Surface Treatment: Spray Coating/Spray Painting/Fluorocarbon Coating,Hot Dipped Galvanized,galvanized And Fluoroca Color: All The Color Chip Have,White,blue,Silver,golden
Product Name: Hexagonal Perforated Metal Sheet,expandable Sdiamond Mesh Thickness: 0.5-8mm,0.3MM- 8MM
Feature: Corrosion Resistance,Good-looking And Good Quality,Durable,Acid Resistance,anti-resistance Width: 1m Or 1.22m,1.22 M Or Below
Usage: Etc.,decorative,oil/air Filter,food Length: 2m Or 2.44m
Size: Customized Size,standard Shape: Square,Can Be Cut Into Round Or Square Shape,Round Shape,oval,Hexagon
Pitch: 1.0mm-100MM,or As Request.
High Light:

galvanized grating

,

galvanised grating





2mm Perforated Round Hole Grip Strut Grating For Stair Platform EN Standard​



Aluminum grip strut grating is popular with tank truck, width 800mm is customized by client with 2mm thickness, in fact, bearing capacity is not good base on 800mm width and 2mm thickness, it must add supporting on the bottom of grip strut grating.

Aluminum plate is light weight compare carbon steel and stainless steel plate, some constructions like to choose aluminum plate to make grip strut walkway. With light weight and good rust protection, Series 5052 is most popular in production. Grip strut grating can made out to catwalk, main used in poor working condition, such as ice, snow or rain outdoor, and oil, moist indoor. Grip strut grating is good anti-skid, snow or ice will fall off from diamond hole, oil or water is flow away, our shoes touch with teeth around hole, we have strong sense of safety.



Width 800mm, length is cutting base on tank truck.As normal, length sides are bent 90 degree, height is 35mm, and hold back 32mm. It can enhance the strength.







grip strut grating



Perforated Diamond Metal Grtp Strut GratingSpecification



Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Other standards: can be produced according to customer's standard



Specifications:



Name Aluminum Grip Strut Grating
Application Construction catwalk, tank truck etc
Material Aluminum 5052, 3003, 1060
Thickness 2MM,2.5MM,3MM
Grip strut grating Quantities of one tank truck 800*1650*35*32mm 1pc
800*2200*35*32mm 2pcs
800*2525*35*32mm 1pc
Surface treatment Film protection





pattern of grip strut grating





Maximum lengths:

  • Untreated or galvanised steel: 6,000 mm.
  • Untreated or pickled 304 or 316 stainless steel: 2,000 mm.
  • Aluminium: 6,000 mm.

Standard widths:



For the full range of materials and finishes: 120 mm / 180 mm / 240 mm / 300 mm / 360 mm / 420 mm / 480 mm.



Standard height:



For the full range of materials and finishes: 40 mm / 50 mm / 75 mm.



Application of Perforated Diamond Metal Safety Grating


Because the diamond safety grating provides high slip resistance and has anti-rust and anti-corrosion properties, it is widely

used at sewage treatment, power, running water factory. It is also used for decoration against slipping, etc.



grip strut grating



Applications:

Aluminum grip strut grating is used for construction catwalk, also in machine, tank truck Etc.



Feature advantage:

1, Aluminum plate is light weight, high strength and good rust proof. It is good material of grip strut.

2 Anti-skid effect is best, there are 14 teeth around one hole, getting hold of the shoes sole when you stand in walkway.

3, safety factor is good, grip strut grating is good at work in bad weather such as snow, ice, rain etc.

4, protection workers, cutting down work injury.



grip strut grating grip strut grating
grip strut grating grip strut grating
grip strut grating grip strut grating

grip strut grating



grip strut grating
