Zinc Coated Galvanized Steel Chain Link Fence Application With Razor Barbed Wire

China Zinc Coated Galvanized Steel Chain Link Fence Application With Razor Barbed Wire supplier
Zinc Coated Galvanized Steel Chain Link Fence Application With Razor Barbed Wire supplier Zinc Coated Galvanized Steel Chain Link Fence Application With Razor Barbed Wire supplier

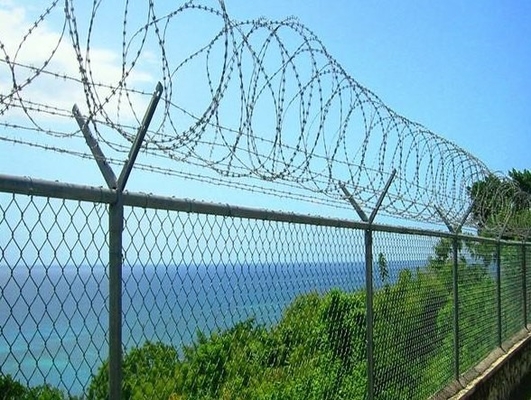

Large Image :  Zinc Coated Galvanized Steel Chain Link Fence Application With Razor Barbed Wire

Product Details:

Place of Origin: CHINA
Brand Name: XMESH
Certification: ISO9001:2008, SGS, CE
Model Number: 6HG10B

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pcs
Price: USD25.27-USD60
Packaging Details: Plastic film and weave bags or wood pallets as required.
Delivery Time: 15-25days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 Pcs/PER DAY
Contact Now
Detailed Product Description
Material: Carbon Steel Wire Opening: 2"x2"
Wire Gauge: 9 Gauge Surface Treatment: Galvanized Zinc Coated
Height: 2.5m,3m,3.6m,4m Width: 5m To 20m,or Customized
Fence Element: Mesh, Framework, Fitting And Gate Fence Framework: Top Rail, Horizontal Post, Corner Post Etc.
Color: Silver



Zinc Coated Galvanized Chain Link Fencing Application With Barbed Wire



Chain link security fence is also called security grade chain link fencing system.Combined with barbed wire and razor wire,it is designed to increase the difficulty to climb and penetrate, which provides greater levels of security for protecting personal safety and property.

  • Material: metal steel wire or stainless steel wire.
  • Surface treatment
    • Zinc-coated steel;
    • Aluminum coated steel;
    • Zinc-5% aluminum-mischmetal alloy-coated steel;
    • PVC and other organic polymer-coated steel.
  • Core wire gauge: 6 gauge – 11 gauge.
  • Mesh opening size: 3/8 inch. – 2 inch.
  • Chain link fabric width: 2.5 m – 3.6 m; length: 5 m – 20 m.
  • Edge processing mode: normal type, flat type, wrapping type.

Standards:

ASTM A392 Type 1 – Zinc-Coated Steel Chain Link Fence Fabric ASTM F567 – Installation of Chain Link Fence

ASTM A817 – Metallic-Coated Wire for Use in Chain Link Fence ASTM B6 – Zinc (Slab Zinc)

Federal Specification RR-F-191K/1F Type 1 Fencing, Wire and Post Metal (Chain-Link Fence) AASHTO M-181

Table 1 – Zinc Coated Wire Characteristics

Nomi al Coated Wire Dia. Allowable Variance Zinc Coated Weight(Mini) Breaking Strength(Mini)
Class 1 Class 2
Gauge Inch mm Inch mm Oz/ft² g/m² Oz/ft² g/m² Ibf Newtons
6 0.192 4.88 ±0.005 ±0.13 1.2 366 2.0 6.10 2,170 9,650
9 0.148 3.76 ±0.005 ±0.13 1.2 366 2.0 6.10 1,290 5,740
11 0.120 3.05 ±0.005 ±0.13 1.2 366 --- --- 850 3,780



Table 2 – Zinc Coated Chain Link Mesh Selection

Zinc Coated Galvanized Steel Chain Link Fence Application With Razor Barbed Wire



Table 3 – Chain Link Fence Post Selection

Zinc Coated Galvanized Steel Chain Link Fence Application With Razor Barbed Wire

Post System Kits Parameters

Standing Post Dia.:60mm,48mm,76mm,83mm,96mm,101mm
Cornor Post Dia.:76mm,83mm,96mm,101mm
Support Tubes Dia.:32mm,38mm,40mm
Top&Bottom Rails Dia.:32mm,38mm,40mm
Straight Wire 2.5mm/3.5mm,2.8mm/3.8mm,3.0mm/4.0mm
Tie Wire 1.5mm/2.0mm,1.7mm/2.2mm
Clamps

corner use,common use and end use



Barbed wire: three or six strands at the top of the fence.

  • Metallic coated steel barbed wire
  • 12-4-3-14R having 4-point barbs spaced 3 in. on center;
  • 12-4-5-14R having 4-point barbs spaced 5 in. on center.
  • Razor wire
    • Barbed tape obstacles styles
      • 18, 24 in. Single coil helical;
      • 18, 24, 30, 40, 60 in. single coil concertina;
      • 24, 30 in. double coil concertina.

Application

Zinc Coated Galvanized Steel Chain Link Fence Application With Razor Barbed Wire

Zinc Coated Galvanized Steel Chain Link Fence Application With Razor Barbed Wire
