| Color: | Silvery | Coil Weight: | 1kg-1000kgs/coil |
|---|---|---|---|
| Product Name: | Galvaized Iron Wire,20guage 0.7mm Electro Galvanized Iron Wire For Binding | Name: | High Quality Bwg 21 Bwg 22 Electro Galvanized Binding Wire |
| Package: | 5kg--500 Kg/coil Common,Big Coil Wire | Diameter: | 0.5mm-4.5mm |
| High Light: | annealed binding wire,galvanized tie wire |
||

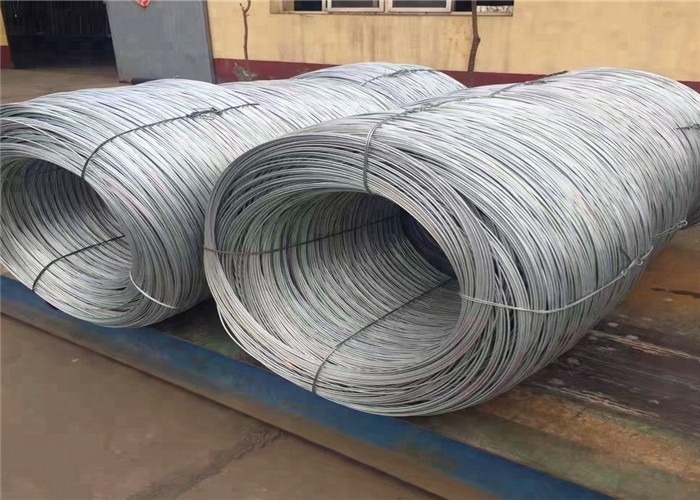

Low price Construction Usage Electro Gi Binding Wire Galvanized steel wire 16 gauge
Our galvanized iron wire is made of high quality low carbon steel wire rod. The iron rod is drawn into thinner wire and after drawing molding, pickling derusting, high temperature annealing, cooling processand and galvanization, the wire is produced. Through the plating bath current unipolarity zinc plating on metal surface gradually formed. The production speed is slow, the coating thickness of zinc is uniform, usually only 5 to 20 microns difference. Our product has a bright appearance, high corrosion resistance and generally three to five years anti-rust period.
For galvanized iron wire,we have electro galvanized wire and hot dipped galvanized wire
1)Hot-dip galvanized iron wire
Hotdip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust removing, annealing and coiling. It’s mainly used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of products and other daily uses.
Size range: BWG 8-BWG 22
Zinc coat: 45-180g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
2)Electro galvanized iron wire
Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc. It’s mainly used in construction, express way fencing, binding of flowers and wire mesh weaving.
Size range: BWG 8-BWG 22, we can also offer BWG 8-BWG 28
Zinc coat: 10-18g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
| Wire diameter, line number comparison table(S,W,G) | |||||||
| Line | Wire | Line | Wire | Line | Wire | Line | Wire |
| number | diameter | number | diameter | number | diameter | number | diameter |
| 6# | 4.8 | 14# | 2 | 28# | 0.7 | 32# | 0.27 |
| 7# | 4.5 | 15# | 1.8 | 23# | 0.6 | 33# | 0.25 |
| 8# | 4 | 16# | 1.6 | 24# | 0.55 | 34# | 0.23 |
| 9# | 3.6 | 17# | 1.4 | 25# | 0.5 | 35# | 0.21 |
| 10# | 3.2 | 18# | 1.2 | 26# | 0.45 | 36# | 0.19 |
| 11# | 3 | 19# | 1 | 27# | 0.4 | 37# | 0.17 |
| 12# | 2.6 | 20# | 0.9 | 28# | 0.35 | 38# | 0.15 |
| 13# | 2.3 | 21# | 0.8 | 30# | 0.3 | 39# | 0.13 |
Product details of Galvanized iron wire :
(1)Diameter: 0.15mm-6.0mm
(2)Tensile Strength: 300-550N/MM2
(3)Electeo galvanized iron wire: Steel rod coil →Wire Drawing→Wire Annealing→Rust Removing→Acid Washing→Boiling→Zinc Feeding→Drying →Wire Coiling
(4 )Hot Dipped Galvanized iron Wire : Steel rod coil →Wire Drawing→Wire Annealing→Rust Removing→Acid Washing→Zinc Feeding →Wire Coiling
Q:Are you factory or Middleman?
A:Yes, we have been in providing the professional products in fence field for 16 years.
Q: Can you offer free sample?
A:Yes, but usually the customer need to pay the freight.
Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products.
Q: How about the delivery time?
A:Usually within 15- 20days,customized order may need longer time.
Q:Which kind of Trading Terms you can accept?
A:Payment: L/C, D/P, D/A,T/T ( with 30% deposit ), Western Union, Paypal, etc.
Q:How many days you need to produce one container fence?
A:Production Time: 12-15 days for one container.
