| Material: | Carbon Steel Wire | Mesh Opening: | 200mmx50mm |
|---|---|---|---|
| Wire Diameter: | 6/5/6mm Or 8/6/8mm | Panel Height: | 630mm,830mm,1030mm |
| Panel Length: | 2500mm | Surface Treatment: | Galvanized Or PVC Coated |
| High Light: | welded wire panels,welded wire fabric |
||
Garden Fencing PVC Galvanized 868 Welded Wire Panles 8"x2"Hole Opening
Product Description:
868 Welded Wire Mesh Panels Fencing is a kind of reinforced security fence that is current nowaday. It is widely used for garden fencing and commercial security protection. The installation is very simple by connected with a dedicated clip and the handling is easy. The welded structure of 6/5/6 or 8/6/8 enhances the robustness of the fence, making it a good protection in the surface. In order to adapt to the climates in different regions, we offer different surface treatments to ensure maximum corrosion resistance and aesthetics. For humid areas or seasides, hot-dip galvanizing is recommended; in dry inland areas, electrostatically sprayed surfaces can be used and different colors can be selected.
Product: Welded Wire Mesh Fence Panels
Material: Low-Cabon Iron Wire
Wire Diameter: 6/5/6mm, 8/6/8mm
Mesh Hole: 200x50mm
Height: 630mm, 830mm, 1030mm, 1230mm, 1430mm, 1630mm, 1830mm, 2030mm, 2230mm
Width: 2500mm
Surface Treatment: Powder Coating
Color: Green/black
Packaging: 50 pcs/pallet

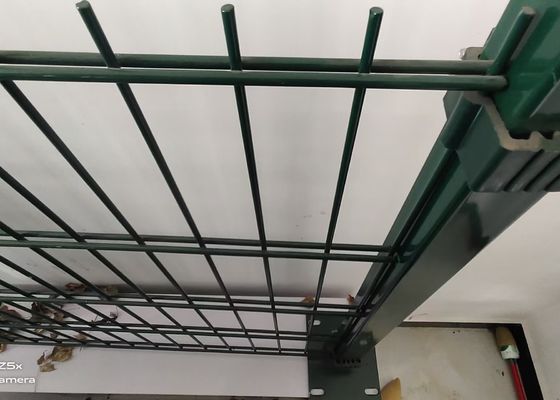

868 Welded Wire Fence is a flat panel, constructed from double wire 6 mm or 8mm diameter horizontal wires either side of a 5 mm or 6mm diameter vertical wire creating a strong rigid fence when fitted to a RHS post or Peach post.
Specifications of 868 welded wire mesh panel:
| Mesh Size | Wire Dia. | Panel Length | Panel Height | Surface Treatment |
| 200mmx50mm |
vertical wire 6mm |
2500 | 630mm |
Galvanized coated |
| 830mm | ||||
| 1030mm | ||||
| 1230mm | ||||
| 1430mm | ||||
| 1630mm | ||||
| 1830mm | ||||
| 2030mm | ||||
| 2230nn | ||||
| 2430mm | ||||
|
Note: We can also customize for your required size. |
||||
| Profile | Wall Thickness | Height | Base Plate | Rainhat | Surface Treatment |
| 60mmx90mm | 1.2mm and 1.5mm | according to the panel height | availabel | plastic |
Galvanized coated |
| 70mmx100mm |
Advantages of 868 Welded Wire Mesh Panel:
1. Economic and long service life
2. Strong structure with double thick wires
3. Anti-rust and corrosion
4. Environmetal materials
Workshop&Packing:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
