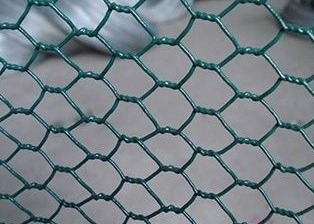

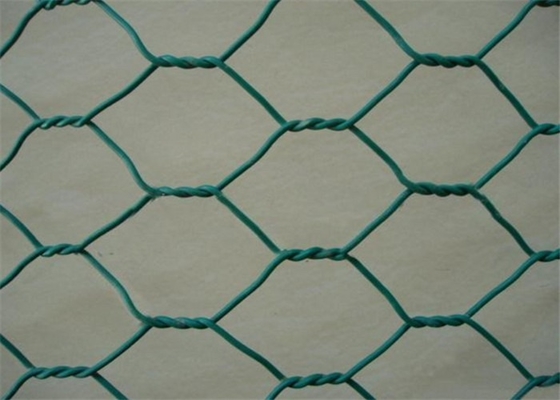

Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated

China Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated supplier
Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated supplier Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated supplier Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated supplier

Large Image :  Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated

Product Details:

Place of Origin: CHINA
Brand Name: XMESH
Certification: ISO9001:2008,SGS
Model Number: MFG-1009

Payment & Shipping Terms:

Minimum Order Quantity: 200 Sqm
Price: USD $4.99-$26.87
Packaging Details: Plastic film and pallet
Delivery Time: 10-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Sqm/per day
Contact Now
Detailed Product Description
Material: Low Carbon Steel Type: Twisted
Wire Gauge: 12Gauge-27Gauge Roll Width: 600-2000mm
Roll Length: 30m/50m Hole Type: Hexagon
Hole Aperture: 1/2" , 1" , 2" , 1-1/2" , 1-1/4" , 4" Surface Treatment: Galvanized Coated,PVC Coated



20 Ga. 24"x100Ft Hot Dip Galvanized 1" Hex Mesh Decorative Chicken Wire PVC Coated



Product Details

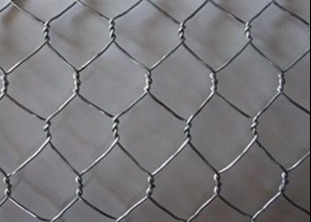

Chicken wire netting has a hexagonal hole, and is an excellent choice for light-weight fencing options. Amongst other things, this product has been used flat on the ground on walkways and wooden bridges, to reduce the risk of slipping. It has also been used as a long-lasting anti-bird netting to keep out larger birds such as pigeons and seagulls.

Material:Low carbon steel wire,galvanized iron wire,stainless steel wire,PVC coated wire.

Weaving Type:Straight twist, reverse twist, double-direction twist.

Processing: Twisted before galvanized, galvanized after weaving.

Surface Treatment:

  • stainless steel wire
  • electro galvanized after weaving
  • hot dipped galvanized after weaving
  • PVC coated after weaving

Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated

Product Specification

Hex netting chicken mesh has a wide range of widths, accompanied by a variety of hexagonal hole sizes and a number of different lengths.

Specifications
Twistable Wire Diameter
Twistable Width
Mesh (inch)
Size No(mm)
Limit Error
British System No
Metric System Wire Diameter
British System
Metric System
3/8"
10
+0.5
BWG 27-23
0.41-0.64mm
1'-6'
0.1-2m
1/2"
13
-1.5
BWG 27-22
0.41-0.71mm
1'-6'
0.1-2m
5/8"
16
+1.0/-2.0
BWG 27-22
0.41-0.71mm
1'-6'
0.1-2m
3/4"
19
+1.0/-2.5
BWG 26-20
0.46-0.89mm
1'-6'
0.1-2m
1"
25
+1.5
BWG 25-29
0.51-1.07mm
1'-6'
0.1-2m
1.25"
31
-3.0
BWG 24-18
0.56-1.24mm
1'-6'
0.2-2m
1.5"
40
+2.0/-4.0
BWG 23-16
0.64-1.65mm
1'-6'
0.2-2m
2"
51
+2.0/-4.0
BWG 22-14
0.71-2.11mm
1'-6'
0.2-2m
3"
76
+2.0/-4.0
BWG 21-14
0.81-2.11mm
1'-6'
0.3-2m
4"
100
+2.0/-4.0
BWG 20-12
0.89-2.8mm
1'-6'
0.5-2m
Required size are accepted as well.

Product Features

  • Economic and effective.
  • Simple installation. No special technology needed.
  • Weather proof under natural destroys and corrosion resistan
  • Less transport freight. It can be folded together for transport.

Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated

Product Applications

1) Structural purposes , Heat insulation (ceilings, boilers..)

2) Pipe wrapping(petrolium) ,Isolation purposes ,

3) Indicator & protection for underground cables and pipes ,Windows Protection

4) Light fencing applications ,Fishing ,Poultry farms ,Sugar industry

5) Rubber industry , rockwool blanket industry.

6) Poultry & animal housing, Crop protection. Fruit cages, Garden Protection, Rabbit Control ,Stucco in construction, reinforcement in road.

Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated

Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated

Package&Loading

Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated

Green 20 Ga Metal Wire Mesh Decorative Hexagonal Wire Netting PVC Coated
