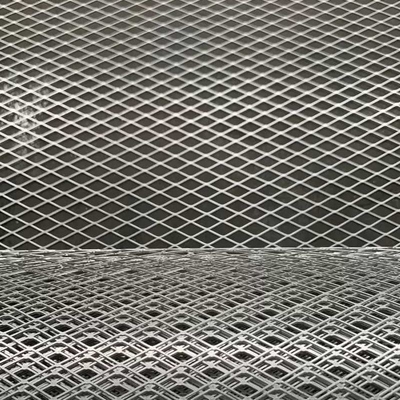

Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet

China Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet supplier
Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet supplier Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet supplier Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet supplier

Large Image :  Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet

Product Details:

Place of Origin: CHINA
Brand Name: XMESH
Certification: ISO9001:2008, SGS, CE
Model Number: MFG-0030

Payment & Shipping Terms:

Minimum Order Quantity: 100 Sqm
Price: USD5.30-USD31.50
Packaging Details: Iron or wooden pallet or wooden case with waterproof cloth.
Delivery Time: 10-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Sqm/per day
Contact Now
Detailed Product Description
Material: Carbon Steel,aluminum,stainless Steel,galvanized Steel Type: Flattened Expanded
Application: Protecteing Screen,decorative Mesh Processing: Pressing
Sheet Width: 0.5m-2.5m Sheet Length: As Required
Hole Shape: Diamond,square,hexagonal,honeycomb,sunshade,viking,network,galaxie Ect. Name: Expanded Steel Mesh



Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet



Expanded Metal could be divided into Flattened expanded and Raised expanded according to processing method. Flattened expanded metal is metal that has been cold flattened, leaving a smooth, flat surface with diamond shaped openings. It is durable, economical, versatile, and is available in many material options, such as carbon steel, galvanized steel, aluminum, and stainless steel. During this process, the length of the sheet is elongated. After the expanded metal has been flattened, the expanded sheet is then sent through a leveler to maintain its flatness.

Various application of Flattened expanded metal

1. machine guarding

2. fencing panels

3. shelves

4. grilles

5. security screen

6. greenhouse

7. walkways,floors and stairs

8. ramps

9. infill panels

 Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet

Dimension of Flattened expanded metal

Carbon Steel Standard
Style Design size/In Strand/In

Overall

Thickness/In

%Open Area
SWD LWD WIDTH
3/16" #22 0.226 0.500 0.058 0.027 49
3/16" #20 0.226 0.500 0.063 0.032 44
1/4" #20 0.250 1.050 0.079 0.030 35
1/4" #18 0.250 1.050 0.080 0.040 35
5/16" #20 0.333 1.030 0.075 0.032 60
5/16" #18 0.333 1.030 0.099 0.040 45
1/2" #20 0.500 1.250 0.079 0.029 65
1/2" #18 0.500 1.250 0.097 0.039 60
1/2" #16 0.500 1.250 0.096 0.050 63
1/2" #13 0.500 1.250 0.107 0.070 52
3/4" #16 0.923 2.100 0.111 0.048 74
3/4" #14 0.923 2.100 0.105 0.061 74
3/4" #13 0.923 2.100 0.106 0.070 74
3/4" #10 0.923 2.100 0.160 0.070 68
3/4" #9 0.923 2.100 0.165 0.120 63
1" #16 1.000 2.500 0.098 0.050 78
1" #14 1.000 2.300 0.125 0.070 80
1" #12 1.000 2.300 0.156 0.085 74
1" #10 1.000 2.300 0.160 0.110 58
1 1/2" #12 1.410 3.200 0.116 0.085 85
1 1/2" #10 1.330 3.200 0.188 0.110 63
1-1/2" #16 1.330 3.200 0.119 0.048 83
1-1/2" #13 1.330 3.200 0.116 0.070 80
1-1/2" #9 1.330 3.200 0.158 0.110 75



Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet



Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet

Different hole style options

Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet

Features of Flattened expanded metal

  • Economical
  • Durable
  • Extremely versatile
  • Easy installation
  • Low resistance to wind loads
  • Easily cut to fit
  • Material options

Industrial Flattened Expanded Metal Mesh 1/4" #20 Security Screen Flat Sheet
