Product Details:
Payment & Shipping Terms:
|
| Diameter: | 4.0mm / 5mm | Height: | 1.8m-2.43m |
|---|---|---|---|
| Mesh Openning: | 50*200mm, 75*150mm, 60*120mm | Width: | 2.0m-2.5m |
| Color: | Multi | Products Name: | 3d Curved Mesh Fence |
| Panel Size:: | 1.5*2.0m, 1.6*2.2m, 1.8*2.5m | Advantage: | Beautiful Ornamental Fence |
| High Light: | curved wrought iron fence panels,curved wrought iron fence |
||

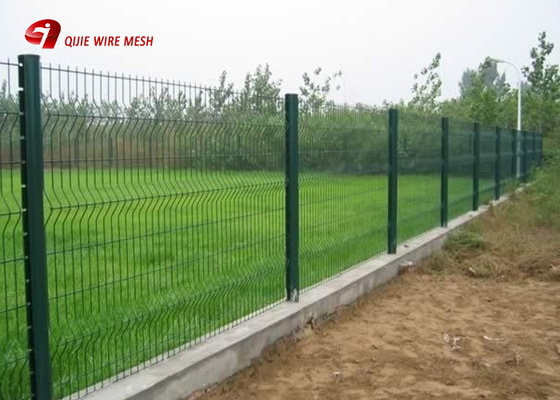

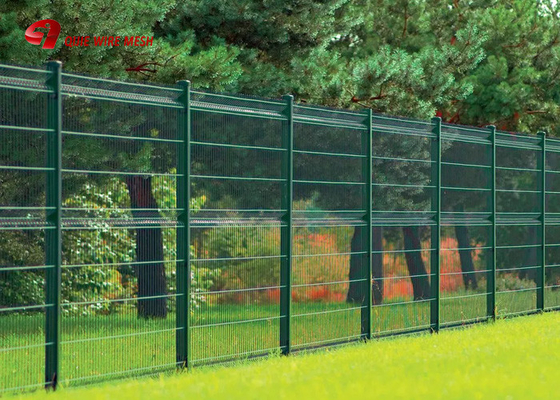

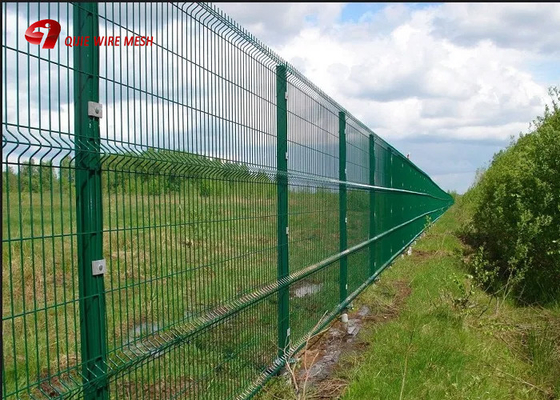

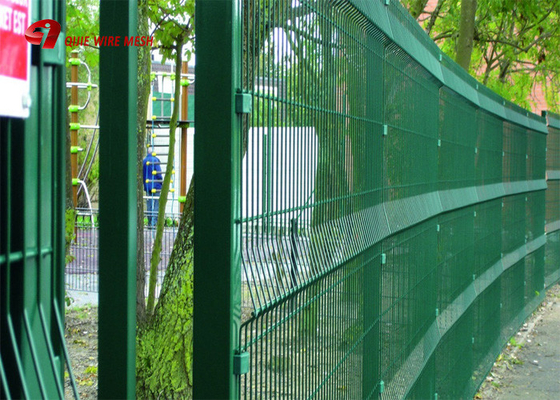

PVC Coated Wire Mesh Fence Panels 1530mm, 1830mm, 2030mm,with Curved /V beams Anti Climb Mesh Fence Pane
The panels of 3D curved wire mesh fence are welded from high quality cold drawn steel wire and welded to the panel by hot dip galvanizing or cold wire drawing and then galvanized. For galvanized wire boards, it is necessary to check the zinc layer, etc., and only apply qualified items. It includes powder coating or PVC / PE dip coating. Then the product can be used for 15 years
Panel with bends is not only refinedly and scientific, but also stable and durable. It can reduce the wire's diameter by suing the bends, and the fastness of the panel won't be debase, then the cost can be reduced. It also can match with many kinds of post, and it's well suitable for a wide range of application and easy for installation.
The PVC Coated Wire Mesh Fence is made of low carbon iron wire, the fencing panels are galvanised followed by vinyl coated.
The color could be green, blue, white, etc.
The ' V ' shaped design increases stability to the panel including panels, mesh gates and accessories .
It's used as Boundary and Security Fence in airport, highway, stadium , etc.
Panel Styles Options:
2D plus mesh panel- Flat with additional wire
2D panel without curves
2D plus with one additional horizontal wire every 11 mesh
3D Mesh Panels.
| SPECIFICATIONS FOR THE FENCING PANEL | |||||
| MESH SIZE | WIRE THICKNESS | COATING | HIGHT | LENGTH | FOLDS |
| 50mmx200mm | 4.0mm/5.0mm (before PVC coated is 4.0mm and after PVC coated is 5.0mm) |
Galvanized and PVC coated | 0.63m | 2.00m | 2 |
| 0.83m | 2.00m | 2 | |||
| 1.03m | 2.00m | 2 | |||
| 1.23m | 2.00m | 2 | |||
| 1.43m | 2.00m | 2 | |||
| 1.63m | 2.50m | 3 | |||
| 1.83m | 2.50m | 3 | |||
| 2.03m | 2.50m | 4 | |||
| 2.23m | 2.50m | 4 | |||
| 2.43m | 2.50m | 4 | |||
Green PVC Coated Steel 358 Mesh High Security Fencing
Wire/Safety mesh fence made of steel wire;
Hot-dipped galvanized after welded (Zinc coated - Zn 40g/m, Powder coated
Panel heigh: 1225 or 1525 mm
Panel lengh: 2500 or 3000 mm
Wire diameter: 4mm X 1000 pieces and 5mm X 800 pieces
Mesh size: 200x55 mm
Folds number: 2 or 3
Post of 3D Curved Mesh Fence:
Post style -- square post: 50*50mm, 60*60mm (popular)
peach post: 70*100mm (popular)
round post: 50mm O.D. (popular)
high security curved fence panels accessories
1. All the clips are metal, it is stronger than plastic.
2. Clips and screws are packed by sets, plastic film + carton box.
3. Carton Box Dimensions: 300*300*400mm
Advantage of 3D curved wire mesh fence:
Extraordinary and stylish design, easy to install. The baffle is connected to the column without any clips, which is simple and convenient. It can be inserted into a 40mm wide concrete base. There is usually a plastic cover on top of the column. The upper inspection and repair is very easy and the columns are easy to replace.
Application of 3D Curved Wire Mesh Fence:
