Product Details:
Payment & Shipping Terms:
|
| Materials Type: | Stainless Steel AISI316L, 316, 304L, 304 And Etc. | Woven Type: | Plain Weave |
|---|---|---|---|
| Mesh Openings: | 0.003 To 10mm | Wire Diameters: | 0.010 To 1.20mm |
| Width :: | Up To 6mtrs. | Thickness:: | 0.15mm--15mm |
| Length:: | 50' 100' 200' | Hole Shape:: | Square |
| High Light: | stainless woven mesh,stainless woven wire mesh |
||

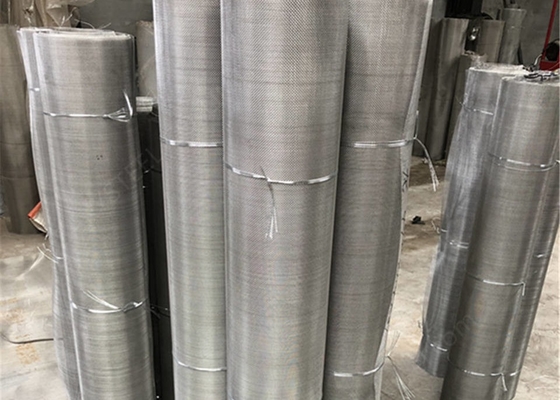

Plain Weave 316 304 SS Stainless Steel Wire Mesh/Woven Filter Mesh
Detailed Product Description
Material: Stainless steel wire in AISI, SUS302,304,316,304L or 316L
Weaving and Features: Plain weave, twilled weave, Dutch weave, etc. It offers good property against acid, alkali and heat, it is also wear resistant.
Uses: Stainless steel wire mesh is used for mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries.
We can produce all kinds of stainless steel wire mesh, including stainless steel square wire mesh and stainless steel twilled woven mesh. Stainless steel wire mesh with its anti-wearing, heat resistance, acid resistance and anti-corrosion properties, is used popularly for mining, chemical industry, food industry, the pharmaceutical industry and many other fields.
| Material: | 304 304L 316 316L 310S 904L | Color: | Silver |
| Technique: | Plain Weave,Twill Weave,Dutch Weave | Mesh Size: | Plain Weave 1x400 Mesh Twill Weave:35 - 635 Mesh Plain Dutch Weave:8x85-80x400 mesh Twill Dutch Weave:20x250-500x3200 mesh |
| Wire Diameter: | 0.01 - 2.03mm | Hole Size: | 0.02mm - 23.37mm |
| Hole Shape: | Square | Roll Width: | 0.914m,1m,1.2m,1.5m,1.8m,2m,4m,8m Etc |
| Roll Length: | 10m,20m,30m Or Customized | Sample: | Can Be Offered |
| Application: | Filters |
Choosing the Right Weave Mesh Type
The following types of weaves are available:
Plain weave square mesh
Rectangular mesh
Plain Dutch weave
Dutch twilled weave
Crimped woven Wire mesh
Plain Weave
The most common and simplest weaves.Each warp wire wire running parallel to the length of the cloth passes alternatively over and under the wires running transversly through the cloth at 90 degree angles.
Twill Weave
Is Produced by passing each fill wire alternatively over and under two warp wires.
Intercrimp
Has extra crimps in warp and weft wires between intersections.
Lockcrimp
Is produced with pre crimped wire. Lock crimp weave is stabilised by a notch or bump at the wire intersections.
Feature of the stainless steel woven wire mesh
Standard opening sizes,uniform opening and good permeability.
Ultrathin thickness.
Precise control filtration effect.
Corrosion resistant and good creep resistance.
Acid alkali and wear resistance.
High temperature performance.
Low elongation and high tension.
Application of the stainless steel woven wire mesh
With acid, alkali, temperature, wear and other properties
Can be cut in any size.
Mainly used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
Idea for the machine that installs it, for filtering natural water and food.
