Yellow PU Mesh Polyurethane Screen Panels With Hook For Mine Vibrating

China Yellow PU Mesh Polyurethane Screen Panels With Hook For Mine Vibrating supplier
Yellow PU Mesh Polyurethane Screen Panels With Hook For Mine Vibrating supplier Yellow PU Mesh Polyurethane Screen Panels With Hook For Mine Vibrating supplier Yellow PU Mesh Polyurethane Screen Panels With Hook For Mine Vibrating supplier Yellow PU Mesh Polyurethane Screen Panels With Hook For Mine Vibrating supplier

Large Image :  Yellow PU Mesh Polyurethane Screen Panels With Hook For Mine Vibrating

Product Details:

Place of Origin: Hebei
Brand Name: Qijie
Certification: SGS
Model Number: QJ-PUSCREEN

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Pallets
Delivery Time: 15-18days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs permonth
Contact Now
Detailed Product Description
Material: Polyurethane, Polyurethane Name: Mine Vibrating Screen
Application: Mining Feature: No Pegging Or Blinding
Color: Red,Yellow Hardness:: 45 ~ 85 Shore A
High Light:

vibrating sieve screen

,

self cleaning screen mesh

Polyurethane PU Screen Mesh with Hook for mine Vibrating screen



Polyurethane Tension Screens offer the advantages of being longer lasting, more efficient and lighter to install in screening situations where material specifications frequently change. Kosin casts polyurethane tension screens in large sections reinforced with internal cables so that tension can be applied to the screen. Combining the positive aspects of traditional wire screen cloth and the long wear characteristics of urethane, it’s widely in screening industry.

Polyurethane tension screen panel is a good choice for many vibrating machines,applied to DCV circular vibration sieve,SZD round, BY vibrating screen, etc.





Applications
Wet applications but may also be applied in dry screens.
Size
Max Length 3600mm
Aperture Size
Up to 170mm
Fastening Options
Hook Style
Quotation info needed
length, width, thickness, apertuer size and quantity
Payment Term
50% deposit and the balance shall be paid before shipment



Main Features

1.Due to the elastic polyurethane screen panel use wire rope as skeleton material, it has a larger bearing capacity, higher screening efficiency, and lower noise.

2.Polyurethane itself has very elastic modulus as well as absorb the impact of high strength , its carrying capacity is 2.5 times more than rubber panel.

3.Excellent abrasion resistance performance and long service life.

4.Corrosion resistance, nonflammable, poisonless and tasteless.

5.Polyurethane screen panel is self-cleaning and improves the screening efficiency.

6. Service life is 8-10 times higher than the common metal net,is 3 times than the stainless steel sieve.



Used for:
Steel Plants
Cement Plants
Mining Industry
Coal Washeries
Power Plants
Mineral Beneficiation Plants



Features:

  • Design with metallic hooks, make replacements easy
  • Less down time due to screen change outs
  • Flexible Steel Wire Rope reinforced to prevent elongation while in tension
  • Tapered design in Screen openings, lower block rate
  • Perfect seals between screens, prevents clogging
  • Impact area may be blanked out and reinforced


Product Range:

  • Panel size: Customed length and Widt.
  • Aperture size: 5~50mm
  • Aperture Shape: Square, Rectangle, circular



Applications:

Steel plants, Mining industry, Cement plants, Mineral beneficiation plants, Power plants, Coal washing





The application of the polyurethane flip flow screen :

Polyurethane relaxation screen is mainly used for coal, iron ore, copper, gold and other particles in the classification of ore, screening and other places, widely used in coal screening. Polyurethane relaxation screens are particularly suitable for sieving wet fine particulate materials. As the polyurethane relaxation screen vibration frequency is high, the screen elasticity is good, so that the material kept in the state of jumping, it is difficult to re-surfacing surface. Can greatly improve the production efficiency.

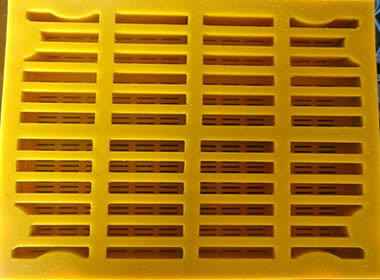

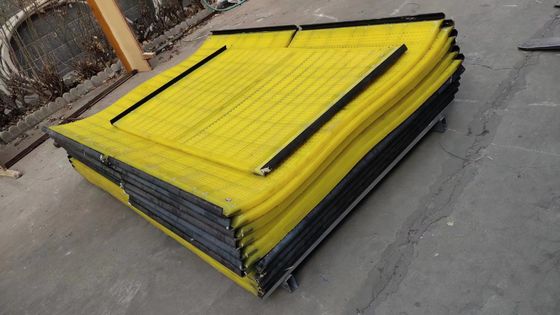

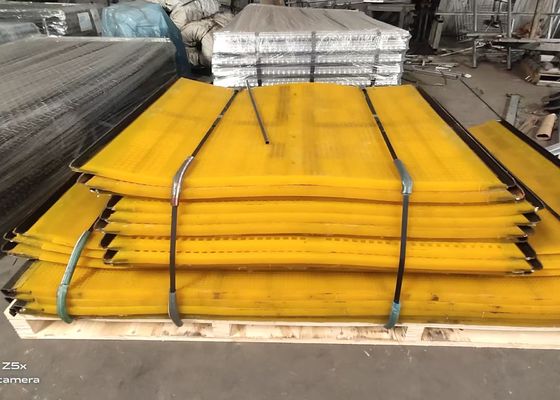

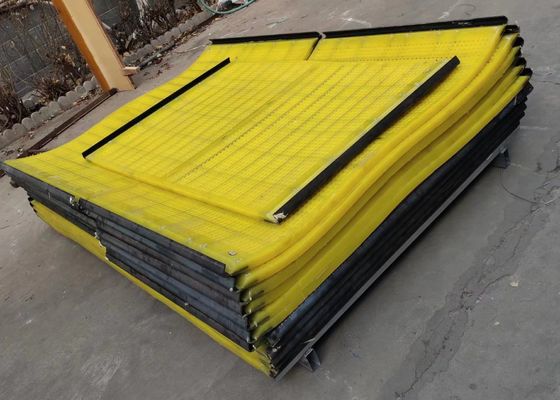

PU screen PU screen
PU screen PU screen
