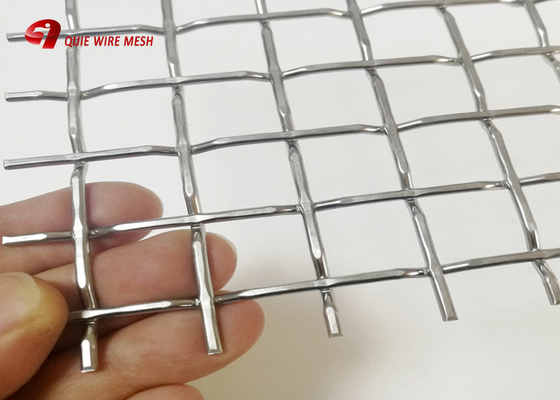

Architectural Aluminum Crimped Mesh Grilll In Theater Stadium Zoo Exhibition Center

Architectural Aluminum Crimped Mesh Grilll In Theater Stadium Zoo Exhibition Center
Architectural Aluminum Crimped Mesh Grilll In Theater Stadium Zoo Exhibition Center Architectural Aluminum Crimped Mesh Grilll In Theater Stadium Zoo Exhibition Center Architectural Aluminum Crimped Mesh Grilll In Theater Stadium Zoo Exhibition Center

Large Image :  Architectural Aluminum Crimped Mesh Grilll In Theater Stadium Zoo Exhibition Center

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 1/2"x1/2"
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 100rolls per week
Detailed Product Description
Material: Alloys 1350, 5056 And 6061 Mesh Openning: 1/2" X 1/2"
Size: 1 X 20meters Wire Diameter: 2mm
Diameter Of The Wire: From 0.3mm -15mm Tensile Length Of The Wire:: 1200MpA
Width: 1.2m Length: 20m
Application: Theater, Stadium, Zoo, Exhibition Center Type: Lock Crimped Wire Mesh
High Light:

vibrating sieve screen

,

self cleaning screen mesh



Architectural Aluminum Crimped Mesh Grilll in Theater, Stadium, Zoo, Exhibition Center​



Aluminum is largely considered the most popular non-ferrous metal in the world, and as such, aluminum alloys are commonly used in the wire mesh industry. Aluminum alloys are composed primarily of aluminum, and also contain other elements like copper, magnesium, manganese, or silicon.

Aluminum woven wire mesh is lightweight; in fact, a good rule of thumb is that, when compared to its stainless steel counterpart, aluminum mesh is approximately 1/3rd the weight of stainless. Aluminum wire mesh is also corrosion resistant in most normal environments but will corrode quickly in the presence of alkaline solutions and hydrochloric and hydrofluoric acids. With an estimated melting point of 1218°F, aluminum has many benefits, including a relatively low cost compared to other meshes. Aluminum woven wire mesh is a popular choice for a wide array of industries including aerospace and automotive, as well as marine and electrical conductivity applications.

As a large supplier of aluminum woven wire mesh, Darby specializes in stocking many of the standard or market grades of aluminum in alloy 5052. As indicated in the chart below, the 5000 series of aluminum contains magnesium which is the main secondary element. This inclusion of magnesium serves as a hardener and offers good corrosion resistance in marine atmospheres.

Alloys 1350, 5056 and 6061 are largely considered special order items in aluminum wire mesh. There are times that these aluminum alloys are on the floor or can be readily manufactured. The chemical composition limits chart for the various alloys of aluminum wire mesh is presented below:

Chemical Composition Limits for Various Aluminum Wire Mesh Alloys (in %)

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Other Aluminum
1350 0.10 0.40 0.05 0.01 0.01 0.05 0.03 Trace 99.50
5052 0.25 0.40 0.10 0.10 2.2-2.8 0.15-0.35 0.10 Remainder
5056 0.3 0.40 0.1 0.05-0.20 4.5-5.6 0.05-0.20 0.10 Remainder
6061 0.40-0.8 0.70 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 0.15 Remainder

style of crimped wire mesh



Specification of wire cloth infill panel:

  • Materials: stainless steel, mild steel, aluminum, iron, copper.
  • Hole shapes: square, rectangular.
  • Surface treatment: prime painted, galvanized, powder coated.
  • Colors: sliver, gray, white, black, blue, yellow, or other RAL colors.
  • Wire diameter: 0.02–2 mm.
  • Open area: 45% – 65%.
  • Technique: woven or welded.
  • Width of wire panel: 0.6–1.5 m.



Specification of stainless steel crimped wire mesh:



Material Stainless steel Opening Area 74%
Warp Diameter 2.75mm Mesh Thickness 4.8mm
Warp Pitch 19.75mm Surface clean &free oil
Weft Diameter 2.75mm Max Length 12mm
Weft Pitch 19.75mm Max Width 4m
Weight 4.86kgs/m2 Application Interior / Exterior



wire aperture open area weight kg
mm inch mm inch % stainless copper
1.5 0.059 10 0.394 75.61 2.48 2.80
1.5 0.059 12 0.472 79.01 2.12 2.39
1.6 0.063 10 0.394 74.32 2.80 3.16
2.0 0.079 10 0.394 69.44 4.23 4.77
2.0 0.079 15 0.591 77.85 2.99 3.37
2.6 0.102 15 0.591 72.64 4.88 5.51
3.0 0.118 25 0.984 79.72 4.08 4.61
3.5 0.138 25 0.984 76.95 5.46 6.16
4.0 0.157 19 0.748 68.24 8.83 9.97
4.7 0.185 25 0.984 70.85 9.45 10.67
4.8 0.189 19 0.748 63.73 12.29 13.88
4.8 0.189 25 0.984 70.38 9.82 11.09





Crimped wire mesh is used in the waste water, oil refining, mining, construction, safety and food processing industries for applications that require strength and large-hole filtering and screening. Pre-crimped wire cloth is also used in architectural and industrial design applications.



Application Of Crimped Square Wire Mesh

Used as fencing

Used as filter

As screen in mine, coal factory, construction, etc.

As BBQ wire mesh to roast for food or meat



Features of wire cloth infill panel:

  • Durability. It has sound structure due to lots of woven methods.
  • Attractive appearance. With various colors and crimp styles.
  • Safety. With high strength and loading capacity.
  • Anti-corrosion. It is made of corrosion resistance material and with anti-corrosion surface treatments.
  • Easy to install and maintenance-free.

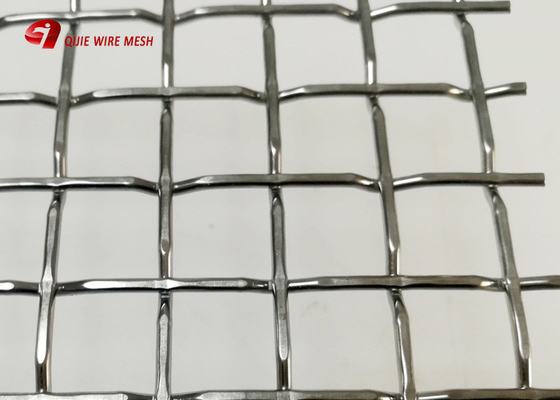

stainless steel crimped wire mesh stainless steel crimped wire mesh
stainless steel crimped wire mesh stainless steel crimped wire mesh
stainless steel crimped wire mesh stainless steel crimped wire mesh

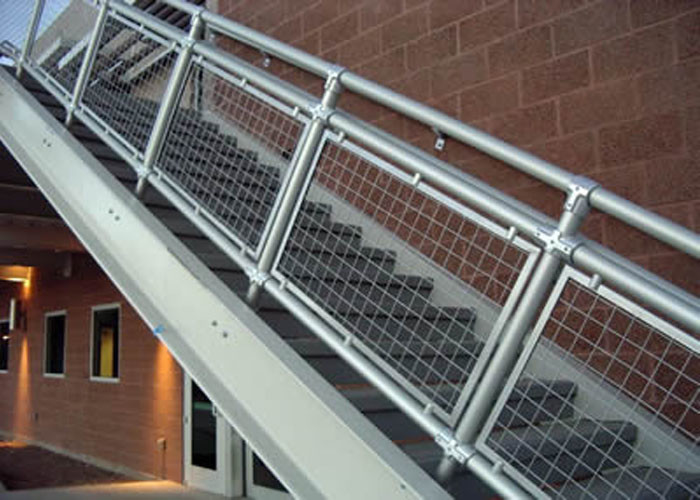

Woven wire cloth infill panels are used as stair railings in the store. aluminum crimped wire mesh
aluminum crimped wire mesh aluminum crimped wire mesh
