Product Details:
Payment & Shipping Terms:
|
| Type:: | Fencing, Trellis & Gates | Material:: | Iron Wire, Steel Wire, Hot-dipped Galvanized/Stainless Steel |
|---|---|---|---|
| Coil Weight: | 10kg | Shape:: | Concertina |
| Clips:: | 3-8 Per Coil | Razor Type:: | Cross Razor, Flat Type |
| Wire Dia:: | 2.5mm | Thickness:: | 0.45mm-0.65mm |
| High Light: | metal security fence panels,metal wire fence panels |
||
Hot dip galvanized razor wire welded mesh fence 2.9m for security mesh fence
1. Material: Razor wire is usually made of hot dipped galvanized wire and steel plate. Or stainless steel wire and plate.
2. Type: BTO-22, BTO-30, CBT-65, etc.
3. Advantages of welded razor wire fence:
· It is difficult to climb or cut off
· Robust welded structure;
· Corrosive resistance.
· Available in square or diamond hole shape.
Hot Dipped Galvanized Razor Wire
PVC Painting Razor Wire
| Reference Number | Blade Style | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
| BTO-12 |
|
0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-18 |
|
0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 |
|
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| CBT-65 |
|
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Diamond mesh hole size |
Weight per square meter (BTO-22) |
| 70mm*100mm | 2.96kg |
| 90mm*120mm | 2.36kg |
| 75mm*150mm | 2.53kg |
| 100mm*150mm | 2.04kg |
| 100mm*200mm | 1.90kg |
| 120mm*150mm | 1.81kg |
| 142mm*142mm | 1.70kg |
| 150mm*200mm | 1.42kg |
| 150mm*300mm | 1.27kg |
| 240mm*420mm | 0.82kg |

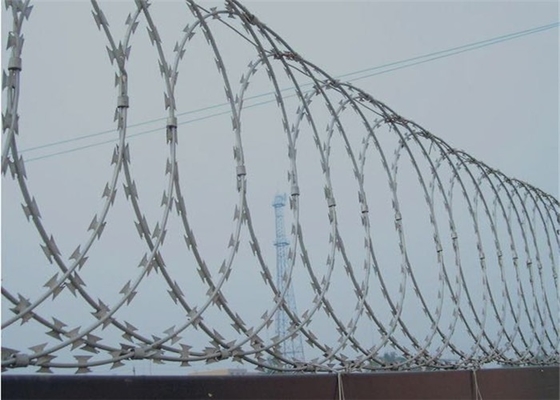

Welded razor mesh is often used as protective barrier fence for factories, gardens, prisons and properties, banks and other places where need high security. Provided in rolls or panels.

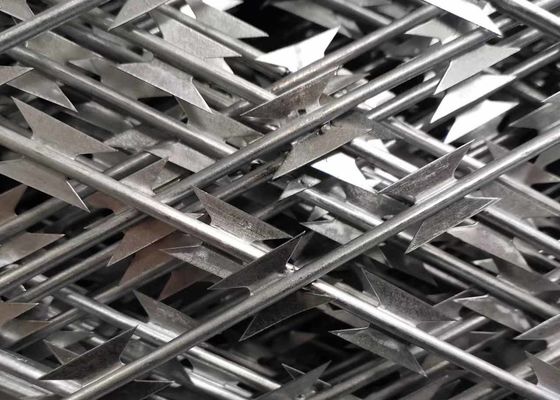

Welded razor mesh
Welded razor mesh package:
1. in pieces, by pallet.
2. in rolls, with waterproof paper.
3. or as customer's request.Galvanized welded razor mesh package:
1. in pieces, by pallet.
2. in rolls, with waterproof paper.
3. or as customer's request.
