Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | Hebei,China | Material:: | Stainless Steel Wire, Black/white Steel Wire; Lead Wire |
|---|---|---|---|
| Type:: | Crimped Wire Mesh | Application:: | Screen, Filters |
| Weave Style:: | Plain Weave | Technique:: | Woven |
| Packaing:: | Woven Bag | Openning:: | 2mm - 50mm |
| High Light: | stainless woven mesh,stainless woven wire mesh |
||

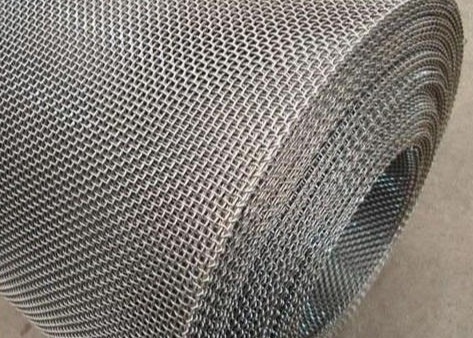

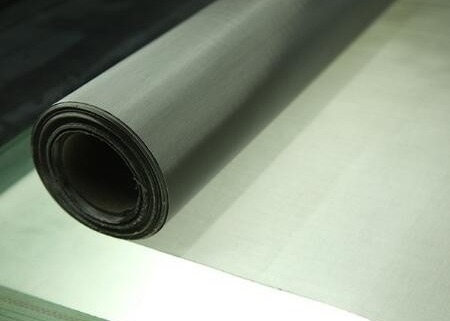

304 stainless steel woven wire mesh/high temperature stainless steel wire mesh
Product Description
SS Wire Mesh stainless steel wire mesh SUS304 woven wire mesh
Specifications
1.Through ISO9001:2000
2.304,316,304L,316L
3.Stainless steel wire mesh
4.302stainless wire mesh
stainless steel wire mesh
Material: From first class stainless steel wire materials in 304,304L,316,316L.
Procedures:Plain weave, twill weave, dutch weave.
Characteristics:Stainless Steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics.
Applications: uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.
Product Specification
| Specification of s.s. wire mesh | Wire dia.(mm) | Note of stainless steel wire mesh |
| 1meshx1mesh | 2.5 | Stainless steel crimped wire mesh(wire cloth) Material:304 |
| 2meshx2mesh | 1.8 | |
| 3meshx3mesh | 1.6 | |
| 4meshx4mesh | 1.0 | |
| 7meshx7mesh | 0.81 | |
| 8meshx8mesh | 10 | |
| 10meshx10mesh | 0.81 | |
| 12meshx12mesh | 0.71 | |
| 14meshx14mesh | 0.71 | Stainless steel wire mesh(wire cloth),plain weave Material: 304 |
| 20meshx20mesh | 0.35 | |
| 30meshx30mesh | 0.30 | |
| 40meshx40mesh | 0.23 | |
| 50meshx50mesh | 0.20 | |
| 60meshx60mesh | 0.15 | |
| 80meshx80mesh | 0.12 | |
| 100meshx100mesh | 0.10 | |
| 120meshx120mesh | 0.08 | |
| 150meshx150mesh | 0.06 | |
| 160meshx160mesh | 0.06 | Stainless steel wire mesh(wire cloth): twill weave Material:316 & 316L |
| 180meshx180mesh | 0.053 | |
| 200meshx200mesh | 0.053 | |
| 250meshx250mesh | 0.04 | |
| 280meshx280mesh | 0.04 | |
| 300meshx300mesh | 0.04 | |
| 325meshx325mesh | 0.035 | |
| 350meshx350mesh | 0.03 | |
| 400meshx400mesh | 0.03 | |
| 500meshx500mesh | 0.025 | |
|
Width for stainless steel wire mesh:0.6M~1.5M. The same mesh can be weaved with various wire diameter |
||
Related Products
Our Exhibition
Application projects:
The applications of stainless steel crimped wire mesh are almost unlimited. It is often used at high grade restaurants, high grade offices, five-star hotels, chain stores, national land mark buildings, opera theater, museum, palace, towers, villas, residential homes, commercial plaza, large mall, luxury KTV, pub, show rooms, coffee shop, music hall etc.
FAQ:
1. Can I get a sample?
Yes, we can provide you with 12cm*12cm size of sample for free.
2. How do you pack the mesh?
We pack the mesh with Air Bubble Film inside, wooden case or pallet outside.
3. Could you install the mesh for us?
Yes, we can deepen the drawing and install the mesh for you.
4. What is your payment terms?
We accept T/T or L/C at sight.
5. How long is the delivery time?
It takes 15-18days for the order under 50sqm.
