Welded Razor Barbed Wire Mesh

China Welded Razor Barbed Wire Mesh supplier
Welded Razor Barbed Wire Mesh supplier Welded Razor Barbed Wire Mesh supplier

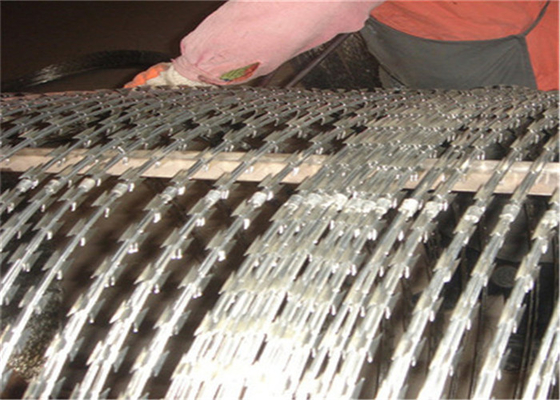

Large Image :  Welded Razor Barbed Wire Mesh

Product Details:

Place of Origin: HeBei,China
Brand Name: QiJie
Certification: Certification ISO2020102
Model Number: SGS20200102

Payment & Shipping Terms:

Minimum Order Quantity: 100 meters
Price: discuss
Packaging Details: Each coil wrapped with plastic film and weave bags/cartons/Bundle, then loading into the containers
Delivery Time: 15-30 days
Supply Ability: 50000 meters per month
Contact Now
Detailed Product Description
Raw Material:: Steel Wire Razor Type:: Cross Razor
Application:: Security Protection Surface Treatment:: Hot Dip Galvanized
Color:: Silver Feature:: Great Protection
Wire Diameter:: 1.6-3.2mm Barb Length: 10mm-65mm



Welded Razor Barbed Wire Mesh , BTO -22 Razor Wire Mesh For Security Protection



Low price BTO-22 Razor Wire Mesh Welded Razor Barbed Wire Mesh

Product details:

Razor wire is made with hot-dipped galvanized sheet or stainless steel sheet to perforate the sharpe blade and high tension galvanized steel wire or stainless steel wire as core wire. With the unique shape, razor wire is not easy to touch, and get the excellent protection. Razor wire fence as a new type of protection fence, is made of straight-blade netting welded together. It is mainly used for garden apartments, institutions, prisons, post, border protection and other confinement; also be used for security windows, high fence, fence.

The features

1. High protection, it is almost impossible to climb.

2. High-strength steel core very difficult to cut off.

3. Powerful security fence barriers neat appearance.

4. Extremely simple to install, needs three to four to install molding.

5. Anti-corrosion, aging, sunscreen, weather.



Material


Electro galvanized core wire and blade

hot-dipped galvanized core wire and blade

stainess steel core wire and blade

PVC coated core wire and blade

Hot-dipped galvanized core wire+stainless steel blade

th (1).jpg

Specification Of Barbed Wire:

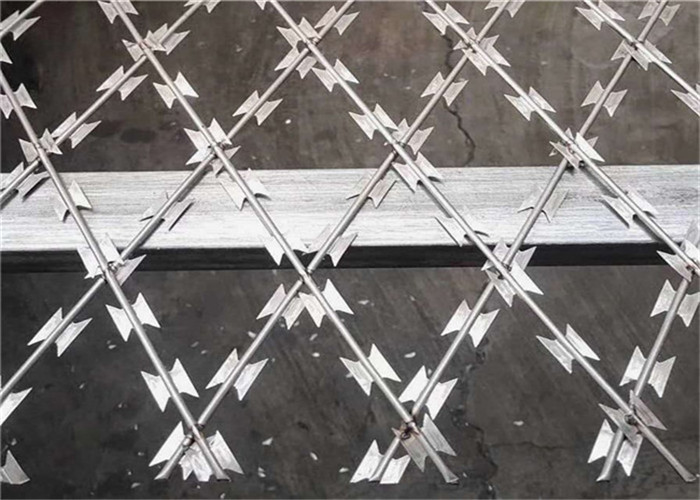

Welded razor wire mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll form for transport. Welded Razor Wire Mesh is used in operations to pave the field after the installation of a blade barrier. This product can protect you and your property, and ensures the safety of the protective barriers.

This welded razor wire mesh security fence product is almost impossible to climb or cut off with the standard tools, also it has a neat appearance.

Welded razor wire mesh is installed in various parts of the world's airports, military bases, water substation, the border fence, oil depots, factories and so on.

Welded razor wire fence Hole Type:

1. Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm.

2. Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.

Peference

number

Thickness

(mm)

Wire dia

(mm)

Barb length

(mm)

Bard width

(mm)

Bard spacing

(mm)

BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2



Barbed Tape Wire Specification
Loop Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9m(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type


Product Advantage

1. Use a long time;
2. Easy installation;
3 .Strong Protection;
4. Economical and practical

Application

1. Concertina Razor wire can be installed in the form of barbed tape wire or concertina coil to walls or fencing.
2. Concertina Razor wire is widely used to manufacture the wire fence for a fencing system or security system.
3. Concertina Razor wire is applicable in military field,airports fencing,prisons protection,detension houses, government buildings and other national security facilities.

Packing method of Razor Barbed Wire

1. Wrapped with water-proof paper inside,plastic woven bag outside.
2. Packed with carton box.
3. according to your requirement

Since its establishment, shuanghua trading co., ltd. has been adhering to the business philosophy of "customer first, product first".And strict production customs, efforts to provide customers with more quality products.Shuanghua trading co., LTD. Welcomes new and old customers from all over the world to discuss business.
