Rectangular W0.5m SGS Galvanised Steel Mesh Panels

Rectangular W0.5m SGS Galvanised Steel Mesh Panels
Rectangular W0.5m SGS Galvanised Steel Mesh Panels Rectangular W0.5m SGS Galvanised Steel Mesh Panels Rectangular W0.5m SGS Galvanised Steel Mesh Panels Rectangular W0.5m SGS Galvanised Steel Mesh Panels

Large Image :  Rectangular W0.5m SGS Galvanised Steel Mesh Panels

Product Details:

Place of Origin: Hebei, China
Brand Name: Qijie
Certification: ISO, SGS
Model Number: QJ-SSW-08

Payment & Shipping Terms:

Minimum Order Quantity: 10 rolls
Price: USD 50-200/Roll
Packaging Details: water-proof paper and plastic bag
Delivery Time: 8-10 working days
Payment Terms: 30%TT
Supply Ability: 2000 rolls/month
Detailed Product Description
Hole Shape: Square, Rectangular Wire Gauge: 0.3mm-8.0mm
Application: Construction Wire Mesh,building Type: Welded Mesh,Panel Or Roll
Width: 0.5m To 2.2m Length: 30m,50m,10m,25m
Usage: Building,construction Packing: Waterproof Paper,Pallet,In Roll,Panel
Color: Silver Feature: Waterproof,Anti-rust,Anti-corrosion
Name: Welded Wire Mesh Hole Size: 5/8'' As Customer Request
Wire Diameter: 1.0mm~4.50mm
High Light:

rectangular galvanised steel mesh panels

,

w0.5m galvanised steel mesh panels

,

sgs galvanised steel mesh panels

Low Carbon Steel Protecting Mesh Galvanized Welded Wire Mesh Panel



Welded wire mesh, or welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.

Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.



Material: high quality low carbon steel wire, stainless steel wire, PVC coated wire



Character: Welded wire mech with its good corrosion resistance and oxidation resistance, surface passivation, plasticizing process, smooth surface, uniform mesh, solder joints firmly.



Application: Widely used in dustry, agriculture, construction, transportation, mining and other industries. Mainly used in general building external wall, concrete, highirise residential and so on, in the structure of heat preservation system plays an important role.

Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface,
firm structure, be used extensively in building, food, agriculture and so on.
Assortments available:Welded Stainless Steel Wire Mesh Panels,Galvanized Welded Mesh Panels,Hot-dip Zinc Plating Welded Mesh Panels.

Products Description
Specification of welded wire mesh
Aperture (inch)
Aperture(mm)
Wire diameter(mm)
2"X2"
50x50mm
3mm,3.5mm,4mm
2"x3"
50x75mm
3mm,4mm,5mm
2"x4"
50x100mm
3mm,4mm,5mm
3x3"
75x75mm
3mm,4mm,5mm
3"x4"
75x100mm
3mm,4mm,5mm
4x4"
100x100mm
4mm,5mm,6mm



Specification List of Welded Wire Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

Welding style:
1-Electro galvanized wire mesh(welded before galvanized, welded after galvanized)
2-Hot-dipped galvanized wire mesh(welded before galvanized, welded after galvanized)
3-PVC coated welded wire mesh
4- stainless steel wire welded mesh

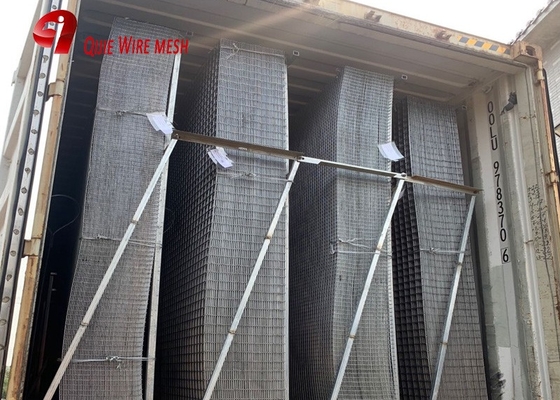

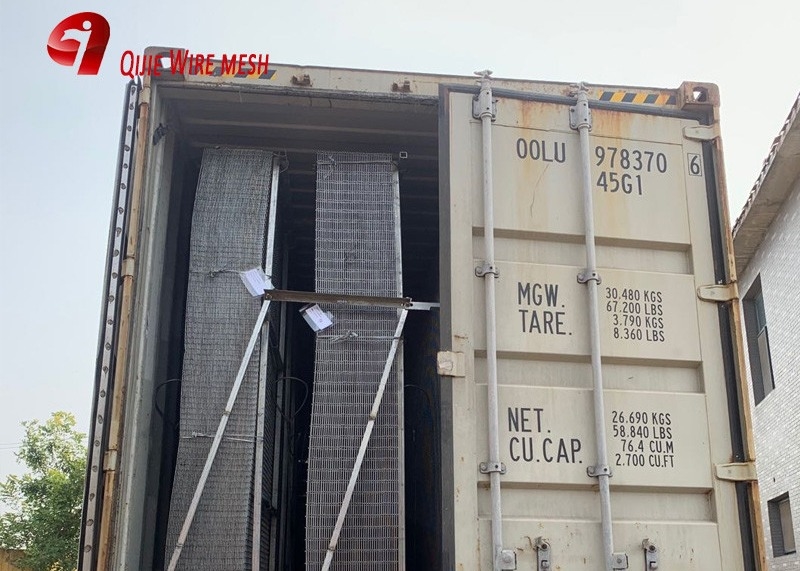

Packaging & Shipping

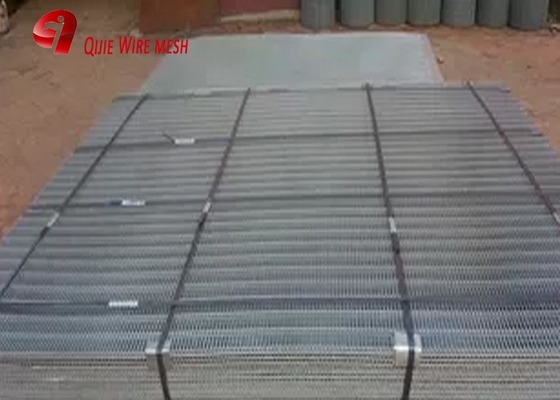

Packed in rolls :packed water-proof paper in bulk or by pallet
Packed in pieces: Plastic inside and then by pallet



welded wire mesh panels



welded wire mesh sheet
