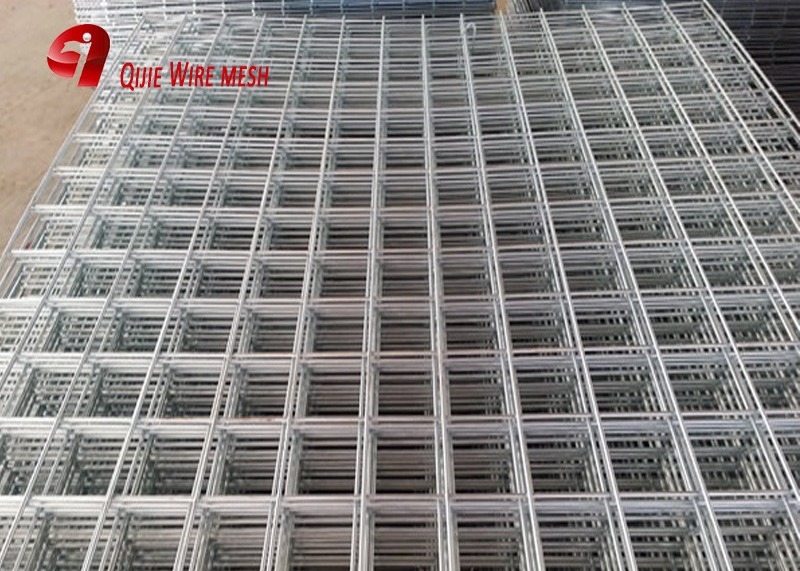

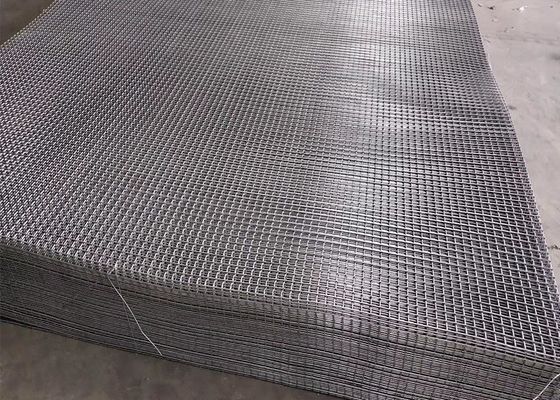

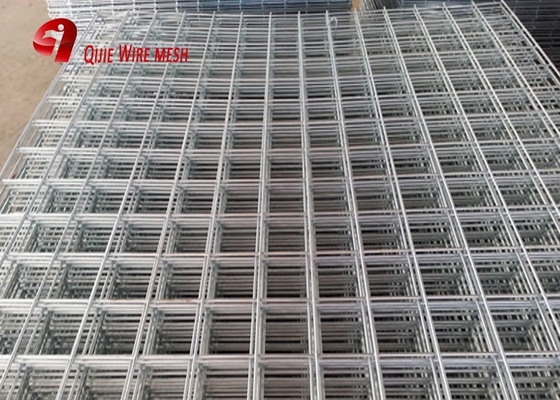

Low Carbon Steel 50x50mm 0.3mm Galvanised Wire Panels

Low Carbon Steel 50x50mm 0.3mm Galvanised Wire Panels
Low Carbon Steel 50x50mm 0.3mm Galvanised Wire Panels Low Carbon Steel 50x50mm 0.3mm Galvanised Wire Panels

Large Image :  Low Carbon Steel 50x50mm 0.3mm Galvanised Wire Panels

Product Details:
Place of Origin: Hebei, China
Brand Name: Qijie
Certification: ISO, SGS
Model Number: QJ-SSW-08
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: USD 50-200/Roll
Packaging Details: water-proof paper and plastic bag
Delivery Time: 8-10 working days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 2000 rolls/month
Detailed Product Description
Wire Gauge: 0.3mm-8.0mm Application: Construction Wire Mesh,building
Type: Welded Mesh,Panel Or Roll Width: 0.5m To 2.2m
Length: 30m,50m,10m,25m Usage: Building,construction
Packing: Waterproof Paper,Pallet,In Roll,Panel Color: Silver
Feature: Waterproof,Anti-rust,Anti-corrosion Name: Welded Wire Mesh
Hole Size: 5/8'' As Customer Request Wire Diameter: 1.0mm~4.50mm
High Light:

50x50mm galvanised wire panels

,

50x50mm galvanised mesh panels

,

0.3mm galvanised wire panels



Low Carbon Steel Welded 50 X 50mm Galvanized Steel Welded Wire Mesh Panel



Welded wire mesh
welded wire mesh
is welded form superior low carbon steel wire and then galvanized and PVC coated or stainless steel wire and then welded. .It features smooth surface,uniform mesh,high stability and great corrosion resistance.



Material: high tensile steel deformed bars, low carbon steel rod Q195 or Q235.
Wire diameter: 3mm-- 16mm
Panels opening: the Horizontal from 50mm to 200mm, the Vertical from 25.mm to 500mm

reinforcing welded mesh Panel length: 1.0m to 5.8m
reinforcing welded meshPanel width: 0.5m to 2.3m
Features: welded concrete reinforcement meshes are made from high tensile steel deformend bars. It can stretch the concrete closely, solid construction, easy handling.
Welding points: welded by advanced heavy load welding machine, which gives the wires very strong welding points. Every point was carefully examined after welded, and all problems will be amended by the examination.
Packing: in bundles, bulk in the container or as per request.



Welding style:
1-Electro galvanized wire mesh(welded before galvanized, welded after galvanized)
2-Hot-dipped galvanized wire mesh(welded before galvanized, welded after galvanized)
3-PVC coated welded wire mesh
4- stainless steel wire welded mesh

Specification:


Specification List of Welded Wire Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16




Normal Specification List of Welded Wire Mesh Panel
Opening
Wire Diameter(mm)
In inch In metric unit(mm)
1"x1" 25mm x 25mm 2.5mm,2.0mm,1.8mm,1.6mm
2"x2" 50mm x 50mm 2.5mm,2.0mm,1.8mm,1.6mm
2"x3" 50mm x 70mm 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4" 50mm x 100mm 6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6" 50mm x 150mm 6.0mm,5.0mm,4.0mm,3.0mm
2"x8" 50mm x 200mm 6.0mm,5.0mm,4.0mm,3.0mm
3"x3" 75mm x 75mm 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4" 75mm x 100mm 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4" 100mm x 100mm 6.0mm,5.0mm,4.0mm,3.0mm
6"x6" 150mm x 150mm 6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:
1,Standard Panel length: 0.5-5.8m; width:0.5m to 2.3m
2,Special sizes available at request.


Welded wire mesh Use
Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
Welded wire mesh can be processed into wire mesh fence which can be used in Garden,yard,ground,railway,highway.

Packaging & Shipping
Packed in rolls :packed water-proof paper in bulk or by pallet
Packed in pieces: Plastic inside and then by pallet

welded wire mesh sheet

welded wire mesh
