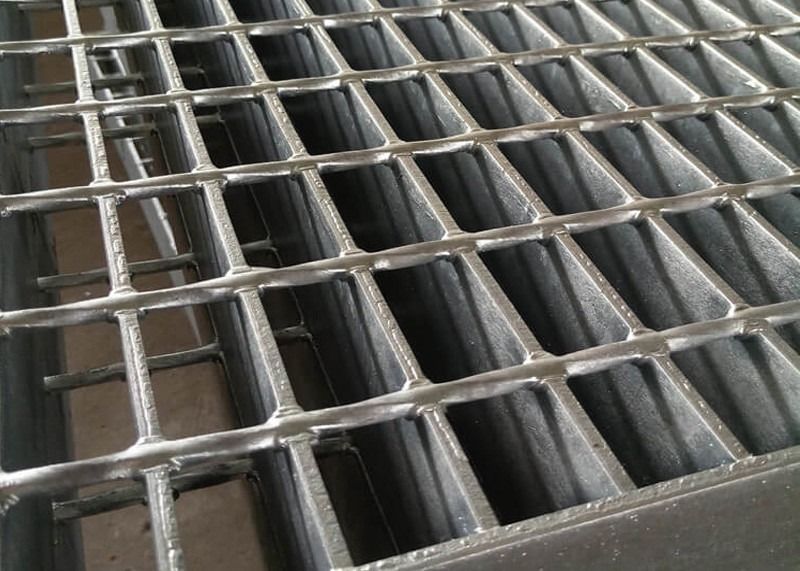

Durable Platform Steel Grating Galvanized Steel Grating Welded Steel Grating

Large Image : Durable Platform Steel Grating Galvanized Steel Grating Welded Steel Grating

Product Details:

Place of Origin:	China
Brand Name:	Dimpled Hole Metal Sheets
Model Number:	Dimpled Hole Metal Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Chemical Composition:	Fe, C, Si, Mn, S, P	Alloy Or Not:	Non-Alloy
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Villa
Surface Treatment:	Hot-DIP Galvanizing, Painting Or Untreated	Grate Length:	1000mm
Grate Width:	800mm	Bearing Bar Width X Thickness:	25x3mm
Bearing Bar Shape:	Plain, Serrated I Bar Type Style Steel Grating	Cross Bar Shape:	Round,twisted,bar Shape
Mesh Size:	30x100mm
Highlight:	Galvanized Platform Steel Grating , Welded Platform Steel Grating , Durable Platform Steel Grating

Durable Platform Steel Grating Galvanized Steel Grating Welded Steel Grating

Steel bar grating is also known as steel grating. Steel grating is made up of parallel bars that are connected together with perpendicular bars. The bars are most commonly connected through machine pressure welding or manual welding, as the case may be. However, there are other ways of joining the bars together. Alternatives include riveting, close meshing (swaging), and press-locking. The most economical method of joining is determined by the materials used and the bars' thickness. Steel bar grating is usually made out of carbon steel orstainless steel. It has a very high ratio of strength-to-weight and a lot of open space, making it a widely used option for industrial flooring. However, it is also used for things such as fire escapes, street drains, and bridges.

Durable Platform Steel Grating Galvanized Steel Grating Welded Steel Grating 0

Durable Platform Steel Grating Galvanized Steel Grating Welded Steel Grating 1

At Tec-Sieve, both press welded steel bar grating panels and press locked steel bar grating panels are manufactured. Our press welded steel bar grating panels are ideal for most industrial applications, including without limitation the oil and gas industry, the petro-chemical industry, the mining industry and in power stations, so now we focus on our press welded steel bar grating panels in the following.

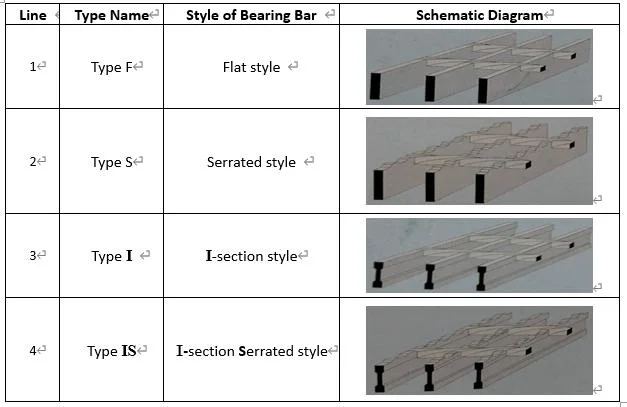

1. Types of Press Welded Steel Bar Grating Panels by the Style of Bearing Bars
Durable Platform Steel Grating Galvanized Steel Grating Welded Steel Grating 2

Note: At Tec-Sieve, in addition to cold twisted square cross bars, round cross bars or ribbed cross bars are also available upon request.
2. Dimensions of Bearing Bars and Cross Bars

Nominal Size and Allowable Tolerance of Bearing Bars			Size of Cross Rods
Nominal Size (mm)		Allowable Tolerance (mm) (Refer to YB/T4001.1-2007)	Section Area (mm2)
Thickness	3-10	+0.2/-0.4	20
Depth	10-50	+0.3/-0.9	32
	>50-75	+0.4/-1.2	40
	>75-100	+0.7/-1.7	40

3. Specification Table of Type F Press Welded Steel Bar Grating Panels

Specification Code (Simplified Version)	Size of Bearing Bars		Bearing Bar Spacing (mm)	Cross Bar Spacing (mm)	Nominal Weight (kg/m2)
Specification Code (Simplified Version)	Depth (mm)	Thickness (mm)	Bearing Bar Spacing (mm)	Cross Bar Spacing (mm)	Nominal Weight (kg/m2)
G655/15/100	65	5	15	100	195.90
G655/15/50	65	5	15	50	199.00
G605/15/100	60	5	15	100	181.10
G605/15/50	60	5	15	50	184.20
G555/15/100	55	5	15	100	166.30
G555/15/50	55	5	15	50	169.30
G505/15/100	50	5	15	100	151.40
G505/15/50	50	5	15	50	154.50
G455/15/100	45	5	15	100	136.60
G455/15/50	45	5	15	50	139.60
G405/15/100	40	5	15	100	121.70
G405/15/50	40	5	15	50	124.80
G403/15/100	40	3	15	100	75.60
G403/15/50	40	3	15	50	78.70
G355/15/100	35	5	15	100	106.90
G355/15/50	35	5	15	50	110.00
G35315/100	35	3	15	100	66.60
G353/15/50	35	3	15	50	69.60
G325/15/100	32	5	15	100	98.00
G325/15/50	32	5	15	50	101.00
G323/15/100	32	3	15	100	61.10
G323/15/50	32	3	15	50	64.20
G255/15/100	25	5	15	100	77.20
G255/15/50	25	5	15	50	80.30
G253/15/100	25	3	15	100	48.40
G253/15/50	25	3	15	50	51.50
G205/15/100	20	5	15	100	62.40
G205/15/50	20	5	15	50	65.50
G203/15/100	20	3	15	100	39.30
G203/15/50	20	3	15	50	42.40
G605/20/100	60	5	20	100	135.30
G605/20/50	60	5	20	50	138.30
G555/20/100	55	5	20	100	124.30
G555/20/50	55	5	20	50	127.30
G505/20/100	50	5	20	100	113.30
G505/20/50	50	5	20	50	116.30
G503/20/100	50	3	20	100	70.80
G503/20/50	50	3	20	50	73.80
G455/20/100	45	5	20	100	102.20
G455/20/50	45	5	20	50	105.20
G405/20/100	40	5	20	100	91.20
G405/20/50	40	5	20	50	94.20
G403/20/100	40	3	20	100	57.30
G403/20/50	40	3	20	50	60.30
G355/20/100	35	5	20	100	80.20
G355/20/50	35	5	20	50	83.20
G353/20/100	35	3	20	100	50.50
G353/20/50	35	3	20	50	53.50
G325/20/100	32	5	20	100	73.60
G325/20/50	32	5	20	50	76.60
G323/20/100	32	3	20	100	46.40
G323/20/50	32	3	20	50	49.40
G255/20/100	25	5	20	100	58.10
G255/20/50	25	5	20	50	61.10
G253/20/100	25	3	20	100	36.90
G253/20/50	25	3	20	50	39.90
G205/20/100	20	5	20	100	47.10
G205/20/50	20	5	20	50	50.10
G203/20/100	25	3	20	100	30.10
G203/20/50	25	3	20	50	33.10
G655/30/100	65	5	30	100	100.40
G655/30/50	65	5	30	50	103.40
G605/30/100	60	5	30	100	92.90
G605/30/50	60	5	30	50	95.90
G555/30/100	55	5	30	100	85.40
G555/30/50	55	5	30	50	88.40
G505/30/100	50	5	30	100	77.90
G505/30/50	50	5	30	50	80.90
G503/30/100	50	3	30	100	49.60
G503/30/50	50	3	30	50	52.60
G455/30/100	45	5	30	100	70.40
G455/30/50	45	5	30	50	73.40
G405/30/100	40	5	30	100	62.90
G405/30/50	40	5	30	50	65.60
G403/30/100	40	3	30	100	40.30
G403/30/50	40	3	30	50	43.30
G355/30/100	35	5	30	100	55.40
G355/30/50	35	5	30	50	58.40
G353/30/100	35	3	30	100	35.60
G353/30/50	35	3	30	50	38.60
G325/30/100	32	5	30	100	50.90
G325/30/50	32	5	30	50	53.90
G323/30/100	32	3	30	100	32.80
G323/30/50	32	3	30	50	35.80
G255/30/100	25	5	30	100	40.40
G255/30/50	25	5	30	50	43.40
G253/30/100	25	3	30	100	26.30
G253/30/50	25	3	30	50	29.30
G205/30/100	20	5	30	100	33.00
G205/30/50	20	5	30	50	36.00
G203/30/100	20	3	30	100	21.60
G203/30/50	20	3	30	50	24.60
G655/40/100	65	5	40	100	78.70
G655/40/50	65	5	40	50	81.70
G605/40/100	60	5	40	100	72.90
G605/40/50	60	5	40	50	75.90
G555/40/100	55	5	40	100	67.10
G555/40/50	55	5	40	50	70.10
G505/40/100	50	5	40	100	61.20
G505/40/50	50	5	40	50	64.20
G503/40/100	50	3	40	100	39.60
G503/40/50	50	3	40	50	42.60
G455/40/100	45	5	40	100	55.40
G455/40/50	45	5	40	50	58.40
G405/40/100	40	5	40	100	49.60
G405/40/50	40	5	40	50	52.60
G403/40/100	40	3	40	100	32.30
G403/40/50	40	3	40	50	35.30
G355/40/100	35	5	40	100	43.80
G355/40/50	35	5	40	50	46.80
G353/40/100	35	3	40	100	28.60
G353/40/50	35	3	40	50	31.60
G325/40/100	32	5	40	100	40.30
G325/40/50	32	5	40	50	43.30
G323/40/100	32	3	40	100	26.40
G323/40/50	32	3	40	50	29.40
G255/40/100	25	5	40	100	32.10
G255/40/50	25	5	40	50	35.10
G253/40/100	25	3	40	100	21.30
G253/40/50	25	3	40	50	24.30
G205/40/100	20	5	40	100	26.30
G205/40/50	20	5	40	50	29.30
G203/40/100	20	3	40	100	17.60
G203/40/50	20	3	40	50	20.60
G655/60/50	65	5	60	50	49.00
G555/60/50	55	5	60	50	42.40
G505/60/50	50	5	60	50	39.00
G455/60/50	45	5	60	50	35.70
G405/60/50	40	5	60	50	32.30
G403/60/50	40	3	60	50	21.70
G325/60/50	32	5	60	50	27.00
G323/60/50	32	3	60	50	18.50
G255/60/50	25	5	60	50	22.30
G253/60/50	25	3	60	50	15.70
G205/60/50	20	5	60	50	19.00

Note: Bearing bar spacing means bearing bar centers or pitch; cross bar spacing means cross bar centers or pitch.
4. Specification Table of Heavy Duty Type F Welded Steel Bar Grating Panels

Specification Code (Simplified Version)	Size of Bearing Bars		Bearing Bar Spacing (mm)	Cross Bar Spacing (mm)	Nominal Weight (kg/m2)
Specification Code (Simplified Version)	Depth (mm)	Thickness (mm)	Bearing Bar Spacing (mm)	Cross Bar Spacing (mm)	Nominal Weight (kg/m2)
G10010/40/100	100	10	40	100	234.90
G1008/40/100	100	8	40	100	191.70
G908/40/100	90	8	40	100	173.10
G808/40/100	80	8	40	100	154.40
G758/40/100	75	8	40	100	145.10
G756/30/100	75	6	30	100	140.10
G756/40/100	75	6	40	100	110.10
G706/30/100	70	6	30	100	131.10
G706/40/100	70	6	40	100	103.20

Note: Bearing bar spacing means bearing bar centers or pitch; cross bar spacing means cross bar centers or pitch.
5 Specification Table of Type I Press Welded Steel Bar Grating Panel

Specification Code (Simplified Version)	Size of Bearing I Bars (mm)				I Bar Spacing (mm)	Cross Bar Spacing (mm)	Nominal Weight (kg/m2)
Specification Code (Simplified Version)	I Bar Height (Width)	Flange Thickness	Flank Thickness	Flange Width	I Bar Spacing (mm)	Cross Bar Spacing (mm)	Nominal Weight (kg/m2)
G757/30/50PWI	75	7	4	12	30	50	126.10
G757/30/100PWI	75	7	4	12	30	100	120.70
G657/30/50PWI	65	7	4	10	30	50	110.10
G657/30/100PWI	65	7	4	10	30	100	104.80
G607/30/50PWI	60	7	4	10	30	50	99.10
G607/30/100PWI	60	7	4	10	30	100	96.10
G557/30/50PWI	55	7	4	8.5	30	50	90.30
G557/30/100PWI	55	7	4	8.5	30	100	87.30
G507/30/50PWI	50	7	4	8	30	50	83.20
G507/30/100PWI	50	7	4	8	30	100	80.20
G505/30/50PWI	50	5	3	8.5	30	50	62.80
G505/30/100PWI	50	5	3	8.5	30	100	59.80
G445/30/50PWI	44	5	3	8	30	50	56.50
G445/30/100PWI	44	5	3	8	30	100	53.50
G385/30/50PWI	38	5	3	7	30	50	49.90
G385/30/100PWI	38	5	3	7	30	100	46.90
G325/30/50PWI	32	5	3	6	30	50	43.30
G325/30/100PWI	32	5	3	6	30	100	40.30
G255/30/50PWI	25	5	3	4.5	30	50	35.10
G255/30/100PWI	25	5	3	4.5	30	100	32.10
G757/40/50PWI	75	7	4	12	40	50	101.00
G757/40/100PWI	75	7	4	12	40	100	95.60
G657/40/50PWI	65	7	4	10	40	50	88.50
G657/40/100PWI	65	7	4	10	40	100	83.20
G607/40/50PWI	60	7	4	10	40	50	78.90
G607/40/100PWI	60	7	4	10	40	100	75.90
G557/40/50PWI	55	7	4	8.5	40	50	71.90
G557/40/100PWI	55	7	4	8.5	40	100	68.90
G507/40/50PWI	50	7	4	8	40	50	66.40
G507/40/100PWI	50	7	4	8	40	100	63.40
G505/40/50PWI	50	5	3	8.5	40	50	50.40
G505/40/100PWI	50	5	3	8.5	40	100	47.40
G445/40/50PWI	44	5	3	8	40	50	45.50
G445/40/100PWI	44	5	3	8	40	100	42.50
G385/40/50PWI	38	5	3	7	40	50	40.30
G385/40/100PWI	38	5	3	7	40	100	37.30
G325/40/50PWI	32	5	3	6	40	50	35.10
G325/40/100PWI	32	5	3	6	40	100	32.10
G255/40/50PWI	25	5	3	4.5	40	50	28.70
G255/40/100PWI	25	5	3	4.5	40	100	25.80

Note: I bar spacing means bearing bar centers or pitch; cross bar spacing means cross bar centers or pitch.

Durable Platform Steel Grating Galvanized Steel Grating Welded Steel Grating 3

product feature

Data saving	under the same load conditions, the most efficient way to save data, and accordingly, the data of the support structure can be reduced.
Reduce investment	save data, save labor, save time, no cleaning and protection.
The construction is simple	the steel grid plate device is clamped or welded on the pre-installed support, and one person can finish it
Save time	the product does not need to be reprocessed on site, that is, the device is very fast.
Durable	after hot dip zinc anticorrosion treatment before leaving the factory, the impact and pressure resistance can be strong
Modern bearing	beautiful appearance, standard planning, ventilation and light, giving people a modern feeling of all circulation
Anti-fouling	large discharge, no rainwater, snow and dust.
Reduce wind resistance	because of good ventilation, small wind resistance in strong winds, reduce wind damage.
Losion-proof	anti-skid performance and other functions.
Simple planning	no small support beam, simple structure, simplified planning; No need to plan steel grid details, only indicate the type can be, the factory can plan for customers.

Durable Platform Steel Grating Galvanized Steel Grating Welded Steel Grating 4

Tag:

Contact Person: Mr. Devin Wang

Fax: 86-318-7896133

Other Products

Outdoor Hot Dipped Galvanized Steel Grating For Fencing

Chemical Composition: Fe, C, Si, Mn, S, P

Alloy Or Not: Non-Alloy

Project Solution Capability: graphic design, 3D model design, total solution for projects

Application: Villa

Press Locked Galvanized Steel Grating Expanded Metal Mesh 40 X 100 Mm Pitch

Material: Mild steel sheet

Pitch: 40 x 100 mm

Type: 25 x 3.0 mm

Surface finish: Galvanized

Safety 96" Length Aluminum Chequered Plates Anti Skid Perforated Dimpled Hole Metal Heavy Duty

Material: steel/aluminum, Stainless steel (304, 316)

thickness: 2.0mm or 2.5mm

size: 2400 x 1200mm

Surface treatment: Hot Dipped Galvanized,Galvanized,painted,painting

30X5mm Serrated Steel Grating Folding Campfire Grill Heavy Duty Stainless / Galvanized for Bar

Chemical Composition: Fe, C, Si, Mn, S, P

Alloy Or Not: Non-Alloy

Project Solution Capability: graphic design, 3D model design, total solution for projects

Application: Villa

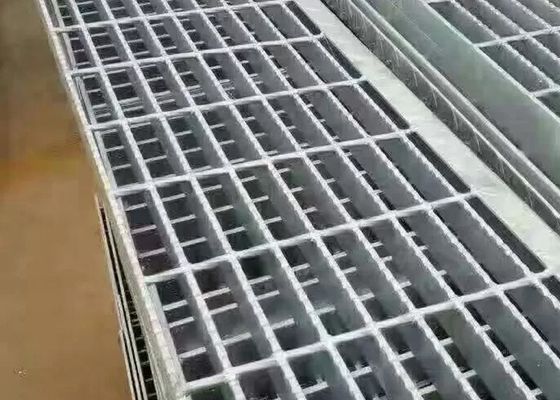

Galvanized Steel Grating Welded Steel Bar 25x3 800x1000 Metal Grid Plate For Platform Walkway

Chemical Composition: Fe, C, Si, Mn, S, P

Alloy Or Not: Non-Alloy

Project Solution Capability: graphic design, 3D model design, total solution for projects

Application: Villa
