Material: | Hot Dipped Galvanised Steel Wire & Posts | Wire Diameter: | 2.5 Mm, 3.05 Mm, 3.76 Mm, 4.88 Mm |
---|---|---|---|
Mesh Openning: | 50x50 Mm, 60x60 Mm | Height: | 1.5 M, 1.8 M, 2.4 M |
Length: | 15.2 M | Zinc Mass: | 360 G, 610 G |
Function: | Security Fencing,site Fence | Application:: | Fence Mesh, Protecting Mesh, Cages |
Highlight: | chain link fence panels,chain link fence privacy screen |

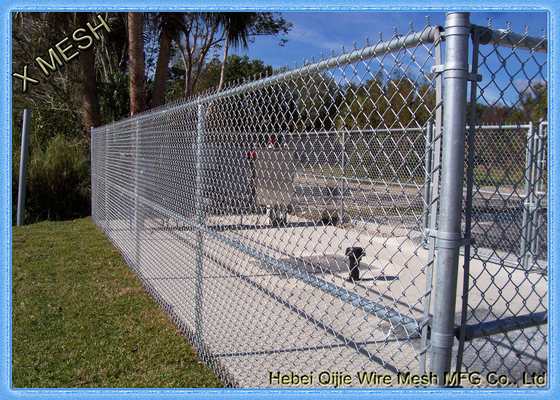

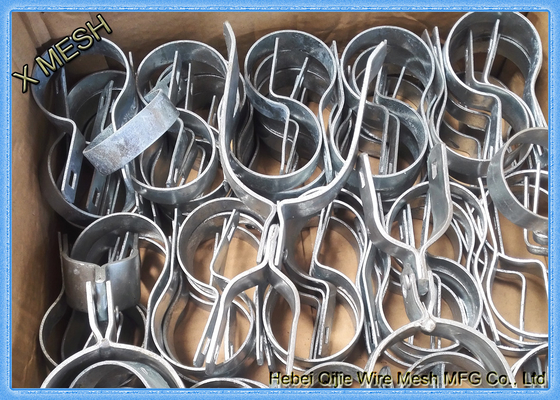

ASTM A 392 standard Galvanized Chain Link Fence with Posts and Installing Accessories
Chain link fence, also referred to as chain-wire fence, cyclone fence, hurricane fence, or diamond mesh fence , is one of the most popular choices of fence for both light residential to heavy commercial fence applications. It is woven by a way that the wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern fence.

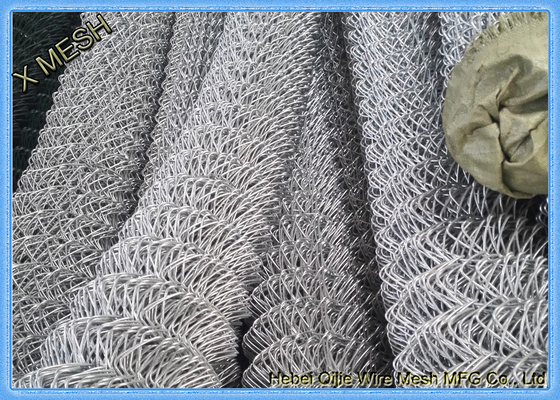

Chain link fence is most commonly available galvanized which is silver in color. Chain link fence fabric is typically produced in 50' rolls’ length(15.24m), and the most popular type is 6, 9, 11 gauge wire with 2x2 inches(50x50mm) mesh size, and it is ideal for industrial and commercial fence applications. The fabric is galvanized with a 1.2 oz.(366 grams) coating meets ASTM A 392-03 Class I and we also offer some sizes with a 2.0 oz.(610 grams) zinc coating meets ASTM A 392 Type I (Class II).
Specification:
Nominal coated wire diameter |
Available variance | Zinc coating weight, min. | Breaking strength minimum |
|||||||
Class 1 | Class 2 | |||||||||
ga | inch | mm | inch | mm | oz/ft2 | g/m2 | oz/ft2 | g/m2 | lbf | Newtons |
6 | 0.192 | 4.88 | +/- 0.005 | +/-0.13 | 1.20 | 366 | 2.00 | 610 | 2,170 | 9,650 |
9 | 0.148 | 3.76 | +/- 0.005 | +/-0.13 | 1.20 | 366 | 2.00 | 610 | 1,290 | 5,740 |
11 | 0.120 | 3.05 | +/- 0.005 | +/-0.13 | 1.20 | 366 | x | x | 380 | 1,690 |
A typical specification list of 9 gauge chain link fence fabric
Chain Link Fence Fabric - 9 Gauge Residential and Commercial Galvanized | |||
Fabric Galvanized 9 gauge |
Code | Size (Mesh x Gauge x Height) |
Ends |
CL-9X36-G | 2 x 9 x 36 | KxK | |
CL-9X42-G | 2 x 9 x 42 | KxK | |
CL-9X48-G | 2 x 9 x 48 | KxK | |
CL-9X60-G | 2 x 9 x 60 | KxK | |
CL-9X72-G | 2 x 9 x 72 | KxB | |
CL-9X84-G | 2 x 9 x 84 | KxB | |
CL-9X96-G | 2 x 9 x 96 | KxB | |
CL-9X120-G | 2 x 9 x 120 | KxB | |
CL-9X144-G | 2 x 9 x 144 | KxB |
Drawing of chain link fence:
Different RAL colors are available
Type of selvege--Twist, knuckle, twist & knuckle
Advantage of chain link fencing
1>The fence is made of woven steel wire, which is one of the most commonly used and versatile of all the fencing fabrics.
2>It is normally available in a variety of wire gauges and mesh sizes to suit individual applications.
3>All chain link rolls come complete with line wires and with knuckled edges.
4>Barbed (protruding) edges increase the security of the fencing and are available to order.
Features of Chain Link Fence:
- Materials: Low carbon steel wire, Stainless steel wire, Aluminum alloy wire.
- Surface Treatment: Electro galvanized, Hot-dipped galvanized, Galva.+ PVC coated.
- Edge Style: Twisted barb edge, Closed edge.
- Packing: Wrap up both edges with woven bag, or with Pallet, or as customer's request.
- Application: Sports field, River banks, Construction and residence, also animal fencing.

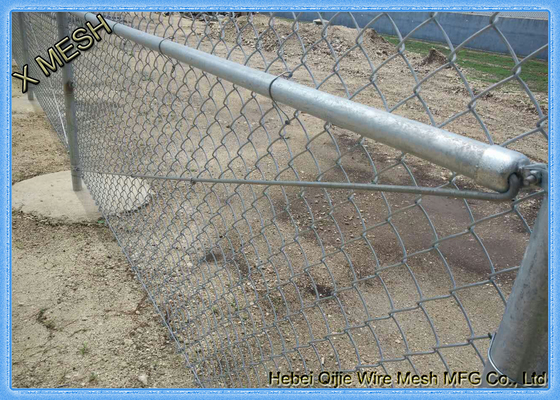

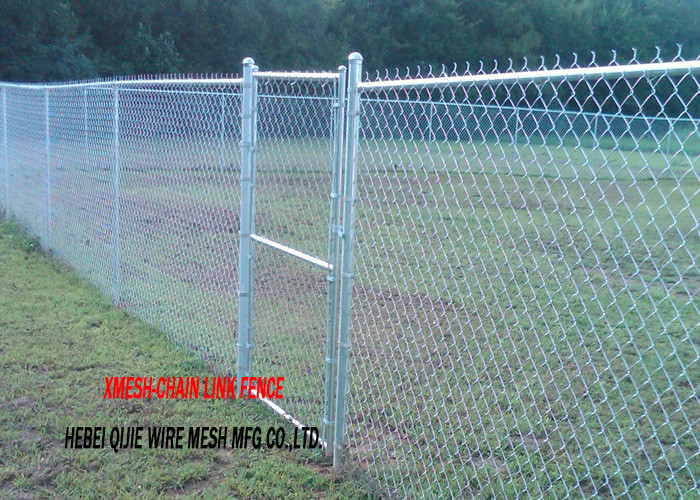

Install of chain link fence:
