BTO-22 Hot Dipped Galvanized Steel Concertina Razor Wire with Welded Mesh for Security Fencing and Easy Installation

Large Image : BTO-22 Hot Dipped Galvanized Steel Concertina Razor Wire with Welded Mesh for Security Fencing and Easy Installation

Product Details:

Place of Origin:	HeBei,China
Brand Name:	QiJie
Certification:	qijie
Model Number:	qijie

Payment & Shipping Terms:

Minimum Order Quantity:	1 rolls
Price:	Discuss
Packaging Details:	Wooden carton
Delivery Time:	within 7-30 days
Payment Terms:	30%TT in advance,Balance before loading
Supply Ability:	1500 Roll/Rolls per Week

Contact Now

Detailed Product Description

Material:	Stainless Steel Wire, 316, 304, Plain Steel Galvanized	Technique:	Welded Mesh
Application:	Screen, Protecting Mesh	Hole Shape:	Square Hole, Rectangule Hole
Normal Blade Type:	BTO-22, BTO-30, CBT-60, CBT-65	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	bto-22 barbed wire concertina coil , hdg barbed wire concertina coil , hot dipped galvanized razor wire bto 22

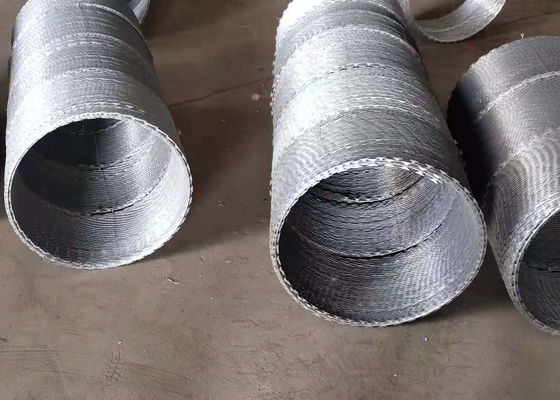

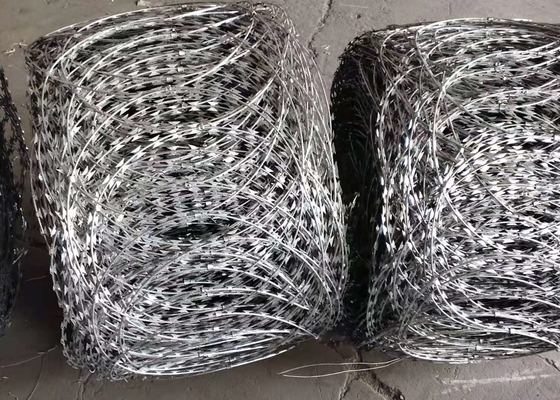

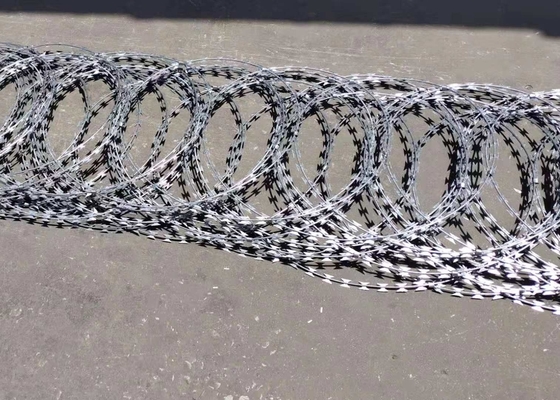

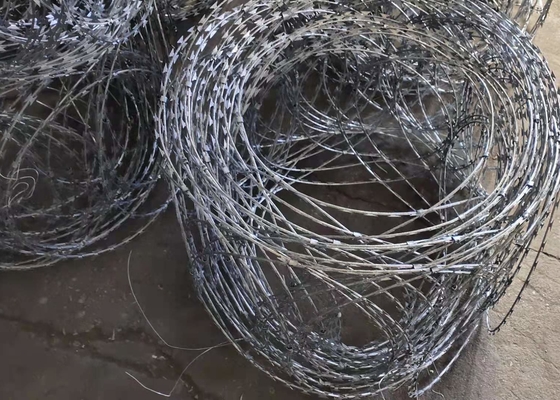

BTO-22 Hot Dipped Galvanized Steel Barbed Wire Concertina Coil

Bangladesh BTO-22 Hot-dipped Galvanized Steel Concertina Razor Barbed Wire is a modern security fencing material offering superior protection and fencing strength. Manufactured from hot-dipped galvanized steel sheets or stainless steel sheets, this razor wire features sharp blades and strong core wire for secure fencing, easy installation, and age resistance.

I. Razor Wire Materials

Blade: Steel plate by one-time punching moulding or stainless steel plate by one-time punching moulding
Wire: Hot dipped galvanized metal wire, hot dipped galvanized steel wire, or stainless steel wire

II. Surface Treatment

Electro galvanized
Hot dipped galvanized
PVC coated

III. Standard Specifications

Reference Number	Thickness	Wire Dia	Barb Length	Barb Width	Barb Space
BTO-10	0.5±0.05	2.5±0.1	10±1	13±1	25±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	25±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	35±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	36±1
BTO-28	0.5±0.05	2.5	28	15	46±1
BTO-30	0.5±0.05	2.5	30	18	46±1

Additional Technical Specifications

Barbed Tape Material: Stainless steel AISI 430 series compliant with ASTM A240/A240M

Core Wire: Stainless steel AISI 300 series per ASTM A580/A580M, Min. Tensile strength 140,000 psi (965.27 Mpa)

Environmental Resistance: Withstands saline and humid conditions typical of coastal regions

Minimum Diameter: 24 inch (610mm)

Barbed Tape Thickness: 0.025 inch (0.635mm)

Minimum Tape Width: 1 inch (25.4mm)

Concertina Clip Strength: Minimum pull load of 200 lbs (90.72 Kgs)

IV. Razor Wire Packing Details

Compression rolls: 5 rolls, 10 rolls, or more rolls as one bundle
Water-proof paper inside with woven bag outside
1 roll, 3 rolls or 5 rolls in one carton
Custom packaging available per customer request
