65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh

65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh
65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh

Large Image :  65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh

Product Details:
Place of Origin: Hebei ,China
Brand Name: Xmesh
Certification: SGS
Model Number: MVSM
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Packaging Details: Pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000 pcs per month
Detailed Product Description
Material: STAINLESS STEEL WIRE Type: Crimped Wire Mesh
Application: Woven Wire Mesh Weave Style: Plain Weave
Technique: Woven Model Number: Vibrating Screen Mesh
Processing Service: Bending, Welding, Decoiling, Cutting, Punching Delivery Time: 31-45 Days
Surface Treatment: Galvanized Or Painted. Mesh Size: 1mm - 100mm.
Hole Type: Square, Rectangular And Long Slot. Opening Size: 2.0 - 80.0 Mm
Wire Diameter: 0.8 - 8 Mm Width: 1.2m
Length: 30m Hook: Hook With Steel Sheet
Hook Degree: 60degree Weaving Type: Double Crimp
High Light:

vibrating screen wire mesh

,

vibrating screen mesh

Crimped Wire Screen For Mining Vibrating Screen Mesh



Product Description

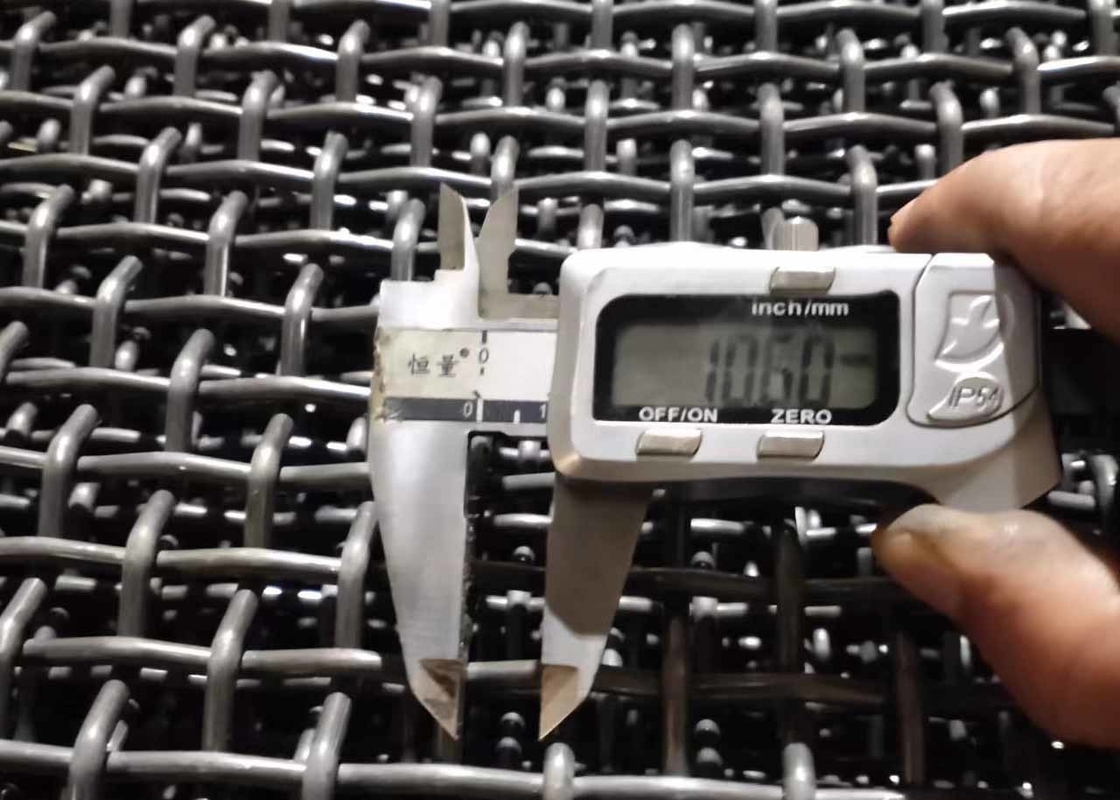

65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 0

Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

Name
Vibrating Screen Mesh
High carbon steel:
65Mn,45#,50#,55#,60#,70#,,72A
Wire diameter
0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .
Aperture/Opening
2mm to 100mm,tolerance +-3%



Weaving style:
Plain weave Double crimped Intermediate crimped Flat top crimped

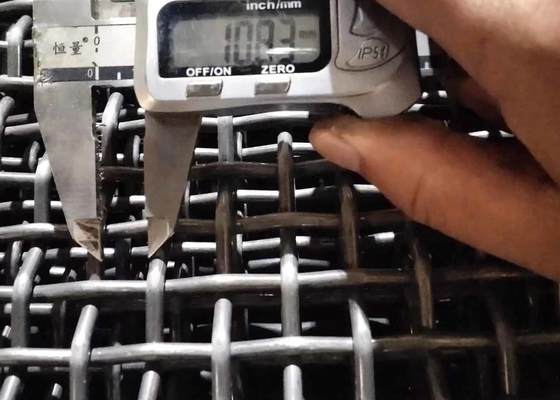

65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 1

Features:

1.No tearing and abrasion

2.Placed above rubber beads to avoid metal to metal contact
3.Corrosion resistance

4. High temperature resistance

IMPORTANT FACTS TO CONSIDER WHEN ORDERING SCREENS:

When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be chosen to give optimum performance. The specification of the screen best suited to the screening operation depends on:
The screen selected must achieve a compromise amongst these factors.
When ordering screens the following technical aspects should be taken into account :
Thickness of wire
Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.

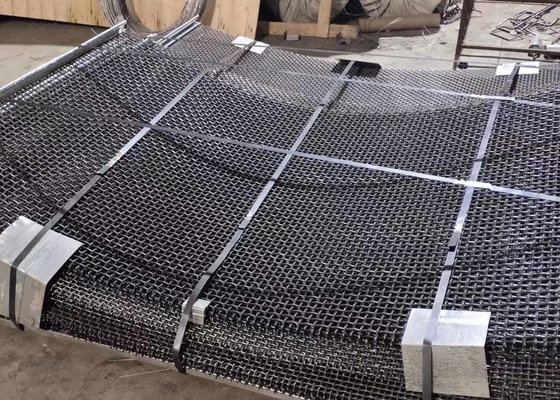

65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 2
Open Area
This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life
Mesh
The mesh refers to the number of openings per inch. The mesh is counted by starting from the centre of one wire and counting the number of opening to a point one inch away.vibrating screen mesh

OEM/ODM Accept the following types of customization with Polyurethane collocation



polyurethane screen mesh
65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 5

Aperture or Opening Width

This is the actual opening between the wires , and is also referred to as space. Thus 10mm aperture , 4mm wire ,means the wires are 10mm apart , and the diameter of wire is 4mm

65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 6

Pre –Crimped Wire Screens
( Wire Crimped before weaving )

These are generally used for 10 mesh and coarser . Pre –crimped wire screens have very accurate opening and are tightly woven. The wires have very little movement, resulting in:
Pre-crimped wire screens are generally preferred when accurate sizing is important and for vibrating screens where tightness is important.
Hooks and Hooks Strips on Vibrating Screens

65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 765mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 8
Products Show
vibrating screen mesh
65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 10
65mn High Carbon Steel Crimped Wire Screen For Mining Vibrating Screen Mesh 11
vibrating screen mesh



Stainless parameters

NO
Grade
chemical Composition
C
Ni
Mn
Cr
1
304
≤0.08
8.0-11.0
≤2.0
18.0-20.0
2
321
≤0.08
9.0-12.0
≤2.0
17.0-19.0
3
316
≤0.08
10.0-14.0
≤2.0
16.0-18.5
4
2205
≤0.03
4.5-6.5
2.5-3.5
21.0-24.0
5
2507
≤0.03
6-8
≤1.2
24-26

Carbon steel parameter:

NO

Grade
chemical Composition
C
Si
Mn
1
45
0.42-0.50





0.17-0.37




0.50-0.80
2
50
0.47-0.55
3
55
0.52-0.60
4
60
0.57-0.65
5
65
0.62-0.70
6
70
0.67-0.75
7
65Mn
0.62-0.70
0.90-1.20
8
72A
0.70-0.75
0.15-0.35
0.30-0.60
