Product Details:
Payment & Shipping Terms:
|
| Material: | Manganese Steel | Wire Diameter: | 6.0 Mm |
|---|---|---|---|
| Hole Shape: | Rectangle | Weaving Type: | Plain Weave |
| Technic: | Woven Mesh | Tensile Strength: | 800 - 1000 MPa |
| High Light: | 6.0mm Crimped Woven Wire Mesh,High Carbon Steel Crimped Wire Mesh,Vibrating Woven Crimped Wire Mesh |
||

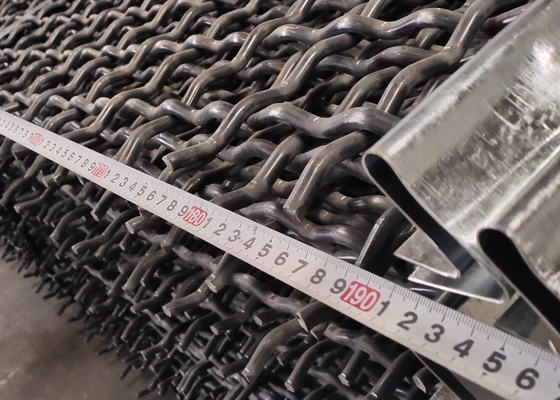

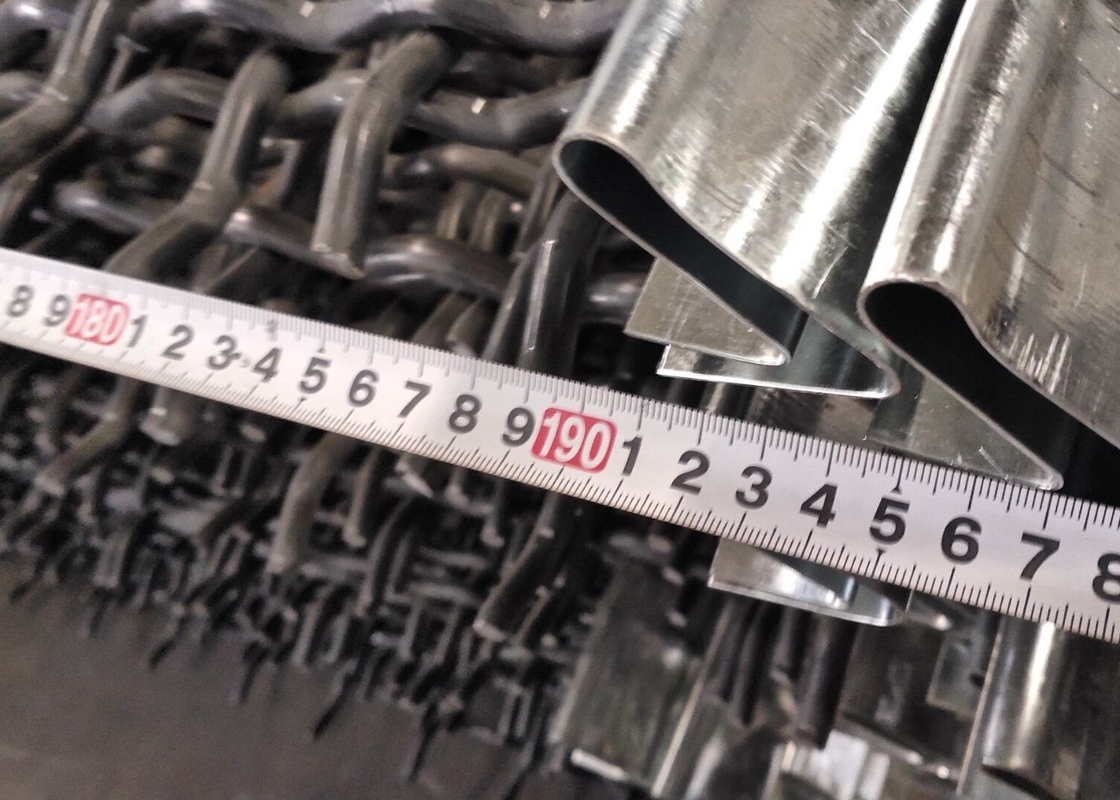

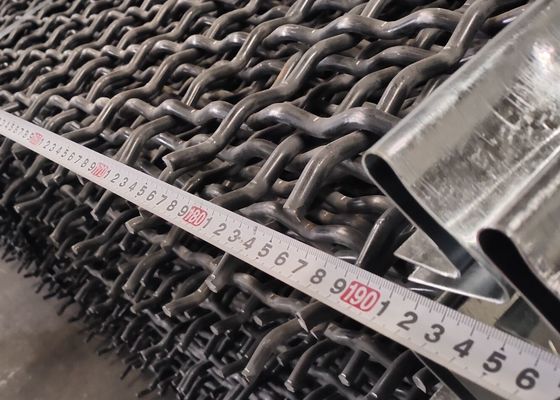

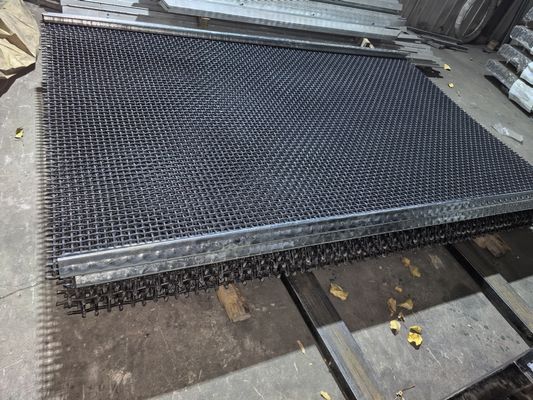

High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh
Heavier woven wire mesh must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications.
1. Angle: 30 degrees, 45 degrees
2. Crimped wire mesh Shape: v-shaped, u-shaped
3. Hook crimped woven wire mesh Hook type: positive check, positive check
4 . Woven wire mesh Material: Stainless steel wire,45Mn steel,65Mn steel,high carbon steel, carbon steel, nickel steel and nonferrous wire.
5 . Hook crimped woven wire mesh Weaving type: Plain, intermediate, crimped
6 .Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.
7 . Hook woven wire mesh Application: Screening in mine, petroleum, chemical, building and food industry. Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.
Specification
| Chemical sheet of the main material | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Grade | Chemical Composition (%) | ||||||||
| China (GB - YG) | USA (AISI) | C | Mn | Si | S | P | Cr | Cu | Ni |
| # 45 | 1045 | 0.42 - 0.50 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 50 | 1050 | 0.47 - 0.55 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 55 | 1055 | 0.52 - 0.60 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 60 | 1060 | 0.57 - 0.65 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| # 70 | 1070 | 0.67 - 0.75 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
| 65 Mn | 1566 | 0.62 - 0.70 | 0.50 - 0.80 | 0.17 - 0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
Features:
» The screens are designed to bear heavy loads
» Highly resistant to vibrations and shocks
» These are highly damage resistant
» Coated for long term protection against corrosion
» Durable in quality, these screens have excellent dimensional tolerance
» Stringently tested for their finishing and strength
» Acclaimed among clients for their excellent abrasion resistance
Applications
Used for
