Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | Hebei,China | Material:: | Stainless Steel Wire, Black/white Steel Wire; Lead Wire |
|---|---|---|---|
| Type:: | Crimped Wire Mesh | Application:: | Screen, Filters |
| Weave Style:: | Plain Weave | Technique:: | Woven |
| Packaing:: | Woven Bag | Openning:: | 2mm - 50mm |
| High Light: | Square Crimped Woven Wire Mesh,SS 304 Crimped Woven Wire Mesh,Aperture 2mm Crimped Woven Wire Mesh |
||

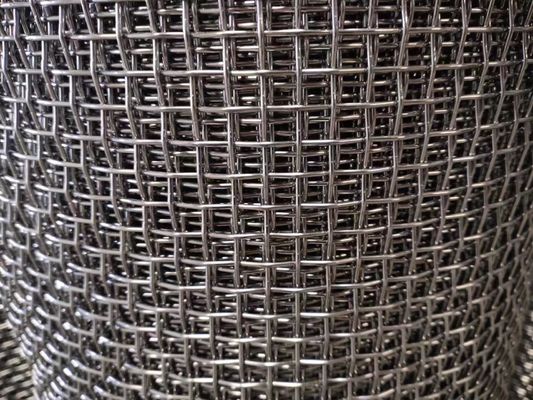

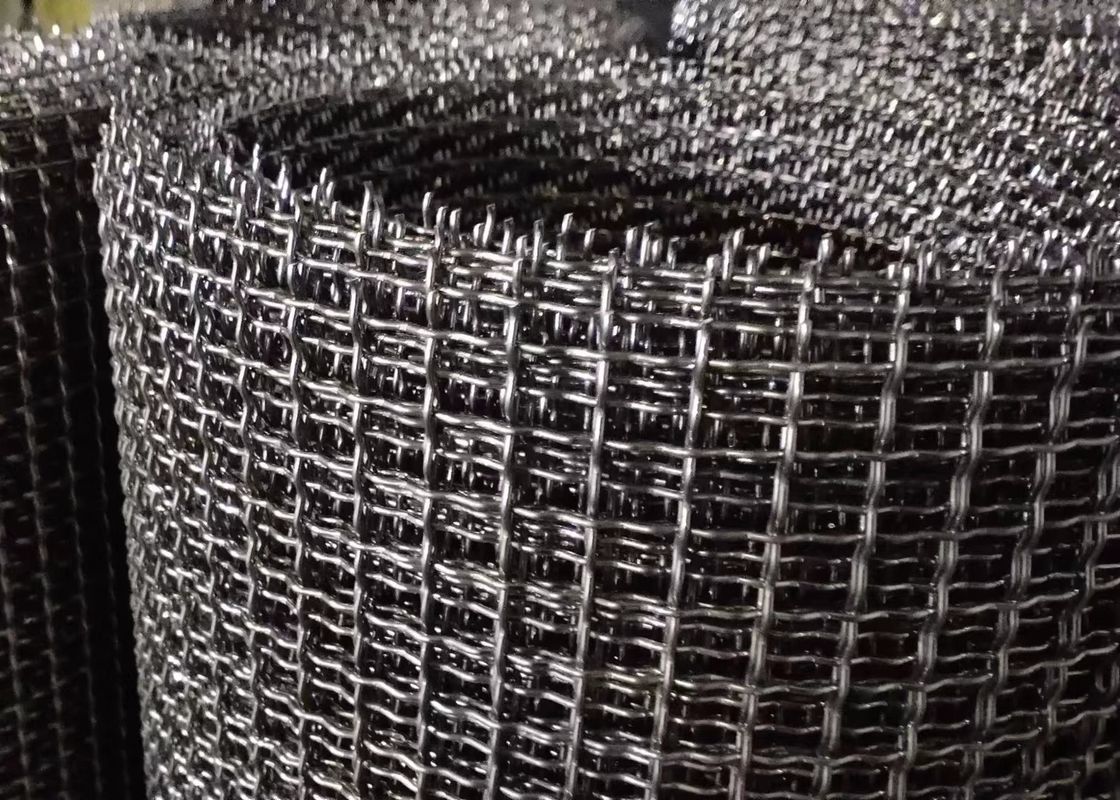

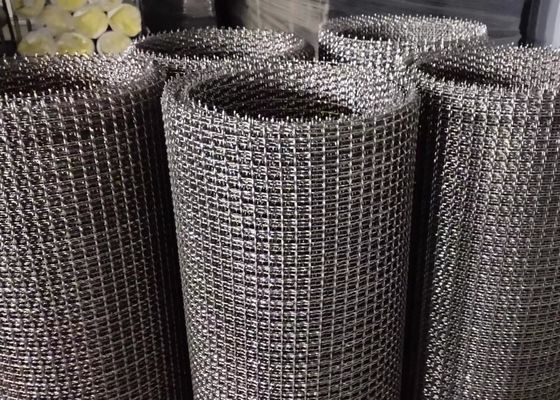

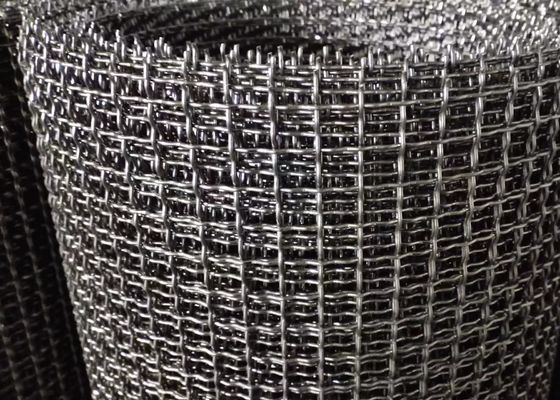

20x20mm Aperture 2mm Square Stainless Steel 304 Crimped Woven Wire Mesh
Product Description
Stainless Steel Crimped Wire Mesh
Stainless Steel Crimped Wire Mesh is made of high quality stainless steel wire. It has various weaving method, such as the double crimped, flat top crimped, intermediate crimped and lock crimped. The crimped woven wire mesh has square opening and rectangle opening, which has different wire diameters and applications.
What is Stainless Steel Crimped Wire Mesh ?
Stainless Steel Crimped Wire Mesh is crimped before weaving, and it has strong structure, good loading capacity and beautiful appearance.The pre-crimped weaving method can assure the accurate open area and make the structure stability and smooth.
Stainless steel crimped wire mesh has various applications. The heavy duty crimped woven wire cloth can be used as vibrating screen in the mining, coal, crusher and other industries. The light crimped woven wire mesh with thinner wire diameter and small opening size can be used as barbecue grill mesh, pig feeding, protective fences for the equipment and stairs.
Stainless Steel Crimped Wire Mesh Specification:
| Material | stainless steel 301, 302, 304, 304L, 316, 316L, 321. |
| Mesh Width | up to 2000 mm. |
| Aperture width | 10–120 mm in the case of multi-notch meshes and 4–40 mm in the case of single-notch meshes. |
| Weaving method | crimped before weaving. |
| Frame | Cut the edges;Bent edges;Sheathed hooks. |
Stainless Steel Crimped Wire Mesh Features:
| Crimped Wire Mesh | ||||
| Wire Gauge SWG |
Wire Diameter (mm) |
Mesh/Inch | Aperture (mm) |
Weight (kg/m2) |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |
stainless steel wire: 304 304L 316 316L 310 Titanium mesh, Nickle Mesh, Monel wire mesh Chrome alloy iron etc.
wire diameter:0.5mm-12mm.
aperture: 1.0mm -100mm.
standard roll width: 40", 48", 60", to 4meters.
standard roll length of stainless steel wire mesh: 15m 30m to 100'(Special sizes can be customized).
Weaving methods:
Plain Crimped Wire Mesh.
Double Crimped Wire Mesh.
Flat Top Crimped Wire Mesh.
Lock Crimped Wire Mesh.
Supply form:
Woven screen mesh with cut edge.
Woven screen mesh with plain hook.
Woven screen mesh with sheathed hook.
Woven screen mesh with iron plate Function.
Feature:
Vandal resistant, Low maintenance.
Strong and reliable security.
Simple structure, Attractive appearance.
Easy installation, Convenient transport.
Application:
Act as Screens in industry coal, sand, rock, ore, mine ,crop,grain etc.
Filter in petroleum, acid, alkali ,chemical etc.
Security net ,Security fence etc.
