Color Painted 16mm Woven Wire Screen For Crusher

High Tensile Manganese Steel Crimp Woven Vibrating Screen Mesh for Crusher​

The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped, flat mesh, etc.).
Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, quarry screen mesh etc. it is wearable resistance, high frequency and longer life. Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.

Vibrating screen mesh brief introduction

1. Double Crimp Woven Wire
Used for medium to heavy wire in relation to screen opening size.

2. Lock pre-crimp mesh
Unlike plain crimped mesh, lock crimped mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.

3. Flat Top Woven Wire

Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface-with no high points-as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. Flat top was originally created to allow for the smooth flow of materials over the surface and provide a flat face for use as backer screens. Flat top is ideal for aggregate sizing and sorting, agriculture, filtration, and heat-treating applications.

4. Intermdiate Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).

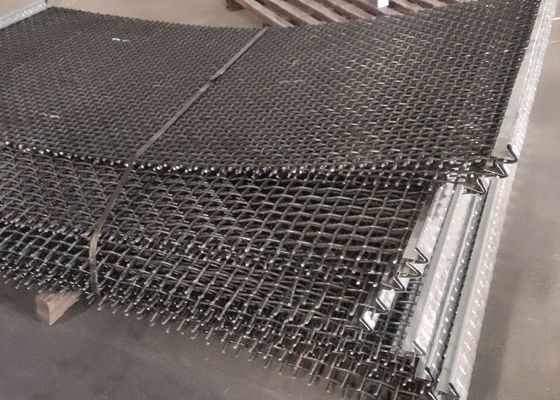

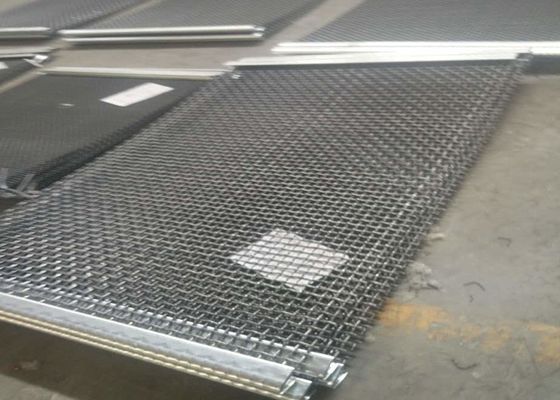

Hook Type Screen Mesh


Applications

• Applies to vibrating screens or stone crusher for sieving of mine and aggregates, as well as asphalt mixer plant in road building.It also can be used in filtering and protection of petroleum, chemical industry such as mining screen, screen wire for stone crusher, quarrying screen, vibrating screen deck, classifying Trommel; dewatering screen; road construction equipment, asphalt mix equipment etc
  Heavy duty crimped wire mesh is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing.

Used for

• Grid window
• Poultry protection
• Concrete reinforcement
• Building construction

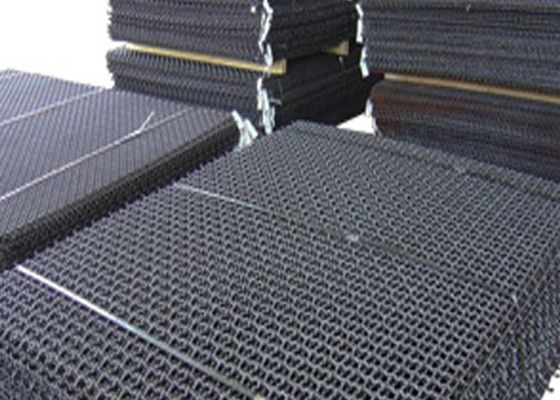

Packing
Packing: In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.
