MZP Putanka Wire 10X10m 0.5/0.6/0.8/0.9mm Diameter High Tensile Steel Wire Net

MZP Putanka Wire 10X10m 0.5/0.6/0.8/0.9mm Diameter High Tensile Steel Wire Net
MZP Putanka Wire 10X10m 0.5/0.6/0.8/0.9mm Diameter High Tensile Steel Wire Net MZP Putanka Wire 10X10m 0.5/0.6/0.8/0.9mm Diameter High Tensile Steel Wire Net

Large Image :  MZP Putanka Wire 10X10m 0.5/0.6/0.8/0.9mm Diameter High Tensile Steel Wire Net

Product Details:
Place of Origin: CHINA
Brand Name: QIJIE
Certification: sgs
Model Number: putanka wire
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: bulk, pallets
Delivery Time: 15-18days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Detailed Product Description
Material: Steel Wire Diameter: 0.5/0.6/0.8/0.9mm
Perimeter: 10m
Highlight:

0.9mm Wire Diameter Putanka Wire

,

0.5mm MZP Putanka Wire

,

High Tensile MZP Putanka Wire



MZP Putanka Wire, 10X10m, 0.5/0.6/0.8/0.9mm wire diameter, High Tensile Steel Wire Net​



MZP Putanka Wire | МЗП Путанка (inconspicuous obstacle, tanglefoot wire, confusion, Rabbit Wire) - a three-dimensional wire barrier made of carbon wire rings. The wire is very thin, so it is almost invisible.

The task of the MZP wire of the muddle is to prevent it from approaching the object. A person falls into a trap of rings and, in most cases, will not be able to get out of it on their own. It takes a lot of time to cut a passage in the barrier.

A Putanka inconspicuous obstacle is a serious obstacle for wheeled and tracked vehicles. Wire rings are wound around the wheels or tracks and stop the wheels from spinning.

Structure - MZP Putanka Wire

MZP - a four-tiered network of ring garlands. It is installed in the form of a parallelepipped.

Wire Rings are made from galvanized or non-galvanized carbon wire GOST 7372-79 with a diameter of 0.5; 0.6; 0.8 and 0.9 mm. Ring garlands are interconnected by wire twists of annealed wire with a diameter of 0.8 mm (GOST 3282-74). Pegs for fastening, rings for them are made from low-carbon wire .

An inconspicuous obstacle is completed with pegs, rings for mounting a wire fence. You can buy a "putanka" without a set of pegs.

mzp mesh

MZP Tangled Wire Net

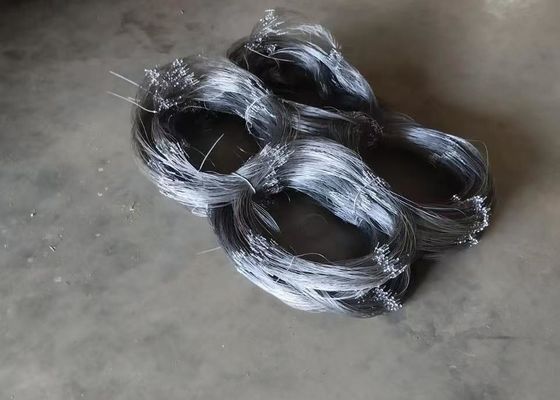

We manufacture and supply several types of MZP tangledfoot wire distinguished by wire’s diameters, number of garlands as a part of the enclosing and by dimensions in ready-to-work position. In folded condition bob wire looks like a small parcel.



TECHNICAL DATA SHEET -   MZP Putanka Wire Net
Unfolded Dimension 10X10X1.4m / 10X5X1.4
Folded Dimension 1.2X0.6X0.8m / 1.1X0.5X0.6m
Wire Diameter / Garlands No.s Φ0.9 / 0.8 / 0.6 / 0.5mm - 20pcs; Twist 0.8mm
Package Weight 24kgs / 12kgs (without rings & pegs)
Complete Set 40 pcs
MEASUREMENT
LENGTH WIDTH HEIGHT VOLUME
0.98m 0.68m 0.75m 0.50 m3
0.20m 0.40m 0.40m 0.032 m3






Technical barriers are designed for

※ Stopping the advance of the attacker;

※ Slowing down his maneuver;

※ Causing him losses in life and equipment;

※ Creating mainly good conditions for the security forces to detain or eliminate the violator.



How Putanka Wire Tangled Net Work ?

The rings of tangled wire are wrapped around the wheels, preventing them from spinning. If someone jumps over the fence, the MZP gets confused on its feet, preventing it from passing further. There is no way to free yourself.

The main task of the wire tangle is to immobilize people and transport on the site, and not to protect the fence from climbing. For better protection of the fence itself, we recommend additionally installing Egoza barbed wire or Jowa barbed wire on the fence.

mzp mesh

What happens when you hit an inconspicuous obstacle ?

If a person tries to go through into the territory, he gets confused in it. There is no way to get out of the confusion without outside help. Therefore, the offender remains safely waiting for the guard on the spot.

When an armored vehicle or tank passes, the vehicle wraps around the wheels and turns into a pile of metal on the chassis, preventing it from moving further. And it’s difficult to remove such a gift from the wheels.





Installation of an inconspicuous wire network

The Putanki package is deployed by 3 people in less than 20 minutes. When it is installed in the path of a possible intruder, a volumetric inconspicuous network 5 meters wide and 1.4 meters high is formed. Each package protects at least 10 meters of perimeter.

MZP putanka is installed by 4-8 people on the ground, on a fence, wall, roof of a building or structure.

In the lower tier there are garlands with a larger wire diameter.

The lower rings of an inconspicuous obstacle are attached to the ground with brackets and other devices every 1-2 meters along the perimeter of the barrier.

The upper edge of an inconspicuous wire net must be fixed to stakes to add volume and improve barrier properties.

NOTE The tangle unfolds once. It is impossible to assemble the wire back into the rings, so it is important to perform all the steps correctly from the very beginning.

MZP Putanka Wire 10X10m 0.5/0.6/0.8/0.9mm Diameter High Tensile Steel Wire Net 2



The main advantages of invisible wire obstacle:



※ Inconspicuous in the territory;

※ Several types of installation are possible: in the plane of the territory, in the fence, in the wall and also on the roof of the structure;

※ Considered an insurmountable obstacle in the line of movement of persons, wheeled as well as crawler and wheeled equipment;

※ Guarantees operational formation within the protection boundary;

※ Low cost of the package.



mzp mesh



mzp mesh



mzp mesh
