Slot Hole - Best Solution To Liquids And Solids Filtration

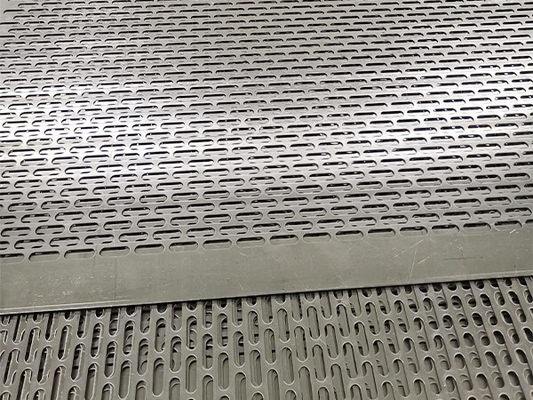

Large Image : Slot Hole - Best Solution To Liquids And Solids Filtration

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	QJ-813

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	loosed packed or palletized
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	10000 pcs one month

Contact Now

Detailed Product Description

Material:	Galvanized Steel Plates, Stainless Steel Plates	Thickness:	1.8 - 6.5 Mm
Mesh:	3 - 15 Mm Hole	Surface Finish:	Nature
Hole Shape:	Slot	Size:	1.0 X 2.0 M, 1.2 X 2.4 M

Slot Hole - Best Solution to Liquids and Solids Filtration

Product descriptions

Slot hole perforated sheet is a versatile sheet or coil punched for elongated holes with round or square ends. Compared to similar perforated sheet with other hole pattern, this one proves to be the best solution to filtrate and sieve liquids and solids, such as water, wine, grain and seeds, etc.

Various applications:

Act as sieves for grain & seeds cleaning and drying machine.
Mill of flour and rice.
Rope belt conveyors.
Wall & ceiling panels.
Cladding and sunshade.
Fences and protective panels.
Decorative applications, etc.

Optional material:
The materials most frequently used of the slot hole perforated sheet include mild, carbon steel, stainless steel, aluminum, copper, brass and any other material suitable for perforation.

Aesthetic hole patterns

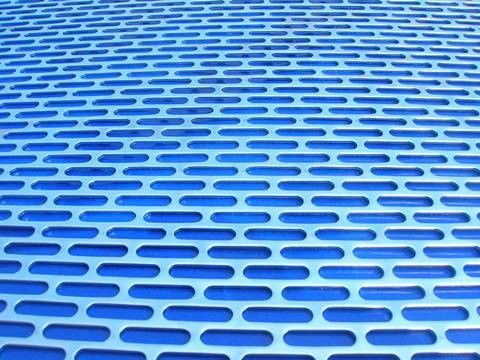

According to the desired application, there are many arrangements of slot holes including straight or staggered type as shown in the following picture:

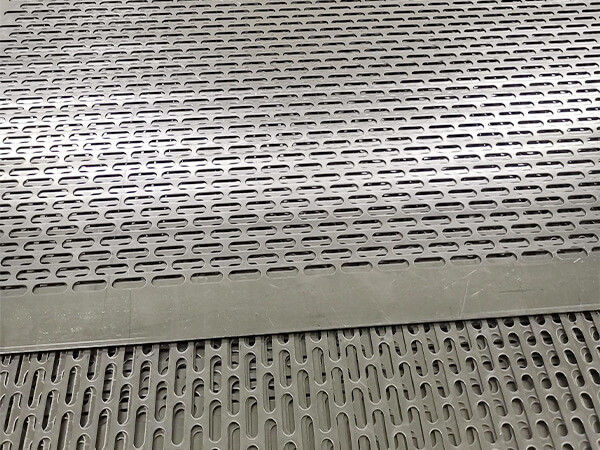

Slot Hole - Best Solution To Liquids And Solids Filtration 0

Meanwhile, to reach your desired aesthetic effect, we also supply other patterns of slot hole as your nominated, for example:

Hole size:
The slot hole should be punched with a width that at least the same size as the sheet thickness. When the slot width is the twice as much as the sheet thickness, the sheet performs best.

The slot hole of perforated metal has two end shapes: square end and round end, each has straight and staggered patterns. The round end slot hole in staggered pattern is the most popular among all ranges of applications.

Round End 45° Slanted Pattern

Slot Hole - Best Solution To Liquids And Solids Filtration 3

Round End 45° Staggered Pattern
Item	a (mm)	b (mm)	t (mm)	t1 (mm)	P (%)
Ld 8 × 40 – 44 × 22	8	40	44	22	31.6
Ld 8 × 45 – 44 × 22	8	45	44	22	35.8
Ld 8 × 56 – 54 × 54	8	56	54	54	14.9
Ld 10 × 25 – 26 × 26	10	25	26	26	33.8
Ld 10 × 30 – 25 × 25	10	30	25	25	44.6
Ld 10 × 30 – 30 × 30	10	30	30	30	30.9
Ld 10 × 56 – 54 × 27	10	56	54	27	36.9
Ld 12 × 39 – 38 × 38	12	39	38	38	30.3
Ld 16 × 60 – 80 × 50	16	60	80	50	22.6
Ld 20 × 45 – 42 × 42	20	45	42	42	46.1

Round End Staggered Pattern

Round End Staggered Pattern
Item	a (mm)	b (mm)	t (mm)	t1 (mm)	P (%)
Lv 1 × 10 – 7 × 14	1	10	7	14	20.0
Lv 1.5 × 12 – 10.3 × 16	1.5	12	10.3	16	21.3
Lv 1.5 × 20 – 4 × 50	1.5	20	4	50	29.5
Lv 2 × 10 – 10 × 15	2	10	10	15	25.5
Lv 2 × 20 – 10 × 25	2	20	10	25	31.3
Lv 2.1 × 20 – 5 × 25	2.1	20	5	25	65.7
Lv 2.4 × 20 – 5 × 25	2.4	20	5	25	74.8
Lv 3 × 20 – 5.5 × 25	3	20	5.5	25	84.5
Lv 3 × 20 – 8 × 26	3	20	8	26	55.8
Lv 3 × 20 – 14 × 26	3	20	14	26	31.9
Lv 4 × 20 – 10 × 25	4	20	10	25	61.2
Lv 4 × 25 – 6.5 × 45	4	25	6.5	45	66.0
Lv 4.5 × 20 – 8 × 25	4.5	20	8	25	85.6
Lv 4.5 × 25 – 7 × 60	4.5	25	7	60	51.5
Lv4.75 × 20 – 15 × 25	4.75	20	15	25	48.1
Lv 5 × 20 – 20 × 25	5	20	20	25	37.9
Lv 5 × 30 – 9 × 35	5	30	9	35	91.8
Lv 6 × 20 – 24 × 24.8	6	20	24	24.8	37.7
Lv 6 × 20 – 26 × 40	6	20	26	40	21.6
Lv 7 × 20 – 13 × 47.5	7	20	13	47.5	41.9
Lv 7 × 25 – 12 × 30	7	25	12	30	91.4
Lv 7 × 25 – 30 × 30	7	25	30	30	36.5
Lv 8 × 40 – 26 × 47.5	8	40	26	47.5	49.6
Lv 10 × 40 – 20 × 50	10	40	20	50	75.7

Round End Straight Pattern

Round End Straight Pattern
Item	a (mm)	b (mm)	t (mm)	t1 (mm)	P (%)
Lg 2.4 × 20 – 5 × 25	2.4	20	5	25	37.4
Lg 3 × 25 – 8 × 29	3	25	8	29	31.5
Lg 4.5 × 20 – 8 × 25	4.5	20	8	25	42.8
Lg 5 × 30 – 9 × 35	5	30	9	35	45.9
Lg 6 × 38 – 11 × 52	6	38	11	52	38.5
Lg 7 × 25 – 18 × 35	7	25	18	35	26.1
Lg 8 × 40 – 14 × 92	8	40	14	92	23.8
Lg 20 × 40 – 28 × 50	20	40	28	50	51.0
Lg 20 × 40 – 28 × 48	20	40	28	48	53.1

Square End Staggered Pattern - 1

Square End Staggered Pattern - 1
Item	a (mm)	b (mm)	t (mm)	t1 (mm)	P (%)
Pv 2.6 × 25.2 – 13 × 30	2.6	25.2	13	30	33.6
Pv 3.5 × 21 – 14 × 30	3.5	21	14	30	35.0
Pv 5 × 10 – 14 × 20	5	10	14	20	35.7
Pv 5.4 × 16 – 16 × 20	5.4	16	16	20	54.0

Square End Straight Pattern - 2

Square End Straight Pattern - 2
Item	a (mm)	b (mm)	t (mm)	t1 (mm)	P (%)
Pg 3.5 × 21 – 7 × 30	3.5	21	7	30	35.0
Pg 3.5 × 21 – 14 × 30	3.5	21	14	30	17.5
Pg 4 × 18 – 8 × 25	4	18	8	25	36.0
Pg 4.2 × 16 – 7 × 20	4.2	16	7	20	48.0
Pg 4.2 × 16 – 14 × 20	4.2	16	14	20	24.0
Pg 5.4 × 16 – 16 × 20	5.4	16	16	20	27.0
Pg 9.5 × 76.2 – 14 × 81	9.5	76.2	14	81	63.8
Pg 11 × 60 – 28 × 92	11	60	28	92	25.6
Pg 10.2 × 25.2 – 30 × 50	10.2	25.2	30	50	17.1
Pg 15 × 25 – 18 × 28	15	25	18	28	74.4
Pg 15 × 50 – 18 × 60	15	50	18	60	69.4
Pg 20 × 100 – 80 × 200	20	100	80	200	3.6
