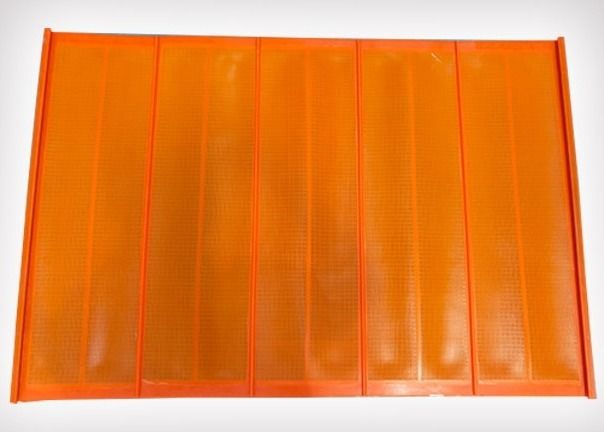

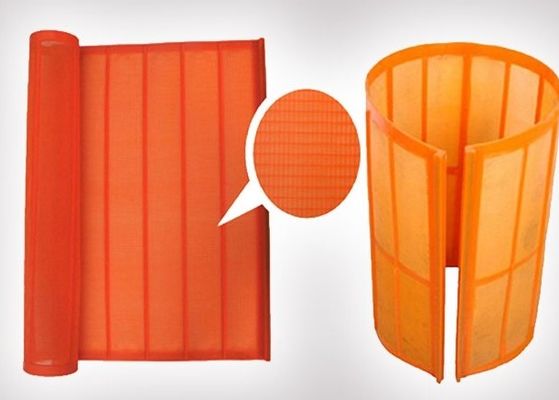

Polyurethane Screen Mesh- Fine Screening
Polyurethane screen mesh is often used to adapt to Fine Vibrating Screen and Stack Vibrating Screen. It can be used in vibrating dehydration, material classification and other applications. GN polyurethane screen mesh is a kind of high molecular polyurethane elastomer, which has excellent physical and mechanical properties: high strength, large elasticity and good wear resistance.
Polyurethane screen mesh is often used to adapt to Fine Vibrating Screen and Stack Vibrating Screen. It can be used in vibrating dehydration, material classification and other applications. GN polyurethane screen mesh is a kind of high molecular polyurethane elastomer, which has excellent physical and mechanical properties: high strength, large elasticity and good wear resistance. The opening rate of polyurethane screen mesh is 28% ~ 45%. GN is committed to providing customers with flexible polyurethane screen mesh with finer mesh, higher opening area and better polyurethane screen surface. By adopting advanced production technology and precision designed and manufactured molds, GN creatively combines long life with high opening area, large treating capacity and excellent performance to meet the requirements of efficient separation.
Specification of Square Polyurethane Screen Mesh
TECHNICAL SPECIFICATION OF GN POLYURETHANE SCREEN MESH
| Screen Width |
Screen Length |
Opening Wide(mm) |
Opening Length(mm) |
Opening Rate(%) |
| 700/840/1000mm |
1010/1020/130/1045mm (basic length can be increased every 100) |
0.045 |
2.65 |
9.4 |
| 0.063 |
2.65 |
14.3 |
| 0.075 |
2.65 |
18.73 |
| 0.1 |
2.65 |
23.41 |
| 0.12 |
2.65 |
30.6 |
| 0.15 |
2.65 |
30.9 |
| 0.19 |
2.65 |
31.77 |
| 0.23 |
2.65 |
35.67 |
| 0.25 |
2.65 |
36.6 |
| 0.32 |
2.65 |
39.6 |
| 0.4 |
2.65 |
42.5 |
| 0.5 |
2.65 |
44.5 |
| 0.7 |
2.65 |
46.8 |
| 0.8 |
2.65 |
48.4 |
| 0.9 |
2.65 |
51.5 |
| 1.0 |
6 |
55.6 |
| 1.2 |
6.4 |
47.8 |
| 4 |
8 |
62.2 |
PU Mesh Material
Polyurethane screen mesh is a type of material used in the construction of screening devices, such as vibrating screens, trommel screens, and dewatering screens. It is a synthetic material that is made from polyurethane, a polymer that is known for its toughness and elasticity. It is also resistant to chemicals and UV radiation, which helps to extend its lifespan and maintain its performance over time. In addition to its strength and durability, polyurethane screen mesh is also lightweight and flexible, which makes it easy to install and replace when necessary. Its ability to withstand high loads and vibrations, as well as its resistance to clogging and blinding, make it a popular choice for screening operations in industries such as mining, quarrying, and construction. Overall, polyurethane screen mesh is a reliable and cost-effective material that provides excellent screening performance in a range of applications.
Standard Sizes Available
| Model No. |
Size |
| PSM30 |
300x300mm |
| PSM30.5 |
305x305mm |
| PSM61/30.5 |
610x305mm |
| PSM63/30 |
630x300mm |
| PSM30/50 |
300x500mm |
| PSM30/80 |
300x800mm |
| PSM1.22/30 |
1220x300mm |
Customization of polyurethane screen panel for sale
Frame, Opening, Installation style, and dimensions are customizableas per the drawing or requirements.
Product Parameters
| Specification(MM) |
Aperture(MM) |
Weight(KG) |
| 300*610 |
0.2 0.3 0.5 0.7
0.8 1.0 1.2 1.5 2.0 2.5 3
The aperture can be customized |
5kg/m2-10kg/m2 |
| 305*610 |
| 300*800 |
| 300*1220 |
| 610*610 |
| Mark: Other size can be customed |
Features
1.Polyurethane linear dewatering screen panels have the advantages of light weight, small load, small power consumption of screen machine, good dehydration effect, high processing capacity, high production efficiency, low noise, high efficiency, energy saving, environmental protection, high opening rate, etc.
2.It is a suitable product for dehydration and medium removal.
3.Polyurethane products can save energy, reduce consumption and increase benefit for the enterprises.
Advantages
- Multiple fixing systems
- Modular design with apertures ranging from 0.2mm to 100mm
- Cross tensioned
- Multiple panel configurations such as solid, slotted, square, round, ribbed, rectangular, S-modular and VR
- Available with options such as L shape, carrier bars, flow restrictions and drainage deflectors
- Manufactured in range of custom color options
- Over 250 modular panel variations
- Custom options available. Equivalents to most OEM suppliers.
- Available in varying thicknesses from 30mm to 80mm.
