Product Details:
Payment & Shipping Terms:
|
| Series: | Heavy Galvanized | Wire Diameter: | 2.7mm |
|---|---|---|---|
| Mesh Open: | 80*100mm | Manufactured: | According SANS 1580 |
| Installation: | As SANS 1200 | Color: | Silver |
| High Light: | wire gabion baskets,gabion wall baskets |
||
SANS 675 River Mattresses for with Top Quality for Longitudinal river structures
The River Mattresses and mattresses are manufactured in strict accordance with the SANS 1580 and site installations are also in accordance with the latest SANS 1200 specification.

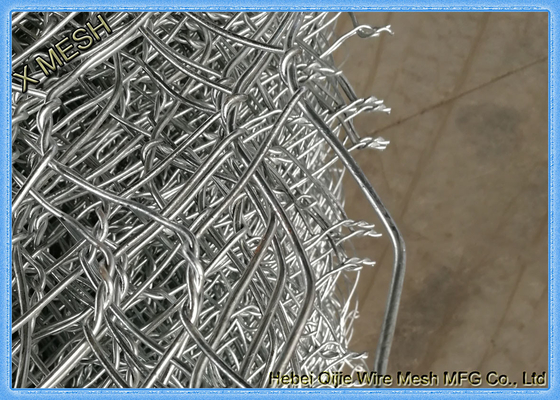

Our mesh is hexagonal in shape meeting with the 80×100 mm mesh aperture for gabions with a mesh wire diameter of 2.7mm and selvedge wire of 3.4mm diameter.
All measurements are in metres
River Mattresses
| Material choosing : | Heavy Galvanized Steel Wire |
| Wire Diameter : | 2.7mm |
| Mesh Opening : | 80 × 100mm |
| Hole Type : | Hexagonal |
| Size | Volume |
| 2×1×0.3m | 0.6m³ |
| 3×1×0.3m | 0.9m³ |
| 4×1×0.3m | 1.2m³ |
| 6×2×0.17m | 2.04m³ |
| 6×2×0.23m | 2.76m³ |
| 6×2×0.30m | 3.60m³ |
