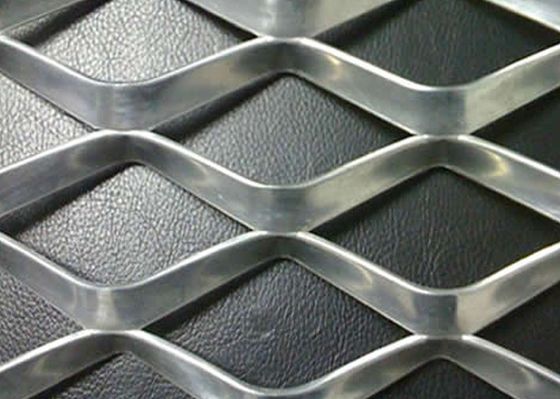

JIS Standard G3141 XS-41 SPCC-SD Expanded Metal Mesh

JIS Standard G3141 XS-41 SPCC-SD Expanded Metal Mesh
JIS Standard G3141 XS-41 SPCC-SD Expanded Metal Mesh JIS Standard G3141 XS-41 SPCC-SD Expanded Metal Mesh

Large Image :  JIS Standard G3141 XS-41 SPCC-SD Expanded Metal Mesh

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: XS-41
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: With steel pallet
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 5000 pcs one month
Detailed Product Description
Material: SPCC-SD Coild Redrawn Coil Thickness: 1.6mm
Mesh: 25 X 40 Mm Surface Finish: Galvanised
Hole Shape: Diamond Size: 1.2 X 2.4 M
Application: Protecting Mesh,Fencing Type: Expanded Mesh,Flattened And Standard,Raised Type
Technique: Perforated Color: Silver,red,Black,white,yellow
High Light:

JIS Standard Expanded Metal Mesh

,

G3141 Expanded Metal Mesh

,

1.6mm expanded aluminum mesh

Description:

Expanded Metal mesh is made by slitting and stretching metal sheets to create diamond shaped openings. This practical and versatile product line forms screens, window security panels, machine guards and more. Decorative Expanded items are popular in shelving, signage and ceiling tile applications. Expanded Metal is supplied in a Standard (Raised) diamond pattern or a Flattened variety, and materials include Aluminium, Carbon Steel, Galvanized Steel and Stainless Steel.

  • Materials: Stainless steel 201,304,304L,316,316L
  • Surface treatment: Standard,Coating

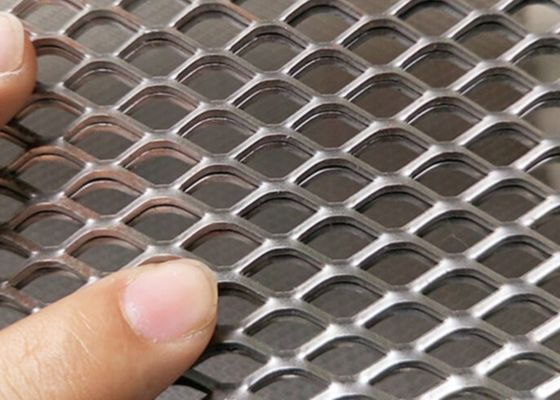

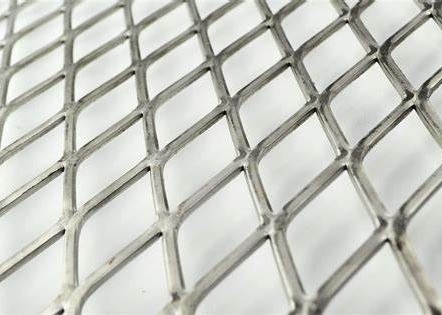

JIS Standard G3141 XS-41 SPCC-SD Expanded Metal Mesh 0JIS Standard G3141 XS-41 SPCC-SD Expanded Metal Mesh 1

Specification:

  • Thickness : 0.3mm- 8.0mm
  • Strand : Regular or customized
  • SWD*LWD : 2*3,2*4,3*5,4*8,5*10,7*12,8*16,10*20,16*30,18*30,20*40,25*50,30*60,40*80,
    45*100,50*100,60*120mm, etc.
  • LWM : Less than 3000 mm
  • SWM : customized
Kind of Material Short Way x Long Way(mm) Thickness(mm) Strand Width(mm) Width-Length(mm) Weight (kg/m2) Open Area
Mild Steel 3X6mm 0,5mm 0,7mm 1000x15000mm 1,800kg/m2 %62
Galvanized 3X6mm 0,5mm 0,7mm 1000x15000mm 1,800kg/m2 %62
Stainless 3X6mm 0,5mm 0,7mm 1000x15000mm 1,800kg/m2 %62
Aluminum 3X6mm 0,5mm 0,7mm 1000x30000mm 0,700kg/m2 %62

Stainless steel expanded mesh is available in a variety of surface, standard (raised) and flattened (smooth) surface according to the applications and projects requirements.

Expanded Metal Mesh Terms

Here is a brief list of stainless steel expanded metal terms that you need to know:

  • Strands. This is the term for the solid metal portions of the expanded metal grating. In the diagram at the top of the article, the strands are 0.107" wide.
  • Bonds. This is the term for intersections of strands.
  • Short Way of Design (SWD). The distance between the centers of bond strands in the mesh when measured along the short diamond diagonal. To illustrate this, in a diamond pattern shape like “<>,” the SWD would be measured from top to bottom. In the diagram above, the SWD would be approximately 0.372" (0.265" SWO plus 0.107" of strand thickness).
  • Long Way of Design (LWD). The distance between the centers of bond strands in the mesh when measured along the long diamond diagonal. In a diamond pattern shape “<>,” LWD would be measured from right to left. In the diagram above, the LWD would be approximately 1.107" (1" LWO plus 0.107" of strand thickness).
  • Short Way of Opening (SWO). The distance between the inside edges between bonds when measured across the short diamond diagonal. The difference from SWD is that SWO measures open space, while SWD measures the space from the center of one bond strand to the next. In the diagram above, the SWO would be 0.265".
  • Long Way of Opening (LWO). The distance between the inside edges between bond strands when measured across the long diamond diagonal. Like with SWO, the difference between LWO and LWD is that LWO measures open space only, while LWD measures to the center of a bond strand. In the diagram above, the LWO would be 1".
  • Strand Thickness. A measure of the thickness of a strand of expanded metal.
  • Strand Width. How wide a strand of expanded metal is
expanded metal drawing

Application:

Stainless steel expanded metal has a widely applications in architectural,commercial,industrial and decoration with the higher acid and alkali-resistance requirements.Such as security,equipment guards, flooring, walkways,decoration,strainer,filter,etc.

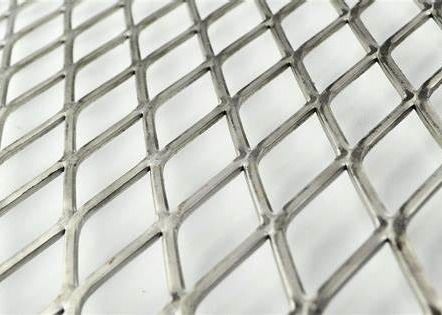

JIS Standard G3141 XS-41 SPCC-SD Expanded Metal Mesh 3JIS Standard G3141 XS-41 SPCC-SD Expanded Metal Mesh 4
