Product Details:
Payment & Shipping Terms:
|
| Material: | Mild Steel Sheet | Thickness: | 1.0 - 5.5 Mm |
|---|---|---|---|
| Mesh: | 30 X 60 Mm, 50 X 100 Mm | Surface Finish: | PVC Coated |
| Hole Shape: | Diamond | Size: | 1.0 X 2.0 M, 1.2 X 2.4 M, 1.0 X 30 M |
| High Light: | expanded mesh sheet,expanded mesh panels |
||
PVC coated Surface Expanded Metal Mesh for Decoration
Product descriptions
Decorative expanded metal mesh is one of the most important fashionable elements in civil buildings .The specially designed decorative expanded wire mesh is widely used in architectural and decorative applications. The Expanded metal design can be used to provide privacy and to control light and air while still allowing visibility. Sun screens, room dividers, and building facades are only a few of the possible design possibilities.We can make the decorative expanded metal mesh as your request according to the various application.
Expanded Metal is a rigid, non-raveling piece of metal that has been slit and expanded. In the expanding process, metal can be expanded ten times its original size, lose up to 80% of its weight, becoming stronger and more rigid. No material is lost in the manufacturing process.
Features:
It is easily processing, has uniform stretched holes and has versatile applications.
Flat metal mesh sheet offers high rigidity in a variety of sizes and weights. The angles of the diamond strands allow maximum air circulation and distribute stress on the metal to supporting frames. The galvanized steel and black steel expanded diamond mesh is the most versatile expanded sheet materials. It can be made with different hole apertures and metal thicknesses to suit specific individual applications.
Uses: Standard Diamond Mesh fabricated from low carbon steel plates is ideal for use wherever a strong, durable, lightweight surface is needed, some of typical uses as following:
• Sunshade and Ventilation Screening effect - light and vision can be controlled
• Processed in forms of angle beads or corner beads. Working as A reinforcing agent - in concrete, plaster and wall buildings.
• Heat conduction and diffusion sheet - for grills and high temperature processing
• Security and safety - for fencing, cages and enclosures, machine guarding, shielding panels
• Architectural Cladding Panels - for protection and decoration of roof, wall, facade and interior and exterior partitions.
Specifications:
| Sheet Thickness (mm) | Opening in Width (mm) | Opening in Length (mm) | Stem (mm) | Roll Width (mm) | Roll Length (mm) | Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |

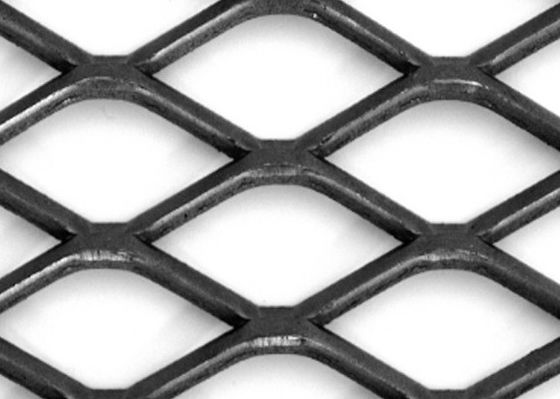

Expanded Metal Mesh for Decoration-E0001

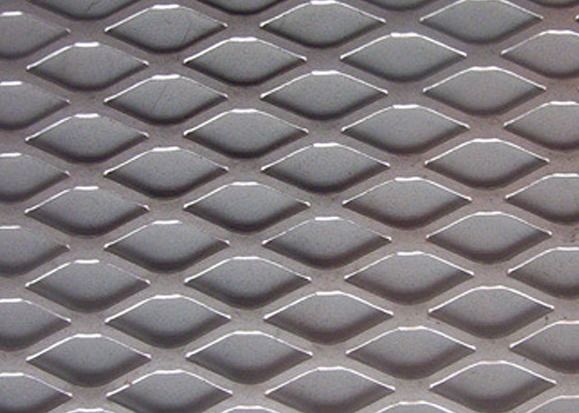

Expanded Metal Mesh for Decoration-E0002

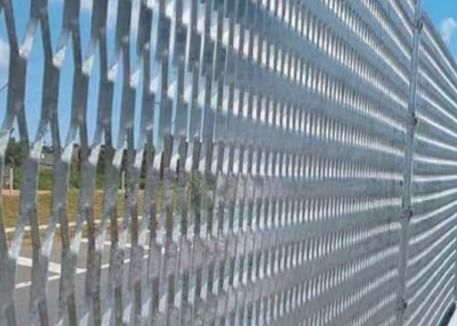

Expanded Metal Mesh for Decoration-E0003

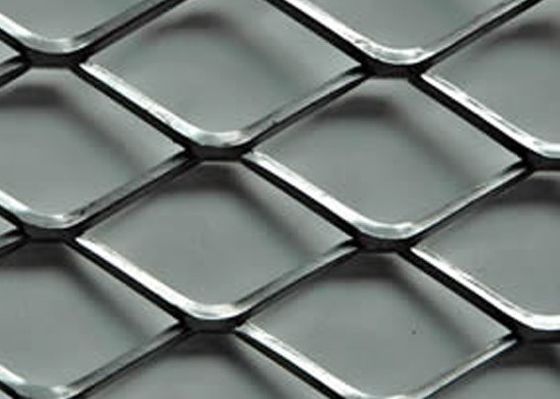

Expanded Metal Mesh for Decoration-E0004
