Product Details:
Payment & Shipping Terms:
|
| Material: | Mild Steel Plate, Stainless Steel Plate, Copper Plate, Aluminum Plate | Pitch: | 30 X 100 Mm |
|---|---|---|---|
| Type: | 25 X 4.0 Mm | Surface Finish: | Galvanized |
| Surface: | Serrated | Size: | 1.8 X 5.8 M |
| High Light: | galvanized grating,galvanised grating |
||

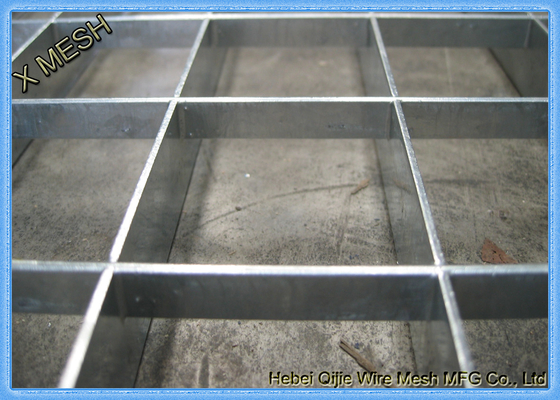

Flat Steel Press-locked Steel Bar Grating for Platform Footpath
Product descriptions
Press-locked steel bar grating made by fixed size flat steel through slotted, pressure lock plug, finish, etc process. At the intersection point of flat steel and horizontal pole, press horizontal pole into loading flat steel, then fixed it. Sometimes the horizontal pole also used flat steel.
It is steel bar according to a certain distance and cross arranged and welded into the middle of a square latice with an iron and steel products . It is mainly used on the industrial platform , flooring , drainge cover , well cover , oil platform , stair tread etc.
Material: High-quality flat steel, stainless steel plate, copper plate, aluminum plate.
Specification:
Size of bearing flat steel: 25x3mm, the center space: 30mm, 40mm, 50mm, 100mm.
Size of horizontal pole: 10x2mm, the center space : 50mm, 100mm.
Specifications of Steel Grating
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width xthickness) | |||||
| 20 x3 | 25 x3 | 32 x3 | 40x 3 | 20 x5 | 25 x5 | |||
| 1 | 30 | 100 | WA203/1 | WA253/1 | WA323/1 | WA403/1 | WA205/1 | WA255/1 |
| 50 | WB203/1 | WB253/1 | WB323/1 | WB403/1 | WB205/1 | WB255/1 | ||
| 2 | 40 | 100 | WA203/2 | WA253/2 | WA323/2 | WA403/2 | WA205/2 | WA255/2 |
| 50 | WB203/2 | WB253/2 | WB323/2 | WB403/2 | WB205/2 | WB255/2 | ||
| 3 | 60 | 50 | WB253/3 | WB323/3 | WB403/3 | WB205/3 | WB255/3 | |
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width xthickness) | |||||
| 32 x5 | 40 x5 | 45 x5 | 50 x5 | 55 x5 | 60 x5 | |||
| 1 | 30 | 100 | WA325/1 | WA405/1 | WA455/1 | WA505/1 | WA555/1 | WA605/1 |
| 50 | WB325/1 | WB405/1 | WB455/1 | WB505/1 | WB555/1 | WB605/1 | ||
| 2 | 40 | 100 | WA325/2 | WA405/2 | WA455/2 | WA505/2 | WA555/2 | WA605/2 |
| 50 | WB325/2 | WB405/2 | WB455/2 | WB505/2 | WB555/2 | WB605/2 | ||
| 3 | 60 | 50 | WA325/3 | WA405/3 | WA455/3 | WA505/3 | WA555/3 | WA605/3 |
Type of press-locked steel bar grating:
Common type: when the steel bearing flat-steel bar is low pressure lock steel mesh plate.
Integral type: Bearing flat-steel and crossbars flat-steel has the same height, cutting depth for bearing flat-steel 1/2 of pressure lock steel mesh plate.
Sunshade type: Load flat steel to open 30 ° or 45 ° chute, flat bar slotted, and then press lock to form grating.
Features: The pressure lock steel case board culvert will bonding steel grid board of high strength, anticorrosive, free maintenance etc so characteristic, alone again combination, uniform precision elegant, harmonious natural light structure, style is refined features.
Advantages
Applications
Standard steel gratings are ideal for platforms, flooring, bridge decking and walkways.
