Monel 400 Woven Metal Netting Mesh Fabric For Chemical Processing Equipment

China Monel 400 Woven Metal Netting Mesh Fabric For Chemical Processing Equipment supplier
Monel 400 Woven Metal Netting Mesh Fabric For Chemical Processing Equipment supplier Monel 400 Woven Metal Netting Mesh Fabric For Chemical Processing Equipment supplier

Large Image :  Monel 400 Woven Metal Netting Mesh Fabric For Chemical Processing Equipment

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-904

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: With wooden box
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 3000 rolls per month
Contact Now
Detailed Product Description
Material: Monel Wire Wire Diameter: 0.4 - 2.8 Mm
Hole Shape: Square Weaving Type: Plain Weave
Technic: Woven Mesh Roll Sizerength: 1.0 X 30 M, 1.2 X 30 M

Monel 400 Wire Mesh for Chemical Processing Equipment





Product descriptions

MONEL alloy 400 exhibits resistance to corrosion by many reducing media.It is also generally more resistant to attack by oxidizing media than higher copper alloys.This versatility makes alloy 400 suitable for service in a variety of environments.

Alloy 400 is widely used in marine applications.While alloy 400 products exhibit very low corrosion rates in flowing seawater, stagnant conditions have been shown to induce crevice and pitting corrosion. Alloy 400 is also resistant to stress corrosion cracking and pitting in most fresh and industrial waters.MONEL alloy 400 offers exceptional resistance to hydrofluoric acid in all concentrations up to the boiling point.It is perhaps the most resistant of all commonly used engineering alloys. Alloy 400 is also resistant to many forms of sulfuric and hydrochloric acids under reducing conditions.



Monel 400 wire mesh/screenChemical Composition, %
C
Mn
S
Si
Ni
Cu
Fe
.30 max
2.00 max
.024 max
.50 max
63.0 min
28.0-34.0
2.50 max

Mechanical Property Requirements


Ultimate Tensile
Yield Strength (0.2% OS)
Elong. in 2 in. or 50mm (or 4D), min.,%
Cold Worked/SR
Min
87 KSi
60 KSi
20B
Min
600 MPa
415 MPa

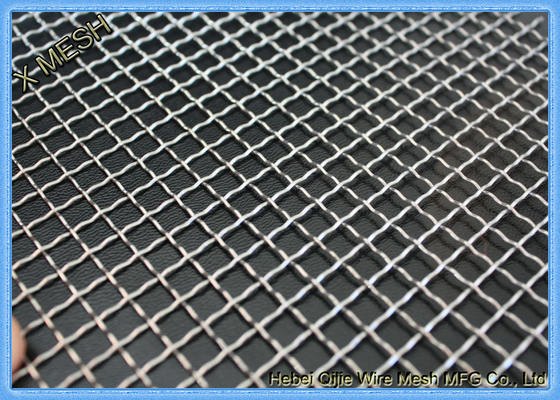

Monel 400 Woven Metal Netting-001

Monel 400 Woven Metal Netting-001

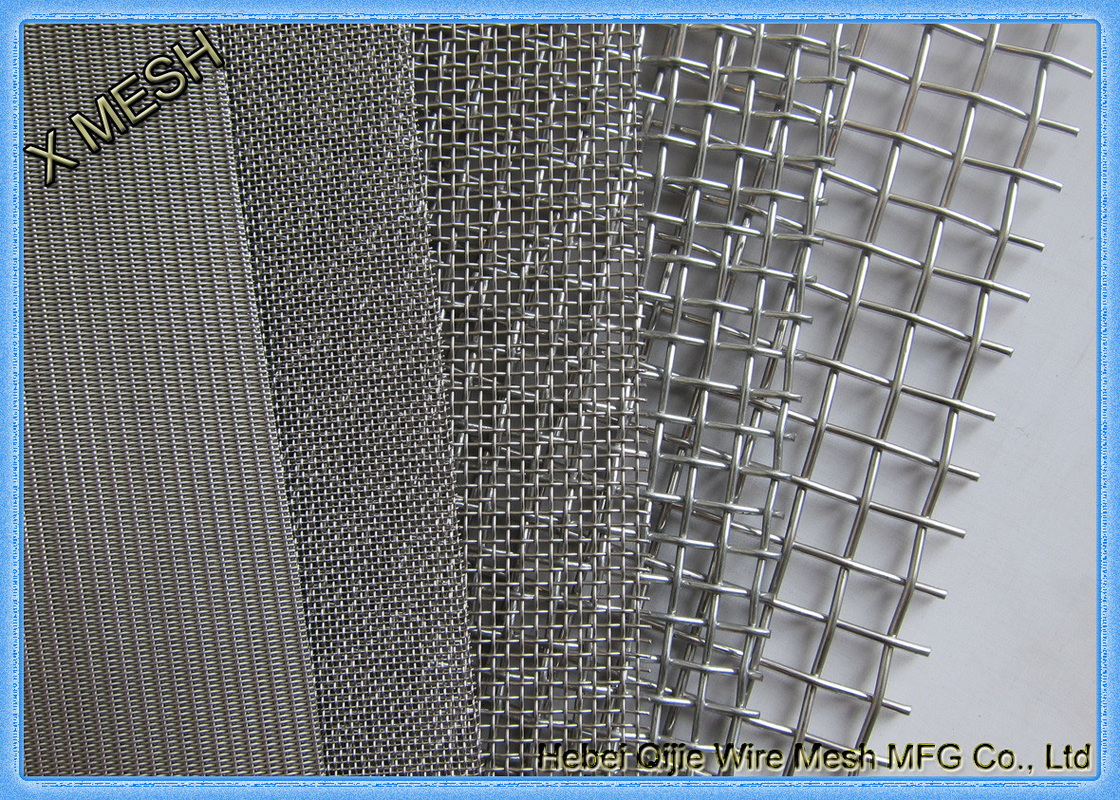

Monel 400 Woven Metal Netting-002

Monel 400 Woven Metal Netting-002



Monel 400 Woven Metal Netting-003

Monel 400 Woven Metal Netting-003



Monel 400 Woven Metal Netting-004

Monel 400 Woven Metal Netting-004
