Hot Dipped Galvanized 9gauge Chain Link Security Fencing

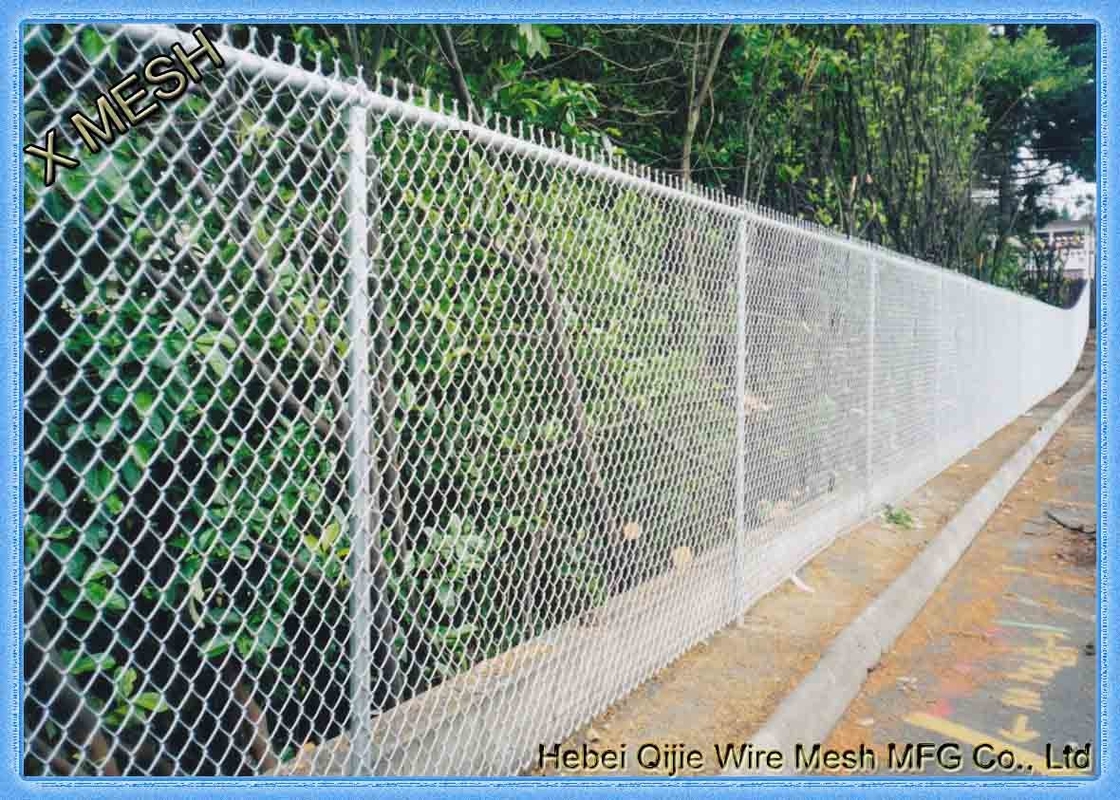

Large Image : Hot Dipped Galvanized 9gauge Chain Link Security Fencing

Product Details:

Place of Origin:	China
Brand Name:	Xmesh
Certification:	SGS
Model Number:	TPCT

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	Pallet
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Material:	Metal Sheet	Length:	15m
Height:	1.2m	Wire Gauge:	9gauge
Mesh Openning:	2x2"
High Light:	chain link fence mesh , chain link fence privacy screen

Hot Dipped Galvanized 9gauge Chain Link Security Fencing

Chain link fence, also referred to as chain-wire fence, cyclone fence, hurricane fence, or diamond mesh fence , is one of the most popular choices of fence for both light residential to heavy commercial fence applications. It is woven by a way that the wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern fence. Chain link fence is most commonly available galvanized which is silver in color. Chain link fence fabric is typically produced in 50' rolls' length(15.24m), and the most popular type is 6, 9, 11 gauge wire with 2x2 inches(50x50mm) mesh size, and it is ideal for industrial and commercial fence applications. The fabric is galvanized with a 1.2 oz.(366 grams) coating meets ASTM A 392-03 Class I and we also offer some sizes with a 2.0 oz.(610 grams) zinc coating meets ASTM A 392 Type I (Class II).

1.Material:low carbon iron wire,galfan coated steel wire, galfan coated iron wire
2.Wire diameter:1.8mm-4mm
3.Aperture:1"-4"
4.Width:0.5-5m
5.Length:0.5-100m
6.Assortments:
>electro galvanized then PVC coated chain link fence
>black annealed iron wire then PVC coated chain link fence
>Stainless steel chain link fence
7.Application:
Extensively used as fences for playground and gardens, super highway, railway, airport, residence, etc. also used in breeding of animals.

Mesh	Hot Dipped					PVC Coated
Mesh	Wire BWG	Wire Dia.(mm)	Weight kg/m2		Roll Dia4' ×50'(mm)	Wire Dia. Before/after	Weight kg/m2		Roll Dia 4'×50'(mm)
1'' (25mm)	12	2.8	3.81	15.5	220	1.6/3.2	3.7	22.7	280
	13	2.4	2.9	12.2	200	2.0/2.6	2.3	15.4	240
	14	2.1	2.3	9.75	180	1.4/2.0	1.2	8.5	220
	16	1.6	1.34	6.4	160	1.0/1.6	0.7	507	200
1.5'' (40mm)	10	3.4	3.7	14.6	280	3.4/4.0	3.9	23.7	290
	11	3.0	3	12.0	250	2.6/3.2	2.4	14.7	280
	12	2.8	2.4	10.0	230	2.0/2.6	1.4	9.4	240
	14	2.1	1.4	6.2	220	1.4/2.0	0.8	5.5	220
2'' (50mm)	8	4.2	4.5	18.4	280	3.4/4.0	3.2	19.6	280
	10	3.4	2.9	11.8	250	2.6/3.2	1.9	12.2	250
	12	2.8	1.9	8.0	230	2.0/2.6	1.2	8.4	230
	14	2.1	1.2	5.4	220	1.4/2.0	0.6	4.4	220
2.25'' (56mm)	8	4.2	3.9	14.8	290	3.4/4.0	2.8	17	280
	10	3.4	2.6	10.5	280	2.6/3.2	1.7	10.8	250
	12	2.8	1.7	7.3	250	2.0/2.6	1.0	7.1	230
	14	2.1	1.0	4.5	220	1.4/2.0	0.55	4.3	220
2.4'' (62.50mm)	8	4.2	3.7	14.3	290	3.4/4.0	2.6	16.4	290
	10	3.4	2.5	10.1	280	2.6/3.2	1.6	10.6	280
	12	2.8	1.63	6.8	250	2.0/2.6	1.0	6.6	250
	14	2.1	1.00	4.6	220	1.4/2.0	0.48	3.85	230
2.5'' (64mm)	8	4.2	3.5	14.8	290	3.4/4.0	2.5	15.4	300
	10	3.4	2.3	9.4	280	2.6/3.2	1.5	9.8	280
	12	2.8	1.6	6.5	250	2.0/2.6	0.9	6.5	250
	14	2.1	0.9	4.2	220	/	/	/	/
3'' (76mm)	8	4.2	3.00	11.7	300	4.4/5.0	3.4	20.6	300
	10	3.4	2.00	8.2	290	3.4/4.0	2.1	13.0	280
	12	2.8	1.3	5.7	280	2.6/3.2	1.3	8.8	250
	14	2.1	0.8	3.8	250	/	/

Hot Dipped Galvanized 9gauge Chain Link Security Fencing 0

Hot Dipped Galvanized 9gauge Chain Link Security Fencing 1

green chain link fence
