2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm

2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm
2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm 2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm 2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm 2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm

Large Image :  2V 3V 3D PVC Powder Coated Curved Metal Fence Welded Wire Mesh Fence 50*200mm

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-515
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: loose packed or with steel pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 10000 pcs one month
Detailed Product Description
Material: Galvanized Steel Core Wire Wire Diameter: 4.0mm, 4.5mm, 5.0mm
Mesh: 50x150mm, 50x200mm Finish: Powder Coated
Color: Green, Black, White, Orange Size: 2.5 X 1.8 M, 2.5 X 2.1 M, 3.0 X 2.0 M
Type: Fencing,Trellis & Gates,Welded Mesh Feature: Easily Assembled,Eco Friendly,Rodent Proof
Frame Material: Metal Pressure Treated Wood Type: Heat Treated
Surface Treatment: Galvanized+PVC Coated Application: Fence Mesh,Garden,Residential
Product Name: 2D Double Wire Fence 868 Mesh Fence Panels Manufacture,Powder Coating Or Hot Dipped Galvanized Wire Mesh Fence Mesh Size: 50x100mm,75x150mm,200mm*50mm / 150mm*50mm/100mm*50mm
Usage: Protection,Garden Decoration,building,Used,Garden Fence/highway/airport Width: 1500mm ~ 3000mm
Length: 2m/2.5m Or According To Your Request
High Light:

curved metal fence panels

,

curved wrought iron fence


2V 3V 3D PVC Coated Curved Welded Wire Mesh Fence 50*200mm
Product descriptions
3D Curved Welded Wire Fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.


Material:
Mesh Size(common):
Wire Diameter: 4/5mm, 5/6mm, 5/5mm
Mesh opening: 50*100mm, 50*200mm, 55*100mm, 55*200mm, 50*150mm
Post Size: (three kinds)
(1)Circular Pipe Post:
Diameter: 48mm, 60mm, 75mm, etc.
Thickness: 1.0mm, 1.5mm, 2.0mm, etc.
(2)Square Pipe Post:
Diameter: 50mm, 60mm, 80mm, etc
Thickness: 1.0mm; 1.5mm; 2.0mm, etc
(3)Peach-style Pipe Post
Height & Width of the Fence(common): 1.8mx3.0m; 2.0mx3.0m
Surface treatment: Hot galvanized; Electro galvanized; PE coated and PVC coated
Colors, 6005 dark green, grey, white, yellow, lawn green and red. Same colors are used for panels and posts commonly, while different colors can also be used to form a contrast.


  • Excellent corrosion resistance, anti-aging and anti-aging property.
  • Sunshine resistance and weather-proof.
  • With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
  • Have four horizontal bending rebar therefore it will strengthen the fence network.
  • Not only has a beautiful outlook but also has a durable structure.
  • Can withstand outdoor exposure.
  • Easy and quick to transport and install.
  • Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
  • Bright, reflective colors stand out in day or night
  • Easy transportation, save time and labor cost.

3D Curved Welded Wire Fence Applications:

  • Mainly used in highway and railway bridge on both sides of the protection zone.
  • Airports, ports, terminals security.
  • Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
  • Guest Houses, hotels, supermarkets and entertainment protective.

Specifications of 3D Curved Welded Wire Fence

Height Above
Ground (m)
Panel Size
(mm)
Mesh Size
(mm)
Numbers of
Beams
Post Diameter
(mm)
1.21230x250050x100/50x200250x70
1.81830x250050x100/50x200350x70
2.02030x250050x100/50x200470x100
We can also manufacture the weld mesh fencing as per your dimension of the specification


Perimeter Coated Welded Wire Fence Steel-patern


 Post install of 3d curved mesh fence:



3d peach post
Peach post

square post
square post

Rectangular post
Rectangular post

round post
Round Post


Features of 3D security fence

  • High strength.
  • Corrosion and rust resistance.
  • Weather resistance.
  • Various colors for choice.
  • Durable and long service life.
  • Different installation types.
  • Can suit different installation environments.
  • Prevent intruders from entering the unwanted areas.

Range of application:

Enclosing:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)

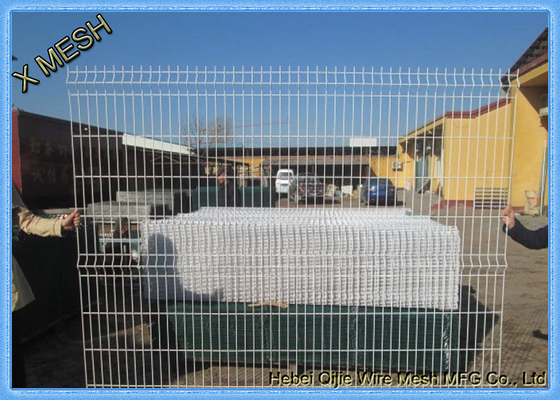

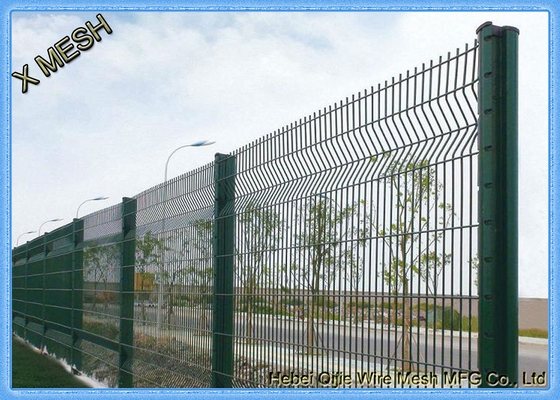

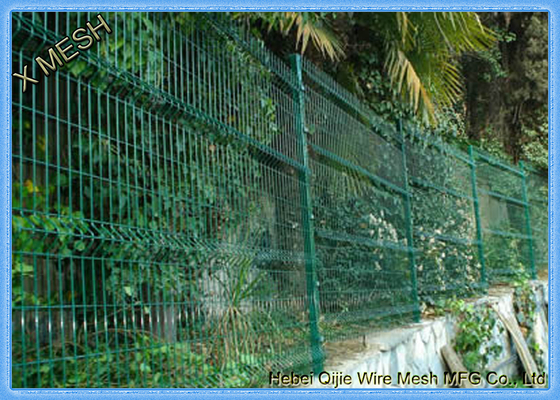

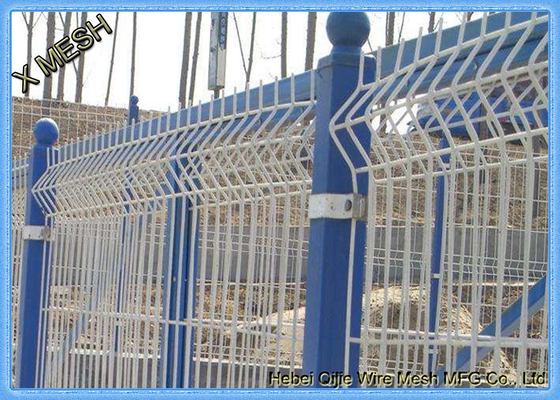

3D Curved Welded Wire Fence-C0001
3D Curved Welded Wire Fence-C0001

3D Curved Welded Wire Fence-C0002
3D Curved Welded Wire Fence-C0002

3D Curved Welded Wire Fence-C00033D Curved Welded Wire Fence-C0003

3D Curved Welded Wire Fence-C0004
3D Curved Welded Wire Fence-C0004




Perimeter Coated Welded Wire Fence Steel-P0005
Perimeter Coated Welded Wire Fence Steel-P0005

Perimeter Coated Welded Wire Fence Steel-P0006
Perimeter Coated Welded Wire Fence Steel-P0006
