| Material: | Galvanized Steel Core Wire | Wire Diameter: | 4.0mm, 4.5mm, 5.0mm |
|---|---|---|---|
| Mesh: | 50x150mm, 50x200mm | Finish: | Powder Coated |
| Color: | Green, Black, White, Orange | Size: | 2.5 X 1.8 M, 2.5 X 2.1 M, 3.0 X 2.0 M |
| Type: | Fencing,Trellis & Gates,Welded Mesh | Feature: | Easily Assembled,Eco Friendly,Rodent Proof |
| Frame Material: | Metal | Pressure Treated Wood Type: | Heat Treated |
| Surface Treatment: | Galvanized+PVC Coated | Application: | Fence Mesh,Garden,Residential |
| Product Name: | 2D Double Wire Fence 868 Mesh Fence Panels Manufacture,Powder Coating Or Hot Dipped Galvanized Wire Mesh Fence | Mesh Size: | 50x100mm,75x150mm,200mm*50mm / 150mm*50mm/100mm*50mm |
| Usage: | Protection,Garden Decoration,building,Used,Garden Fence/highway/airport | Width: | 1500mm ~ 3000mm |
| Length: | 2m/2.5m Or According To Your Request | ||
| High Light: | curved wrought iron fence panels,curved metal fence panels |
||

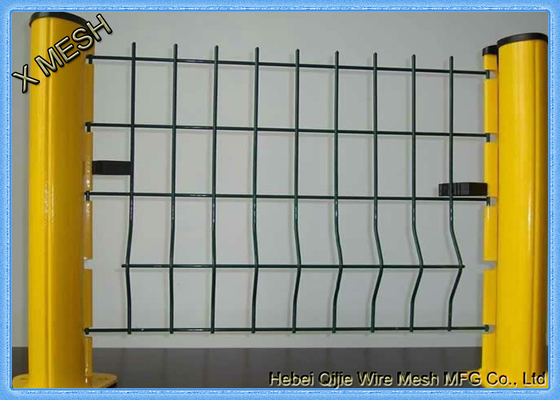

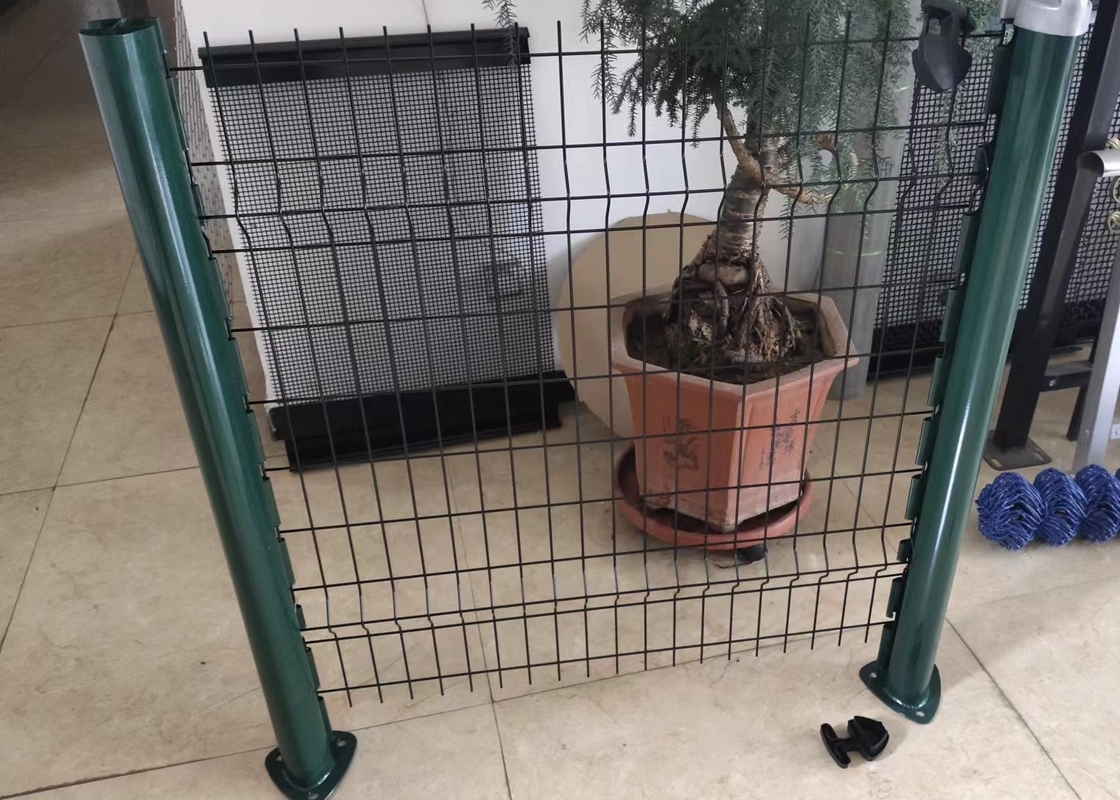

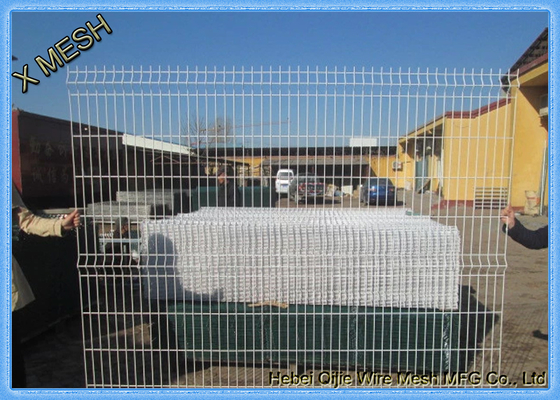

Commercial Welded Wire Mesh Fence 3D Models 3D Curved Fencing
Product descriptions
3D Curved Welded Wire Fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.
Frame(mm): 20*30*1.5
Mesh plastic(mm): 0.7-0.8
After mesh plastic(mm): 6.8
Overall bending: 30
Bending length(mm): 300
Column size(mm): 48*2*2200
Column spacing(mm): 3000
Column embedded(mm): 250-300
Specification of Security Wire Mesh Fence
Spotted by 4mm diameter quality mild steel wire
Opening (mm)75x150
LxW (mm)1800x3000
Frame (mm)20x30x1.5
PVC coating thickness (mm)0.7-0.8
With coating (mm)4.8
Support post (mm)diameter 48x2x2200
Base for fence(mm)500x300x300
Process: Weaving and welding; Fence length 2m, 2.5m as standard
3D Curved Welded Wire Fence Applications:
Specifications of 3D Curved Welded Wire Fence
| Height Above Ground (m) |
Panel Size (mm) |
Mesh Size (mm) |
Numbers of Beams |
Post Diameter (mm) |
| 1.2 | 1230x2500 | 50x100/50x200 | 2 | 50x70 |
| 1.8 | 1830x2500 | 50x100/50x200 | 3 | 50x70 |
| 2.0 | 2030x2500 | 50x100/50x200 | 4 | 70x100 |
| We can also manufacture the weld mesh fencing as per your dimension of the specification | ||||
|
|
|
|
|
|
Features of 3D security fence
Range of application:
Enclosing:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)
|
|
|
|
|
|

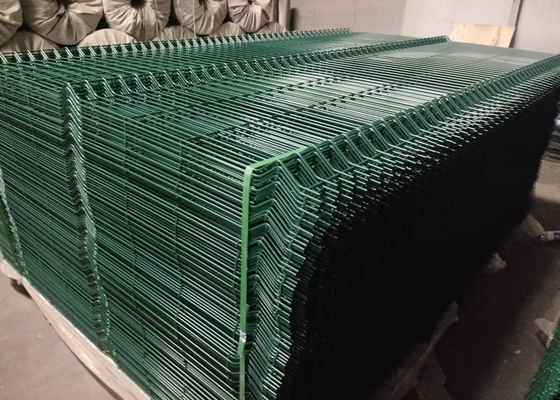

green Coated Welded curved mesh fence panels
Perimeter Coated Welded Wire Fence Steel-P0006
hot dipped galvanized curved mesh fence panel
hot diped galvanized curved mesh fence panel
double swing gate for curved mesh fence

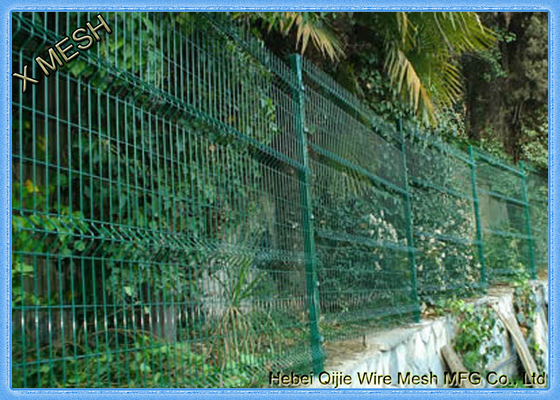

green colored curved mesh fence panels

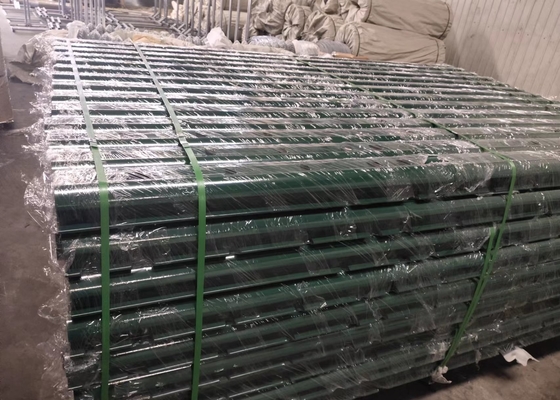

green colored peach post
