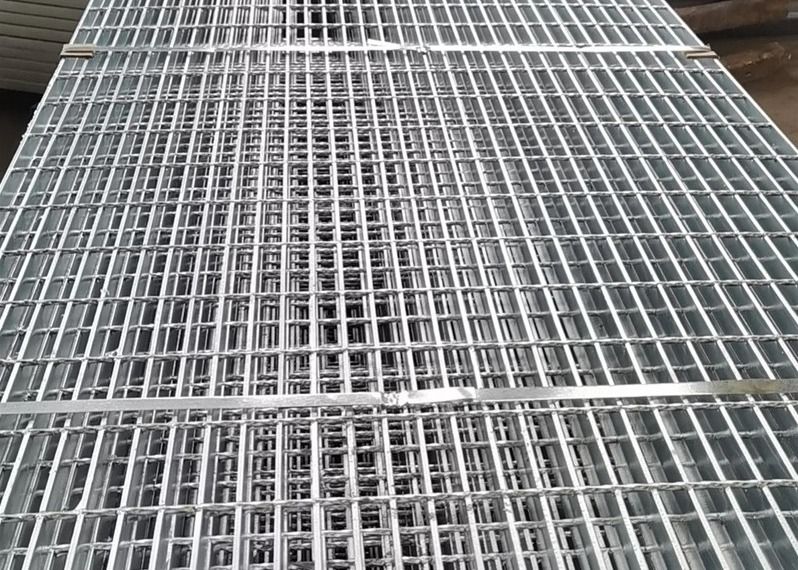

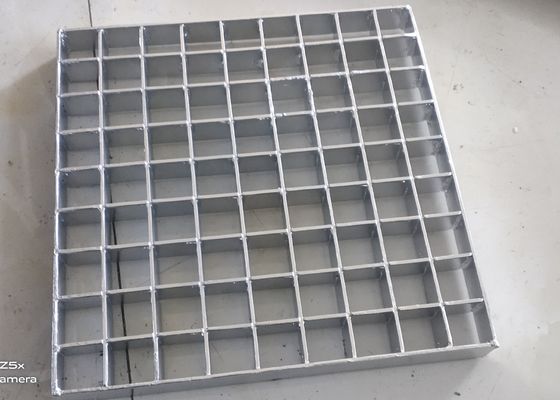

Press Locked Galvanized Steel Grating Expanded Metal Mesh 40 X 100 Mm Pitch

Press Locked Galvanized Steel Grating Expanded Metal Mesh 40 X 100 Mm Pitch
Press Locked Galvanized Steel Grating Expanded Metal Mesh 40 X 100 Mm Pitch

Large Image :  Press Locked Galvanized Steel Grating Expanded Metal Mesh 40 X 100 Mm Pitch

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-711
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: Steel palletized
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 5000 pcs one month
Detailed Product Description
Material: Mild Steel Sheet Pitch: 40 X 100 Mm
Type: 25 X 3.0 Mm Surface Finish: Galvanized
Surface: Serrated Size: 1.8 X 6.0 M
Products Name: Press Locked Steel Grating
High Light:

galvanised grating

,

galvanised steel grating

hot dipped galvanized Press Locked Steel Grating for platforms


Product description

Press-locked grating is also called pressure locked grating or press-locked steel bar grating. Basically, the press-locked grating have the same load capacity with the welded steel bar grating. The difference between press-locked grating and welded steel bar grating are joint connection technology and cross bars.

Cross bars of welded steel bar grating are twisted square rods and the bearing bars are rectangular bars or I type bars. Both the bearing bars and cross bars of press-locked grating are rectangular bars.



Compared to welded steel bar grating, which is produced through resistance-welding process, the press-locked grating is constructed with the two close-tolerance slotted bars bonded together by tremendous hydraulic pressure. This production can let press-locked grating be a permanent locking.



Press-locked grating and swage-locked grating has excellent lateral stiffness, which can be used in some special applications. And the serrated surface is available for press-locked grating.



Specification:



  • Materials: low carbon steel and stainless steel.
    Surface treatment: galvanized, painted or powder coated.
    Surface type: smooth surface and serrated surface
    Serrated surface type:
    PR/S1: Trapezoidal teeth on the bearing bar.
    PR/S2: Trapezoidal tooth both on the bearing bar and cross bar with the highest non-slip performance. In this three types. it is most popular.
    PR/S3: The non-slip tooth is applied to the connect components. It has the lowest non-slip performance.

Bearing bars and cross bars are notched and have same height.

Bearing bars and cross bars are notched and have same height.

Bearing bars are higher than the cross bars,bearing bars are notched.

Bearing bars are higher than the cross bars,bearing bars are notched.

Bearing bars are higher than the cross

Bearing bars are higher than the cross



Notch on the bearing bars are at a angle of 30° or 45°

Notch on the bearing bars are at a angle of 30° or 45°



High strength and high bearing capacity:

  • Non-slip, anti-corrosion, not easy to deform.
    High safety performance.
    Do not accumulate rain, snow and dust.
    Simple and beautiful appearance.
    Easy to install and remove to extend the lifespan.
    Applications of serrated welded steel grating
  • Serrated welded steel grating is widely used as platforms, stair treads, walkaways and floors in industrial, civil and commercial buildings.




Grating Standardizations:

Countries National Standards for Grating Materials Galvanizing Standards
China YB/T 4001.1-2007 GB 700-88 GB/T13912-2002
America ANSI/NAAMM(MBG531-00) ASTM(A36) ASTM(A123)
Britain BS4592-1995 BS4360(43A ) BS729
Australia AS1657-1992 AS3679 AS1650



No Item Description
1 Bearing bar 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
2 Bear bar pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm.
US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
3 Cross bar pitch 38,50,76,100,101.6mm
4 Material Q235,A36,SS304
5 Surface treatment Black, hot dipped galvanising, paint
6 Standard China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985



Feature:

Appearance: simple lines. Silver exterior, modern trends.
Best drainage: leakage area of 83.3%, more than double the cast iron.
Hot-dip galvanizing: rust-proof and strong, maintenance and replacement.
Security design: box with hinged lid and connection, security, safe, easy to open.
Saving investment: large span. When overloaded, the lowest ratio of iron and saves replacement costs stolen, then crushed.
High strength: strength and toughness is much higher than cast iron, can be used for terminals, airports and other large span and heavy load environment.
Specifications and more: meet different environment and loading requirement. Span, the desired size and shape.


Serrated welded steel grating -STG0001

Press Locked Steel Grating -STG0001


Press Locked Galvanized Steel Grating Expanded Metal Mesh 40 X 100 Mm Pitch 5

Serrated welded steel grating -STG0002



Press Locked Galvanized Steel Grating Expanded Metal Mesh 40 X 100 Mm Pitch 6

Serrated welded steel grating -STG0003



Welded Steel Bar Grating-STG0004

Welded Steel Bar Grating-STG0004
