Good Strength Stainless Steel Woven Wire Mesh For Window Screens And Filter

China Good Strength Stainless Steel Woven Wire Mesh For Window Screens And Filter supplier
Good Strength Stainless Steel Woven Wire Mesh For Window Screens And Filter supplier Good Strength Stainless Steel Woven Wire Mesh For Window Screens And Filter supplier Good Strength Stainless Steel Woven Wire Mesh For Window Screens And Filter supplier Good Strength Stainless Steel Woven Wire Mesh For Window Screens And Filter supplier

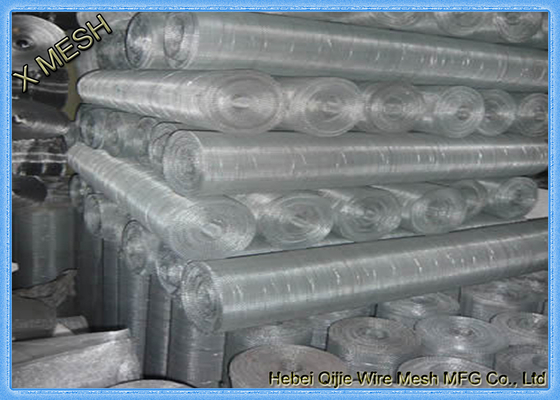

Large Image :  Good Strength Stainless Steel Woven Wire Mesh For Window Screens And Filter

Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: aluminum crimped wire mesh

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Packaging Details: pallets or wood case
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 1000 meter per week
Contact Now
Detailed Product Description
Wire Diameter: 2mm Mesh Openning: 1/2" X 1/2"
Size: 1.20m Width X 100m Length Name: Aluminum Crimped Wire Mesh
Wire Materials:: Stainless Steel Wire General Use:: Screening In Mine

Aluminum mesh for window screens and filter





Aluminum wire mesh is plain square weave mesh sheet from high quality aluminum wire. It is corrosion resistant like stainless steel mesh, but much lighter and softer than stainless steel.

Aluminum wire mesh sheet is easy bent and formed, with little spring back. Our aluminum mesh has a wide range of mesh sizes and wire diameters, from 4.00mm wire diameter 0.58 mesh to 0.055mm wire diameter 200 mesh. 16 mesh and 18 mesh are ideal used for window or porch screens to keep common insects out of the room.



Our aluminum wire mesh sheet is usually delivered in rolls, you can cut it to your desired size. It is easy to cut, the heavy duty mesh from 2 mesh to 10 mesh cut with tin snips, and if you want to cut a 16 mesh sheet, you just need a common scissors.



Aluminum Wire mesh sheet Key Features

  • Good strength, weldability, acid and alkali resistant.
  • Significant resistance for atmospheric corrosion.
  • High electrical conductivity.
  • Low melting point 1220 Fahrenheit.
  • Lighter weight than steel, copper, and brass.
  • Easy to use for forming and bending.
  • Costs less than stainless steel.
  • Maintenance free.

Specification of aluminum and alloy woven wire mesh:

  • Material: Aluminum Wire, Aluminum Alloy Wire, Magnalium Alloy Wire.
  • Type of weaving: plain weave.
  • Packing: water-proof paper, wooden box, metal box, wooden pallet, metal pallet.
  • Aluminum wire mesh is available in 0.58 mesh to 200 mesh, detail specifications the following table:
Aluminum woven wire mesh sheet, plain weave
Wire Diameter (mm) Aperture (mm) Mesh Length (m) Width (m)
4.00 40 0.58 30 0.5 - 1.5
4.00 30 0.75 30 0.5 - 1.5
3.2 25 0.87 30 0.5 - 1.5
3.2 20 1.1 30 0.5 - 1.5
2.6 20 1.12 30 0.5 - 1.5
2.0 12 1.8 30 0.5 - 1.5
1.8 7 3 30 0.5 - 1.5
1.8 6 3.25 30 0.5 - 1.5
1.6 7 3 30 0.5 - 1.5
1.6 3 5.5 30 0.5 - 1.5
1.4 4 4.7 30 0.5 - 1.5
1.2 8 2.7 30 0.5 - 1.5
1.2 6 3.5 30 0.5 - 1.5
1.0 5 4.25 30 0.5 - 1.5
0.8 2 9 30 0.5 - 1.5
0.5 0.9 18 30 0.5 - 1.5
0.4 0.87 20 50 0.5 - 1.5
0.35 0.80 22 50 0.5 - 1.5
0.3 0.76 24 50 0.5 - 1.5
0.25 0.73 26 50 0.5 - 1.5
0.25 0.60 30 50 0.5 - 1.5
0.25 0.39 40 50 0.5 - 1.5
0.2 0.31 50 50 0.5 - 1.5
0.1 0.11 120 50 0.5 - 1.5
0.055 0.072 200 50 0.5 - 1.5



Application:

  • Aluminum wire mesh sheets with 16 mesh, 18 mesh and 20 mesh are widely used for window or door insect screens or air vent in homes, offices, hospital, hotels to prevent insects and bugs from entering.
  • Aluminum fine mesh from 50 mesh to 200 mesh is usually used for filter disc

aluminum wire mesh-001

aluminum wire mesh-001

aluminum wire mesh-002

aluminum wire mesh-002

aluminum wire mesh-003

aluminum wire mesh-003
