Construction BWG12 Bright Black Iron Annealed Soft Wire Low Carbon Steel

Construction BWG12 Bright Black Iron Annealed Soft Wire Low Carbon Steel
Construction BWG12 Bright Black Iron Annealed Soft Wire Low Carbon Steel Construction BWG12 Bright Black Iron Annealed Soft Wire Low Carbon Steel

Large Image :  Construction BWG12 Bright Black Iron Annealed Soft Wire Low Carbon Steel

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 2.0mm 3.0mm
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: plastic film inside, weaven cloth outside
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 25ton per week
Detailed Product Description
Material: Iron Wire Surface Treatment: Black Annealed Wire
Wire Diameter: 2.0mm 3.0mm Weight: 20kg/coils
Surface Treatment: Black,Galvanized Or PVC Coated Type: Loop Tie Wire,Flat Wire,Electro Low Carbon Hot Dipped 3mm Galvanized Steel Wire
Function: Binding Wire,Baling Wire Wire Gauge: BWG 6 # -- BWG 32 #,
Galvanized Technique: Electro Galvanized,Hot Dipped Galvanized,Hot Dip Galvanized Material: Low Carbon Steel Q195,iron,Q235,SAE1006
Tensile Strength: 350-550N/mm2,350-550MPA,350N/mm2 Min.,35-70kg/mm2,30kg-70kg/square Miliimeter Application: Construction Binding Wire,binding Wire Or Woven Wire Mesh,Building,Construction
Color: Grey Or Silver,galvanized,green Package: 5kg--500 Kg/coil Common,Plastic + Hessian
Elongation: MORE THAN 10,10%-25%
High Light:

annealed binding wire

,

galvanized tie wire



construction BWG12 bright black iron annealed soft wire



We produce the annealed wire with high-quality low carbon raw materials through wire drawing, anneal process. Its soft and has good stretching resistance. The finished products are smeared with slushing oil. So they are not apt to rust. We can tie up the products according to customers requirements, ranged from1 to 50 kg each bundle.



Soft annealed wire, also known as annealed wire, offers excellent flexibility and softness through the process of oxygen free annealing. Soft annealed wire is mostly used in woven wire mesh or as wire tie.


Iron wire can be processed into cut wire or U type wire for binding uses.



We offer two kinds of annealed wire, bright annealed and black annealed wire.



Black annealed wire gets its name from its plain black color.

Wire Materials: Carbon steel wire.

Uses: Black annealed wire is mainly processed into coil wire, spool wire or big package wire.

Or further straightened and cut into cut wire and U type wire.

Annealed wire is used as tie wire or baling wire in building, parks and daily binding.

Packing: Spools, Coils.

Wire Diameters: Similar to galvanized iron wire, from 5mm to 0.15mm (wire gauge 6# to 38#).



Detailed introduction



Standard Gauge: from 5# --38# (0.17mm-4.5mm)
Tensile Strength: 35-55kg/mm2
Elongation rate: 10%-25%

Characteristics and Application: Strong flexibility plasticity and a wide rang of uses such as daily binding construction use, industrial use handcraft making net etc.



Commom packing: 0.5kg -1000kgs/coil, plastic film inside then wrapped with white or other color PVC weaving bag or hessian cloth outside.



Wire Gauge SWG in mm BWG in mm In Metric System mm
8# 4.06 4.19 4.00
9# 3.66 3.76 -
10# 3.25 3.40 3.50
11# 2.95 3.05 3.00
12# 2.64 2.77 2.80
13# 2.34 2.41 2.50
14# 2.03 2.11 -
15# 1.83 1.83 1.80
16# 1.63 1.65 1.65
17# 1.42 1.47 1.40
18# 1.22 1.25 1.20
19# 1.02 1.07 1.00
20# 0.91 0.89 0.90
21# 0.81 0.813 0.80
22# 0.71 0.711 0.70
23# to 34# also available for galvanized iron wire



Black Anneald Wire
Wire Diameter Strength Packing Weight Application
0.16mm-0.6mm 30-40kg Coil or spools 2-100kgs Daily binding construction Industrial use handcraft making net etc.
0.6mm-5.0mm 30-40kg Big package 100-800kgs
0.16mm-0.6mm 60-70kg Coils or spool 2-100kgs
0.6mm-5.0mm 60-70kg Big package 100-800kgs

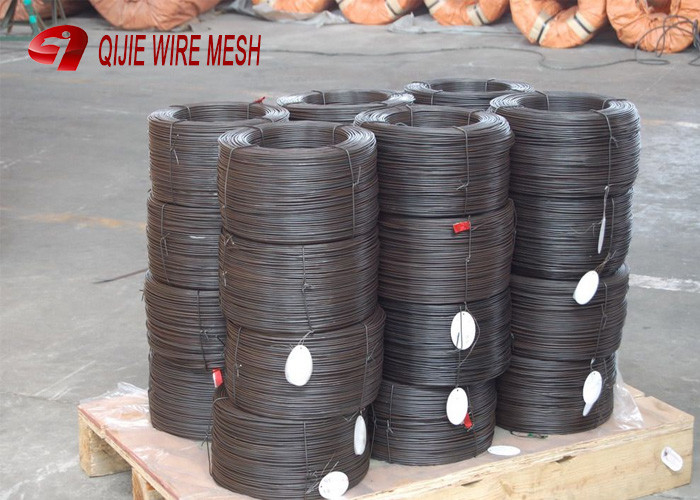

Product Packaging:Coil wire, bobbins wire,spool wire,cut wire in different.



1.Plastic inside and gunny outside

2.Plastic inside and weaving plastic outside

3.Plastic inside and water-proof paper outside

4.In carton box,then on enclosed plywood pallet boxes

5.Or as your requirement



black wire black wire
black annealed wire black tie wire
black annealed wire black annealed wire
