Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire | Technique: | Woven |
|---|---|---|---|
| Type: | Decorative Wire Mesh | Color: | Sliver |
| Product Name: | Stainless Steel Woven Metal Mesh | Feature: | Corrosion Resistance,beautiful,Easily Assembled |
| Length: | Customized | Name: | Decorative Wire Mesh,metal Mesh Curtain |
| Size: | As Your Requirement | ||
| High Light: | metal mesh panels,metal mesh fabric |
||
Cable Mesh by Qijie made from stainless steel wires, and has skin-like characteristics.
It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.
Wire rope black oxide mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ;
| Features: | Transparent And Flexible | Product Name: | Zoo Wire Mesh |
| Application: | Animal Enclosure , Aviary Netting | Hole Size: | Range From 20 Mm To 100 Mm Or Bigger |
| Wire Thickness: | From 1.2 Mm To 4.0 Mm | Mesh Type: | Ferruled Or Knotted |
| Sheet Size: | Cuatom-made In Width And Length |
Common Specifications:
|
Hole Size |
1.2MM(3/64) |
1.6MM(1/16) |
2.0MM(5/64) |
2.4MM(3/32) |
3.2MM(1/8) |
| 20 x 35mm | QJ-1235 | ||||
| 25 x 42mm | QJ -1225 | QJ -1625 | |||
| 30 x 52mm | QJ -1230 | QJ -1630 | QJ -2030 | ||
| 35 x 60mm | QJ -1235 | QJ -1635 | QJ -2035 | ||
| 38 x 66mm | QJ -1238 | QJ -1638 | QJ -2038 | QJ -2438 | |
| 40 x 69mm | QJ -1240 | QJ -1640 | QJ -2040 | QJ -2440 | QJ -3040 |
| 50 x 86mm | QJ -1250 | QJ -1650 | QJ -2050 | QJ -2450 | QJ -3050 |
| 60 x 104mm | QJ -1260 | QJ -1660 | QJ -2060 | QJ -2460 | QJ -3060 |
| 70 x 120mm | QJ -1270 | QJ -1670 | QJ -2070 | QJ -2470 | QJ -3070 |
| 76 x 131mm | QJ -1276 | QJ -1676 | QJ -2076 | QJ -2476 | QJ -3076 |
| 80 x 138mm | QJ -1280 | QJ -1680 | QJ -2080 | QJ -2480 | QJ -3080 |
| 90 x 154mm | QJ -1290 | QJ -1690 | QJ -2090 | QJ -2490 | QJ -3090 |
| 100 x 173mm | QJ -12100 | QJ -16100 | QJ -20100 | QJ -24100 | QJ -30100 |
| 120 x 206mm | QJ -12120 | QJ -16120 | QJ -20120 | QJ -24120 | QJ -30120 |
Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |

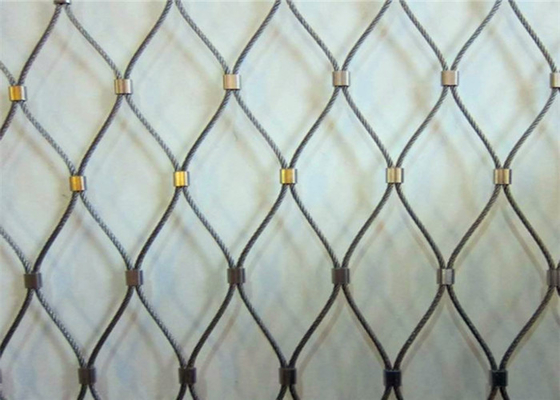

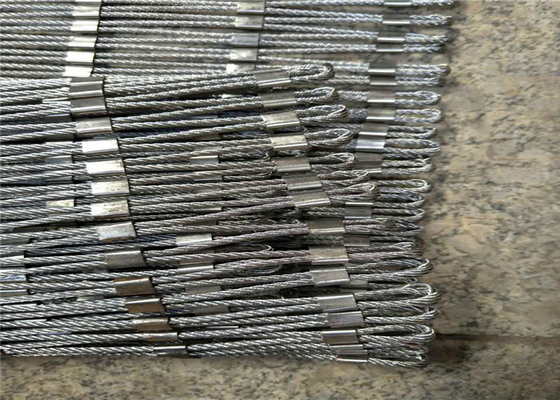

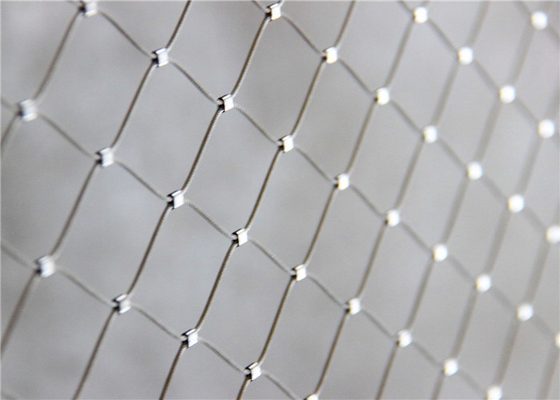

Picture show
Features:
Unique design idea, X tend mesh style
Flexible, elegant, discreet, filigreed, multifunctional.
Corrosion resistant,allows strong airflow.
Fully pro-enviroment, recyclable, no toxic and flammable.
Easy installation
Once steel cable mesh is using, maintenance free, don't ask any special cleaning or coating.
Long use life
RFQ Of Wire Rope Mesh Fencing :
1. Advantage of Wire Rope Net
Unique design. 3D-structure, Flexible, Light weight, . Corrosion resistant, Maintenaance free. 10 years rust guaranteed.
2. 304 or 316 stainless steel?
- Generally the 304 stainless steel is cheaper than 316 stainless steel, to flexible wire rope mesh, the main cost is process cost, so the cost of mesh between 304 and 316 almost same. we suggest to choose 316 stainless steel.
3. What is the different with cable and opening ?
- The heavier cable or smaller opening, the cost more expensive.
4. Is it safety ?
- Full mesh meet test under EN1263.1.2014
5. How to install the mesh !
- Full of our piece is manufactured with special edge design. install by yourself easily.
