Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width

China Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width supplier
Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width supplier Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width supplier Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width supplier

Large Image :  Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width

Product Details:

Place of Origin: CHINA
Brand Name: XMESH
Certification: ISO9001:2008,SGS
Model Number: MFG-1008

Payment & Shipping Terms:

Minimum Order Quantity: 100 Sqm
Price: USD $6.99-$45.20
Packaging Details: Plastic film and pallet
Delivery Time: 10-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Sqm/per day
Contact Now
Detailed Product Description
Material: Stainless Steel 304/low Carbon Steel Type: Twisted
Wire Gauge: 12Gauge-27Gauge Roll Width: 600-2000mm
Roll Length: 30m/50m Hole Type: Hexagon
Hole Aperture: 1/2" , 1" , 2" , 1-1/2" , 1-1/4" , 4" Name: Galvanised Chicken Wire Mesh



Hex Netting Stainless Steel/Galvanized Chicken Wire 22 Ga. 48"x150' Width Refinery Vessels Pipe Mesh



Product Highlight

Hex mesh is a popular and cost effective fencing product, suitable for many uses in both D.I.Y and industrial situations. Compared with galvanized chicken mesh, stainless steel chicken mesh has higher cost yet longer service life and high grade appearance. Hex netting is useful in outdoor and industrial applications. It holds insulation and refractory materials support onto boilers, pipes and refinery vessels. It may be made into light animal barriers. Popular names include boiler mesh, stainless chicken wire.

Type 304 Stainless Steel

- 22 Ga. 24" x 150' with 1" Hex mesh

- 22 Ga. 48" x 150' with 1" Hex mesh

Galvanized Steel

- 20 Ga. 24" x 150' with 1" Hex mesh

- 20 Ga. 48" x 150' with 1" Hex mesh

Weaving Type:straight twist, reverse twist, double-direction twist.

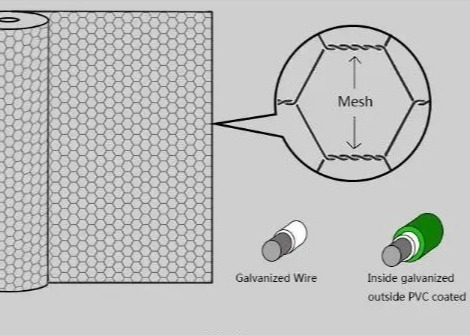

Surface Treatment:

  • stainless steel wire
  • electro galvanized after weaving
  • hot dipped galvanized after weaving
  • PVC coated after weaving

Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width

Product Features

1. Corrosion and rust resistance.
2. Oxidation resistance and good tensile strength.
3. Uniform mesh size and flat mesh surface.
4. Galvanized /pvc coated for longer life and low costs.
5. Easy to handle and cut.

6. Uniform sound abatement.

Product Specification

Hex netting chicken mesh has a wide range of widths, accompanied by a variety of hexagonal hole sizes and a number of different lengths.

Wire Diameter Mesh Weight
SWG MM INCH MM

KGS/M2

22 0.71 1/2 12.7 0.52
23 0.61 3/4 19.05 0.29
24 0.56 3/4 19.05 0.23
25 0.50 3/4 19.05 0.19
18 1.2 1 25.4 0.86
19 1.0 1 25.4 0.65
20 0.9 1 25.4 0.50
21 0.81 1-1/4 31.75 0.34
22 0.71 1-1/4 31.75 0.25
17 1.4 1-1/2 38 0.79
18 1.2 1-1/2 38 0.62
19 1.0 1-1/2 38 0.43
19 1.0 2 50 0.32
20 0.9 2 50 0.25
21 0.8 2 50 0.20
22 0.71 2 50 0.15

Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width

Product using field

1. To fabricate insulating material.

2. In the industrial sector as a coating.

3. Breeders of birds and animals.
4. In some constructions can be used as support frieze.
5. Cages for fishing lobsters and crabs.

Application

Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width

Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width

Package&Loading

Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width

Stainless Steel Galvanised Chicken Wire Mesh 22 Ga 48 Inch X150 Inch Width

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
