Product Details:
Payment & Shipping Terms:
|
| Material: | Steel | Surface Treatment: | Hot Dipped Galvanized |
|---|---|---|---|
| Use: | Chain Link Fence Fitting | ||
| High Light: | hdg chain link fence loop cap,chain link fence post loop caps,60mm chain link fence loop cap |
||

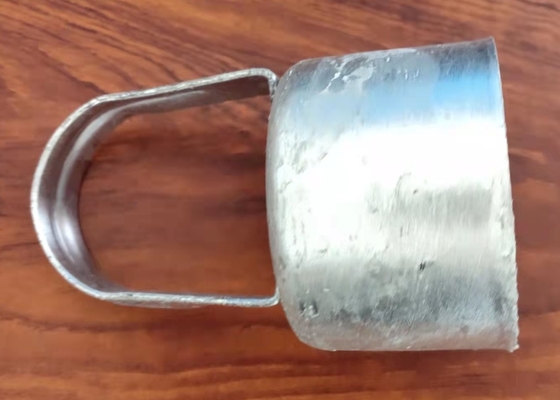

Hot Dipped Galvanized Loop Cap 60mm

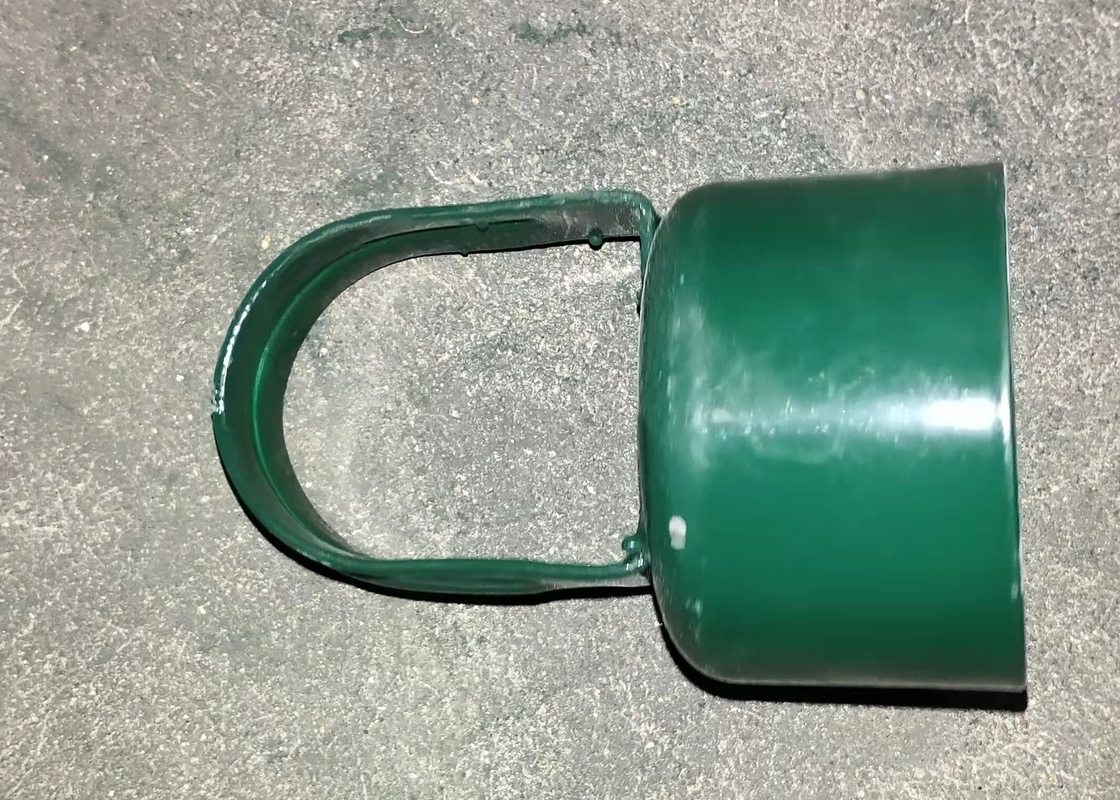

Loop caps are used for the top rail and line post protection. Usually, it is made of aluminum material in a residential application, while galvanized pressed steel for commercial areas. The post size can be 1-5/8″, 2″, 2-1/2″, 3″, 3-1/2″, and 4″ which will accept round top rail of 1-3/8″ and 1-5/8″, carriage bolt size 5/16 x 1 1/4″ Also, the loop caps can be powder coated black, brown, and green.
√ 1-5/8 in. Line Post Eye Top
√ 1-7/8 in. x 1-3/8 in. Aluminum Line Post Eye Top
√ 1-5/8″ x 1-3/8″ Aluminum Line Post Eye Top
√ 2″ x 1-3/8″ Galvanized Line Post Eye Top
√ 2″ x 1-5/8″ Galvanized Line Post Eye Top
√ 2-1/2″ x 1-5/8″ Galvanized Line Post Eye Top
√ 3″ x 1-5/8″ Galvanized Line Post Eye Top
| SIZE(INCH) | THK. IN GAUGE | WEIGHT(INKGS.) | PCS./BOX OR BAG | BOX/BAG PER PALLET |
|---|---|---|---|---|
| 15/8 x 15/8 | 14 | 0.150 | 100 | 50 |
| 2 x 15/8 | 14 | 0.240 | 100 | 50 |
| 21/2 x 15/8 | 14 | 0.275 | 100 | 50 |
| 3 x 15/8 | 14 | 0.290 | 50 | 50 |
| 15/8 x 15/8 | 16 | 0.120 | 100 | 50 |
| 2 x 15/8 | 16 | 0.192 | 100 | 50 |
| 21/2 x 15/8 | 16 | 0.220 | 100 | 50 |
| 3 x 15/8 | 16 | 0.232 | 50 | 50 |
Rail End Cup is used to connect the top rail and post with brace bands usually. It is made of aluminum material in a residential application, while galvanized pressed steel for commercial areas. The post size can be 1-3/8″, 1-5/8″, 2″, and 2-1/2″ rails, with carriage bolt size 5/16 x 1 1/4″. Also, the combo rail end caps can be powder coated black, brown, and green.
√ Chain Link 1 5/8″ Brace Rail End Cup – End Rail (Pressed Steel)
√ Chain Link 2″ [1 7/8″ OD] Brace Rail End Cup – End Rail (Pressed Steel)
√ Chain Link 1 5/8″ [1 5/8″ OD] Half-Moon Rail End Cup – End Rail (Pressed Steel)
√ Chain Link 2″ [1 7/8″ OD] Half-Moon Rail End Cup – End Rail (Pressed Steel)
√ Chain Link 2″ [1 7/8″ OD] Offset Rail End Cup – End Rail (Pressed Steel)
