Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 304 | Thickness: | 0.5mm |
|---|---|---|---|
| Hole Diameter: | 0.8mm | Hole Distance: | 1.8mm |
| Use: | Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, And Industrial & Urban Effluent Treatment | ||
| High Light: | 304 stainless steel perforated metal mesh,filtration stainless steel perforated metal mesh,ss304 decorative perforated metal mesh |
||

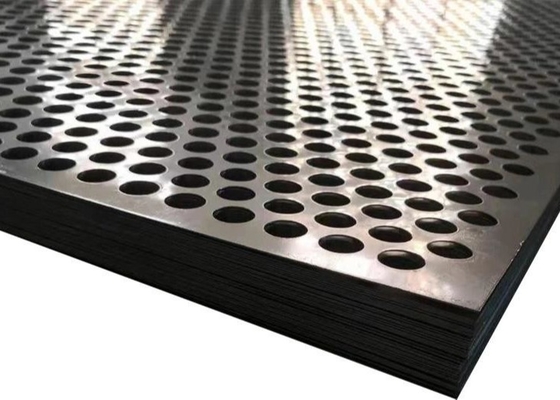

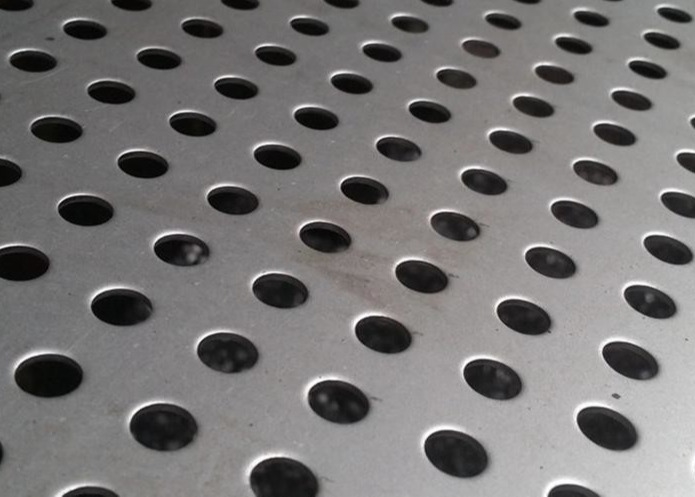

Stainless Steel Perforated Metal Mesh For Filtration Decorative Mesh
Perforated Metal Mesh Roll /Sheet
Perforated plate or perforated screen, is a metal plate that is punched or punched manually or mechanically using CNC technology or in some cases laser cutting to create different hole sizes, shapes and patterns.
Material
Aluminum perforation: light weight for use in many aerospace applications
Stainless steel perforation: used in corrosion resistant applications
Brass perforation: easy to work with and spark resistant
Titanium perforation, Nickel perforation and alloy steel perforation.
Perforated Metal Hole Patterns
Standard Round Holes Perforations
Straight Line Round Perforations
Optional Round Perforation
Square Staggered Perforations
Straight Line Square Perforations
Hexagonal Staggered perforations
Ornamental Perforations
Side Staggered slots
Straight line rectangular
End Staggered Slots
Plate material |
Thickness of metal(mm ) | Hole Dia. (mm) |
Pitch (mm) |
Sheet Width(m) |
Porosity (%) |
Weight (kg/m2) |
|
| Rolling plate |
0.2 | 6 | 2 | 1 | 44 | 0.88 | |
| 0.35 | 5 | 4 | 1 | 24 | 2 | ||
| 0.45 | 6 | 3 | 1 | 35 | 2.5 | ||
| 0.8 | 3 | 3 | 1 | 19.6 | 3 | ||
Flat plate |
0.5 | 1 | 1 | 1 | 19.6 | 3.14 | |
| 0.55 | 1.1 | 2.2 | 1 | 22.67 | 3.411 | ||
| 0.55 | 1.5 | 2.8 | 1 | 26.03 | 3.268 | ||
| 0.8 | 1.5 | 1.5 | 1 | 19.6 | 5 | ||
| 0.8 | 2 | 3.4 | 1 | 30.78 | 4.465 | ||
| 1.5 | 2 | 2 | 1 | 19.6 | 9.4 | ||
| 1.5 | 5 | 8.0 | 1 | 35.39 | 7.843 | ||
| 3 | 5 | 16 | 1 | 19.6 | 18.8 | ||
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 19.6 | 3.14 | |
| 0.8 | 1.5 | 1.5 | 1 | 19.6 | 5 | ||
| 1 | 2 | 2 | 1 | 19.6 | 6.28 | ||
| 2 | 5 | 16 | 1 | 19.6 | 6.28 | ||
| Aluminum plate |
0.5 | 1 | 1 | 1 | 19.6 | 1.08 | |
| 0.8 | 3 | 3 | 1 | 19.6 | 1.72 | ||
| 1.6 | 2 | 2 | 1 | 19.6 | 3.24 | ||
| 3 | 4 | 16 | 1 | 19.6 | 4.23 | ||
| We can do according to customer! | |||||||
Our Services:
1.Support OEM.
2.Sample: Valid
3.Delivery time: The shortest of production time.
If have stocks, the shipping within 3 days.
4.Payment: T/T, L/C, Western Union.
5.The mode of transportation: Sea shipping, air shipping,International express.
